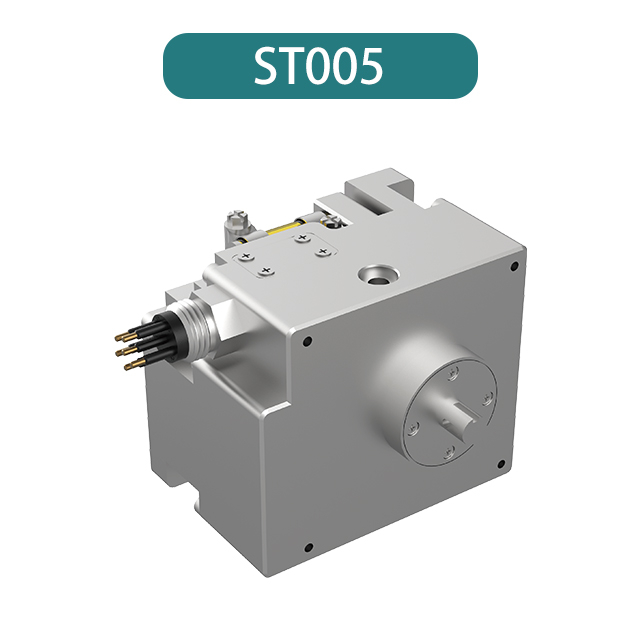

ST005 Steering Engine

Hydrocean is experienced in subsea propulsion. We developed more than 40 standard products including Ducted thrusters, Rim-driven thrusters, AUV thrusters, Subsea electric steering gear, Subsea electric push rod, AUV power tail segment, etc., which can meet most of the needs of underwater vehicles. Welcome to contact us, talk to us about your AUV and ROV thruster selection.

Power:
20W
Voltage:
15-36V
Weight air/water:
3.2-3.4kg/2.5-2.7kg
Torque rated/max:
5Nm/7Nm
RPM:
20°/s
Dimension:
103*94*89mm


Availability:



Inquire

Features

Steering Engine ST005 Features

line

● An operating environment of greater depth

● A power-off self-locking function

● Dual fail-safe of mechanical limit and electronic limit

● RS485, RS422 and CAN communication control modes are optional; and users can use software commands to customize communication addresses and terminal resistance values of products.

● With built-in functions of overheating protection, current-limiting protection and stalling protection, users can reset protection functions by virtue of program commands.

● Two dimensions for selection

Parameters

Steering Engine ST005 Parameters

line

Technical Parameters

RPM / Torque

20°/s

5Nm (Max 7Nm)

Power / Voltage

20W

15~36VDC

Control / RPM mode

①PWM

②CAN

③RS485/RS422

Auxiliary Functions

①Off-position self-locking (standard)

②Off-position memory(optional)

③Electronic limit (optional)

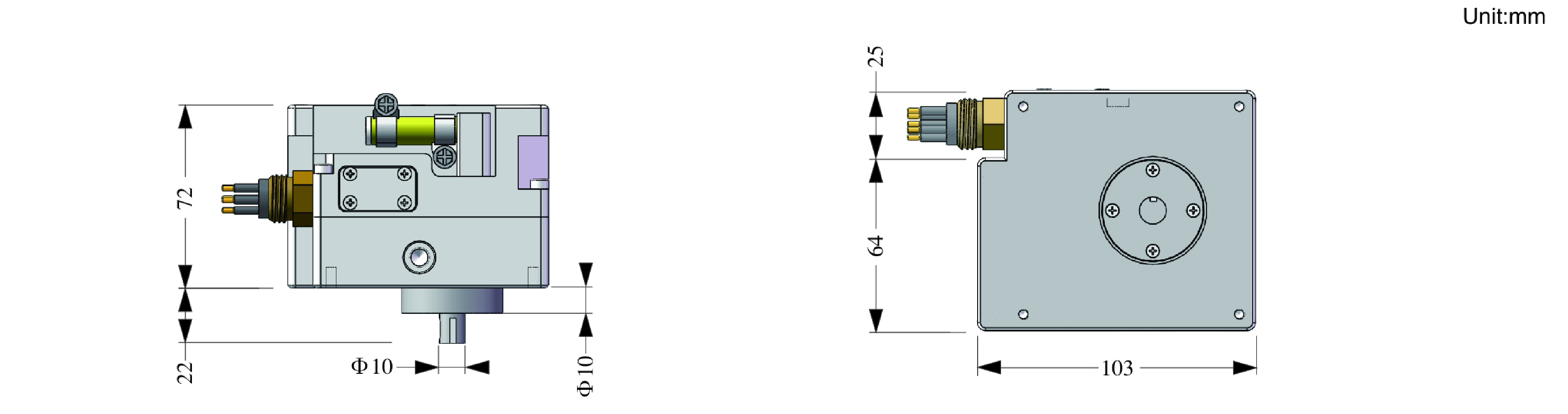

Dimension

Length 103*94*89mm

Notes:Dimensions of the connector are excluded

Housing	Environment	Driving	Pressure	Depth Rating	Weight in air & water	Connector model
Titanium alloy	Seawater	Built-in	Shell	0~1200m	3.4kg & 2.7kg	15~36VDC(Micro 8-core)
Titanium Alloy	Seawater	Built-in	Shell	0~1200m	3.2kg & 2.5kg	15~36VDC(Micro 8-core)
