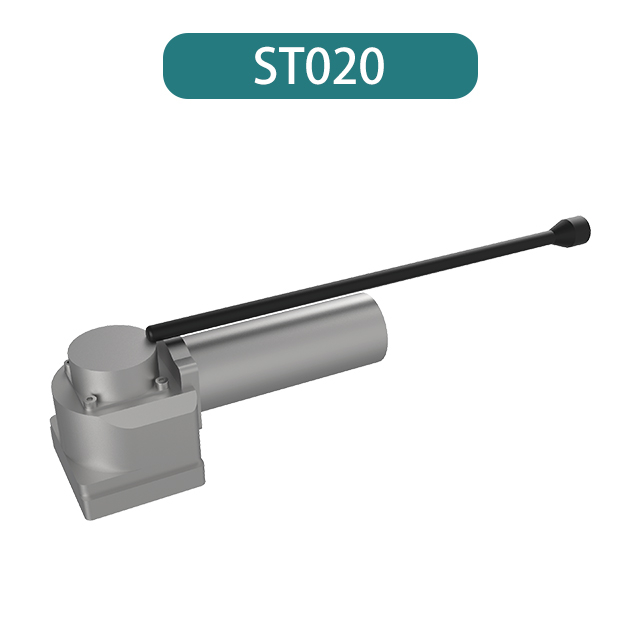

ST020 Steering Engine

Hydrocean is experienced in subsea propulsion. We developed more than 40 standard products including Ducted thrusters, Rim-driven thrusters, AUV thrusters, Subsea electric steering gear, Subsea electric push rod, AUV power tail segment, etc., which can meet most of the needs of underwater vehicles. Welcome to contact us, talk to us about your AUV and ROV thruster selection.

Power:
40W
Voltage:
24V
Weight air/water:
1.2-1.3kg/1.0kg
Torque rated/max:
20Nm/28Nm
RPM:
60°/s
Dimension:
75*60*154mm


Availability:



Inquire

Features

Steering Engine ST020 Features

line

● An operating environment of greater depth

● A power-off self-locking function

● Dual fail-safe of mechanical limit and electronic limit

● RS485, RS422 and CAN communication control modes are optional; and users can use software commands to customize communication addresses and terminal resistance values of products.

● With built-in functions of overheating protection, current-limiting protection and stalling protection, users can reset protection functions by virtue of program commands.

● Two dimensions for selection

Parameters

Steering Engine ST020 Parameters

line

Technical Parameters

RPM / Torque

60°/s

20Nm (Max 28Nm)

Power / Voltage

40W

24VDC

Control / RPM mode

①PWM

②CAN

③RS485/RS422

Auxiliary Functions

①Off-position self-locking (standard)

②Off-position memory(optional)

③Electronic limit (optional)

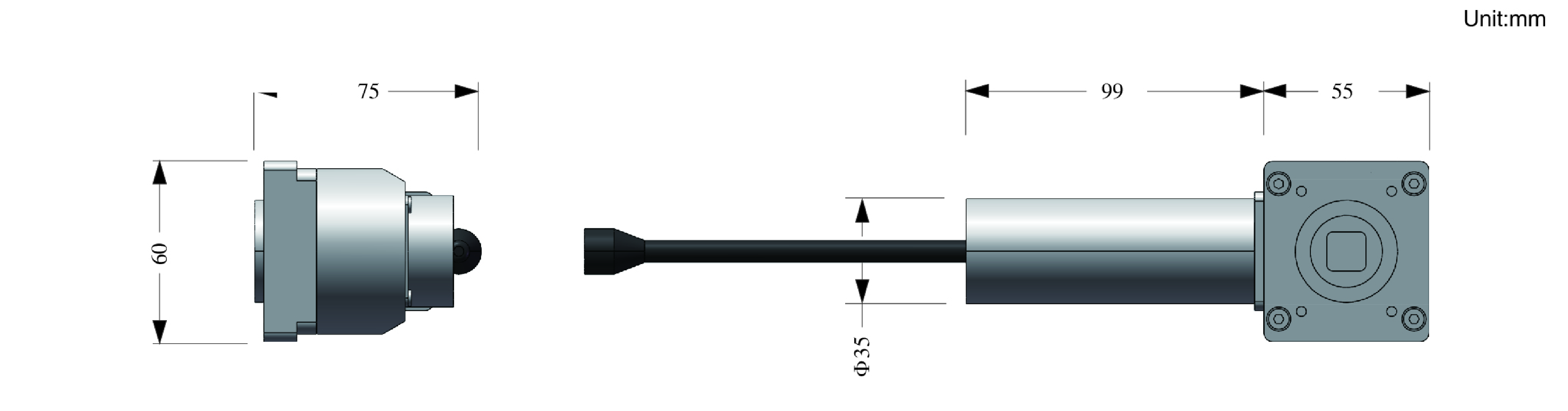

Dimension

Length 75*60*154mm

Notes:Dimensions of the connector are excluded

Housing	Environment	Driving	Pressure	Depth Rating	Weight in air & water	Connector model（Detailed to 106 page）
Aluminium	Freshwater	Built-in	Shell	0~1200m	1.3kg & 1.0kg	24VDC(Micro 8-core)
Aluminium	Seawater	Built-in	non pressure	Not waterproof	1.0kg & None	24VDC(Micro 8-core)
