Description

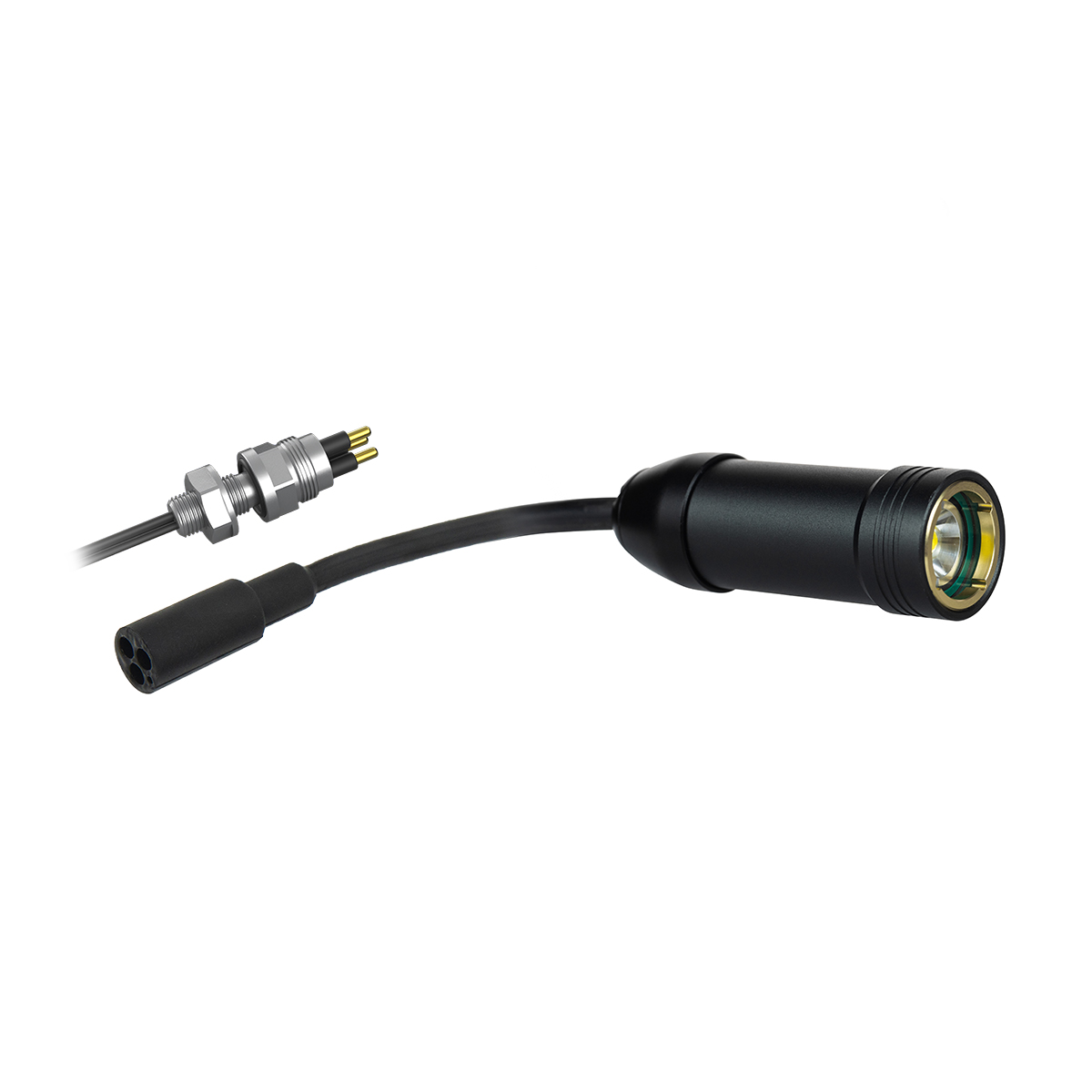

● This light is a micro underwater light with compact size and reliable performance. It is used for underwater robot or other underwater applications. The way of tail outlet can prevent excessive bending of the cable. With the special waterproof structure inside, the water depth can withstand pressure up to 1000 meters. PWM signal control with forced lighting mode. It has overheating protection.
Features
 | Tail cable protection |
| Aluminium alloy casing |
| Overheating protection |
| Mandatory lighting mode, PWM control |
| High strength replaceable glass |

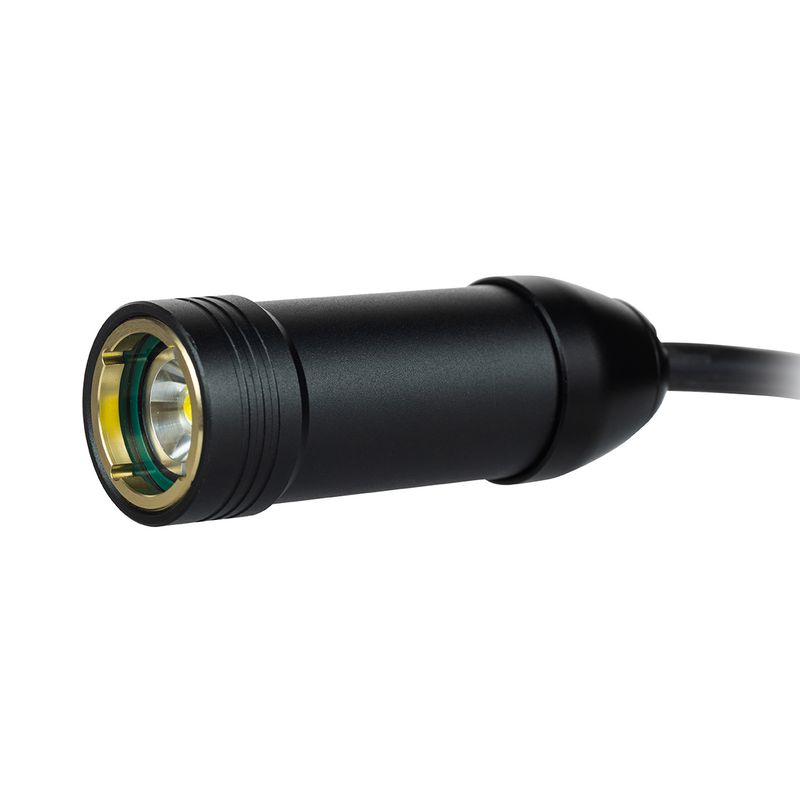

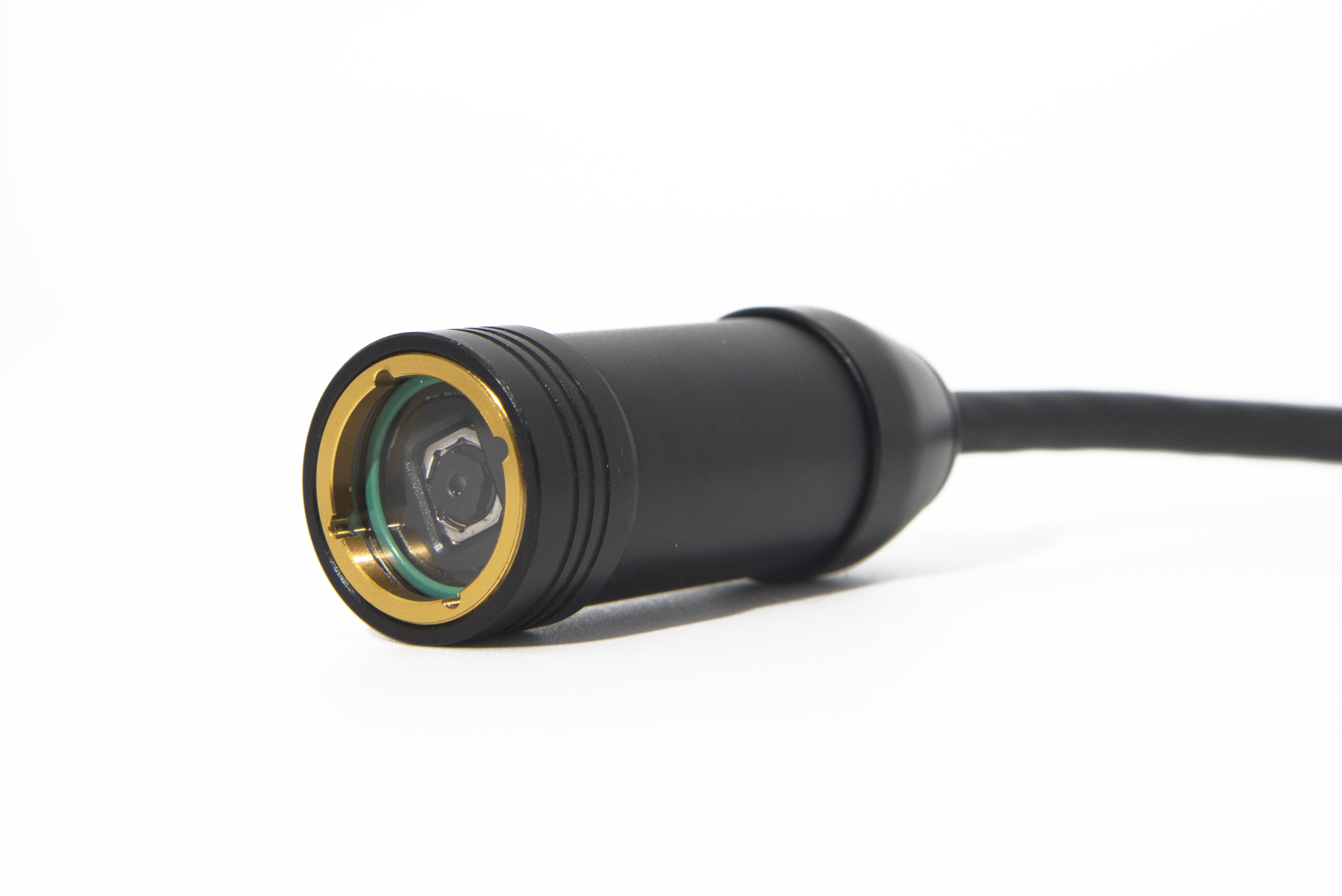

Front view

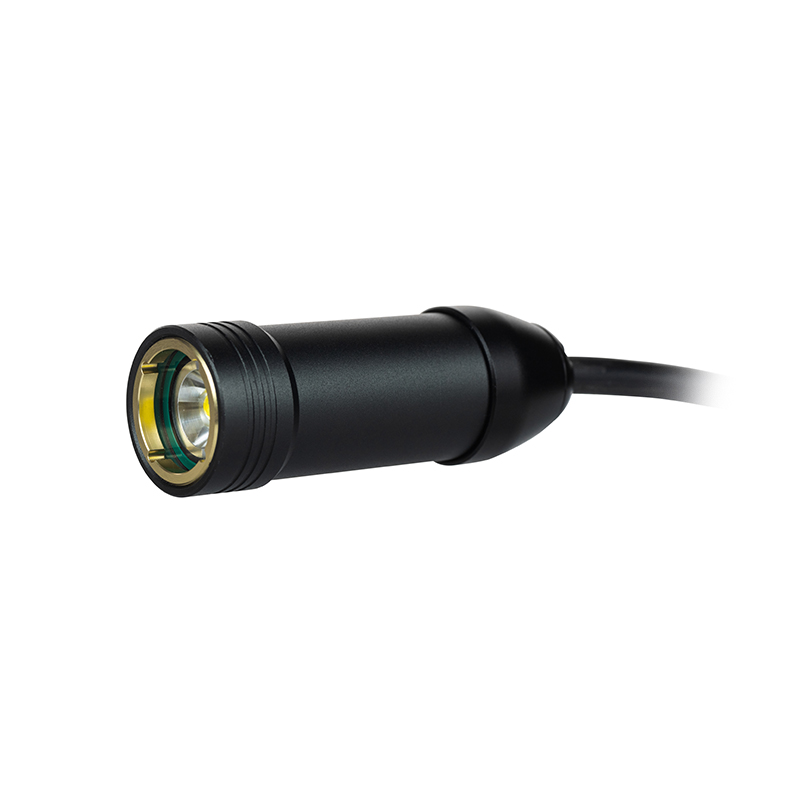

Side view

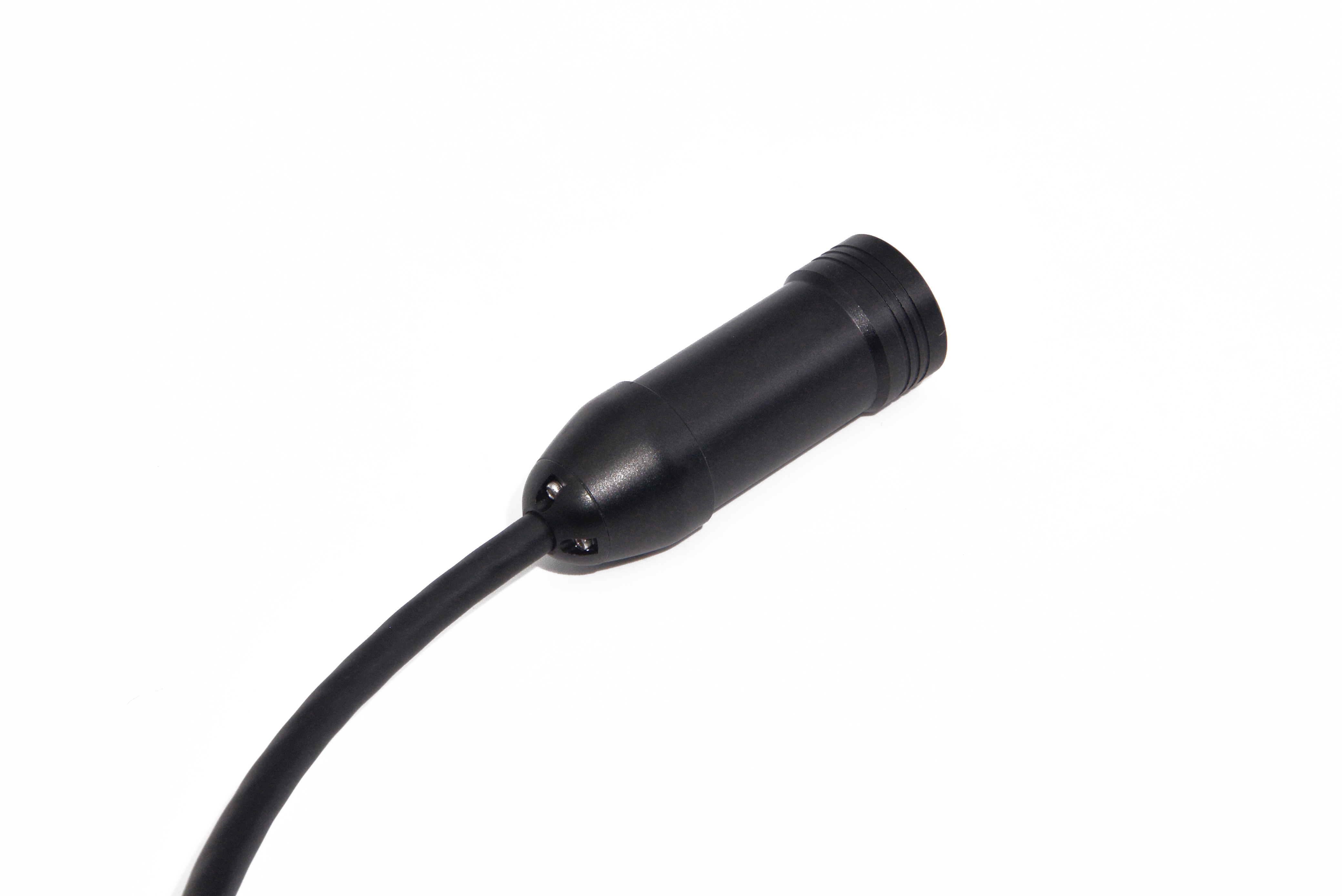

Back view
Specification
| Overheat Protection | The heat dissipation of the underwater lights is through the shell contact with the water. If the LED is lit in the air for a long time, when the operating temperature of the lamp exceeds 80℃, the output brightness of the lamp will be reduced, and the brightness will be restored when the temperature drops. | |||
| Forced Lighting Mode | When the signal line is short-circuited with the power supply, the underwater lighting will output at its maximum brightness. | |||
| Maximum Depth | 1000 meters | Supply Voltage | 12-28V | |
| PWM Logic Voltage | 3.3-5V | Power | 15W (Max) | |
| Dimming Method | With PWM dimming, continuously input | PWM Dimming Range | 1100us(off)-1900us(brightest) | |
| PWM signal | ||||
| Cable Outer Diameter | 5.4mm | Wire Core | 3X20AWG | |

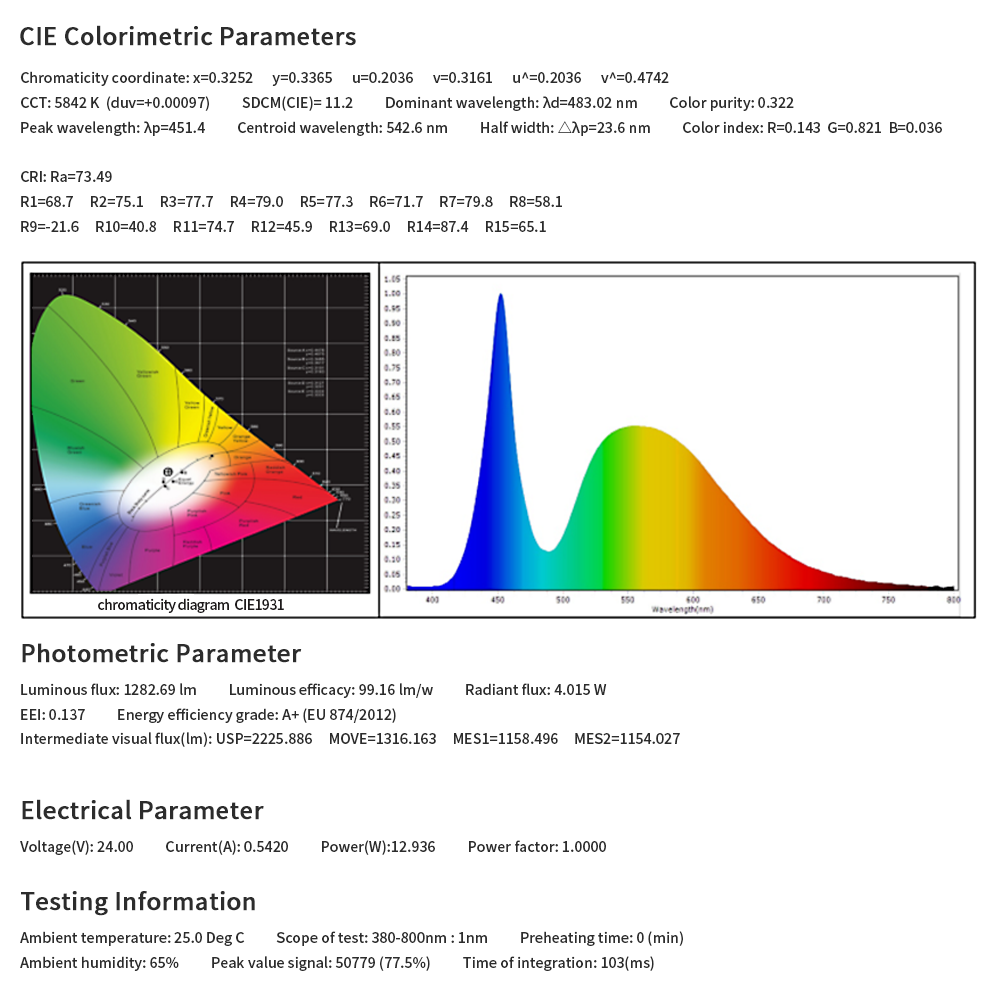

| Maximum Brightness | 1300 Lumens | Color Temperature | 5700K | |
| Wiring Definition | Red: Power | |||
| Black: Ground | ||||
| Yellow: Signal | ||||

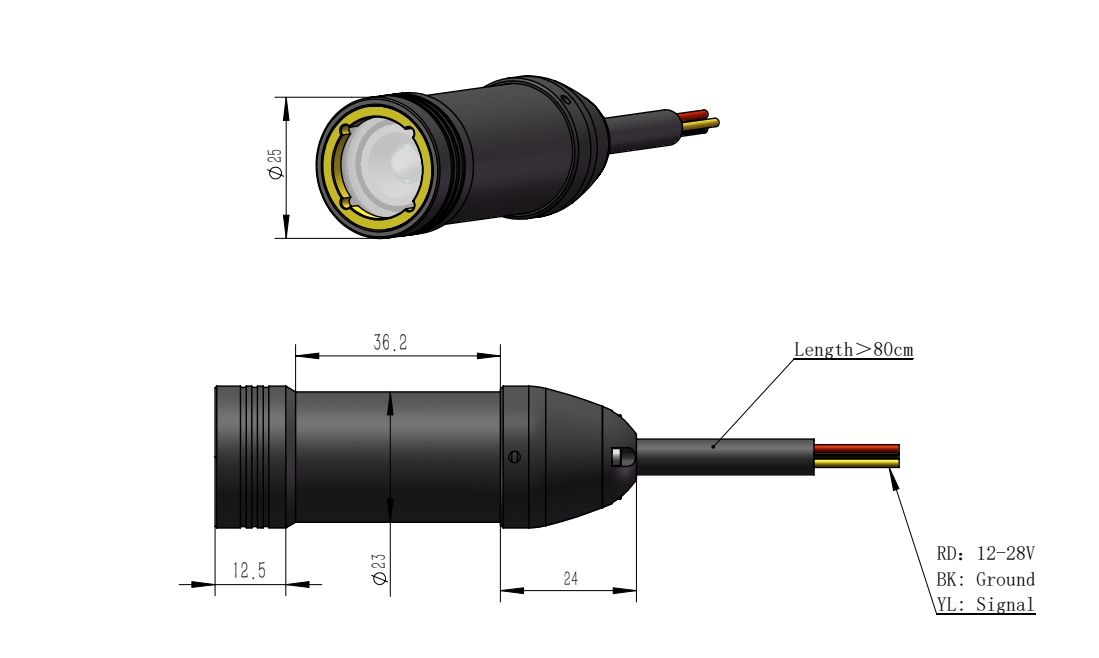

Dimension

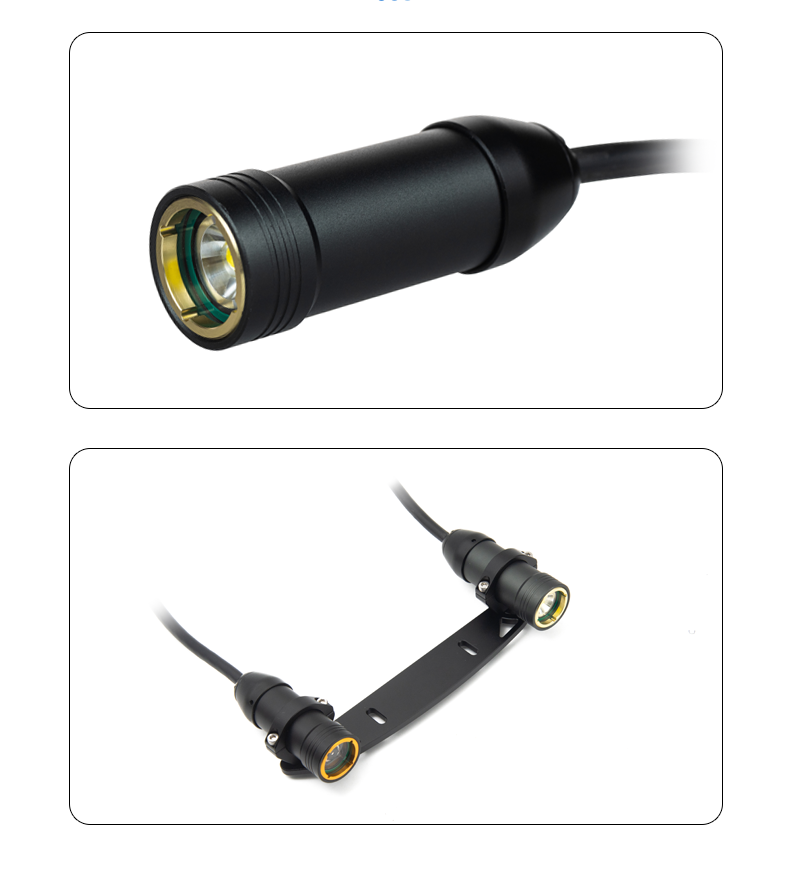

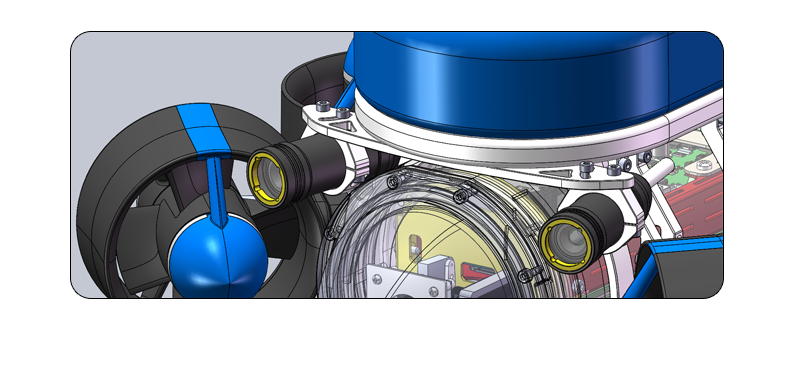

Using Display
