Application
● The underwater ROV is specially developed for many underwater fields, such as underwater rescue, salvage, reconnaissance, archenology, marine breeding and so on. It is widely used in oceans, lakes, rivers and other underwater environment.
●With 8 thrusters, the whole ROV can move in any direction freely, control flexibly and work in 100m underwater placeWe use 1080P camera with 2 megapixel lens to take clear and real time pictures. Two adjustable high-brightness LED can also help the robotics to get clear pictures in dim underwater enviroment. The modular design allow the customers to expend more functions with camera pan, manipulator, sonar, underwater acoustic positioning equipment and so on.
Features
 | 1080P PTZ camera can capture underwater environment clearly |
| The built-in battery can solve the problem of outdoor power supply |
| The ROV has 8 thrusters which are not needed to be assembled or disassembled |
| Fixed depth hovering and directional navigation |
| Max depth of the ROV will be 100m |
| Used as the transmission medium , professional-grade neutrally buoyant tether are tensile and wear-resistant. |

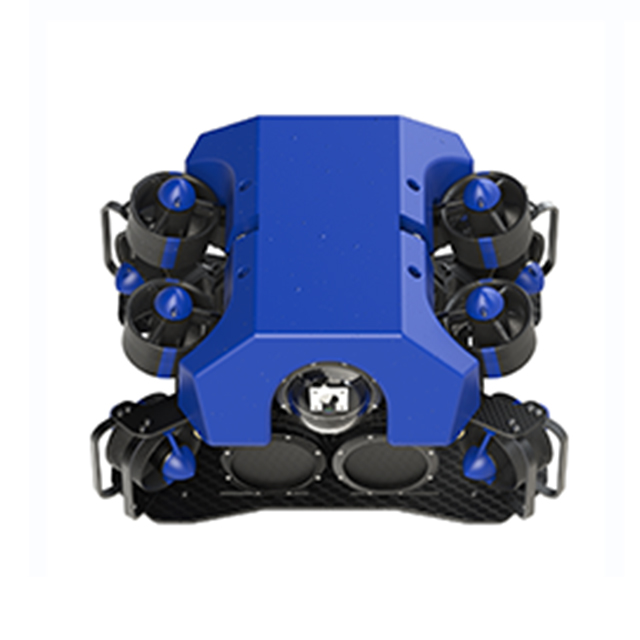

Front view
Side view
Back view
Specification
| Depth | ≤100m | Material | carbon fiber |
| Speed | 1.5m/s | Size | 388*506*309mm |
| Max Current | 45A | Built-in Battery | 6S 3300mAh 50C |
| Remote Control | Xbox (wired) | Weight in Air | 19kg |
| One Charge Working Time | 90 minutes | Cable Length | 100m(standard) |
| Posture in Water | Slightly Positive Buoyancy | ||
| Thruster | 8 Thrusters (4*horizontal thrusters 4*vertical thrusters) | ||
| Thrust | 6.5kg/pc, 12A, 3-6S, PWM forward and reverse rotation | ||
| Light | 2pcs*1200 lumen,12-28V, PWM dimmable | ||
| Camera | 1080P USB camera,good light sensation, Sony IMX322 CMOS | ||
| Cable | Specialized underwater netural buoyancy composite cable,polyurethane foam sheath, Kevlar fiber contained | ||
| Other Parts | 1pc power line carrier, 1m network cable, 1set tool kit, 1set vacuum pump kit, 1pc charger | ||

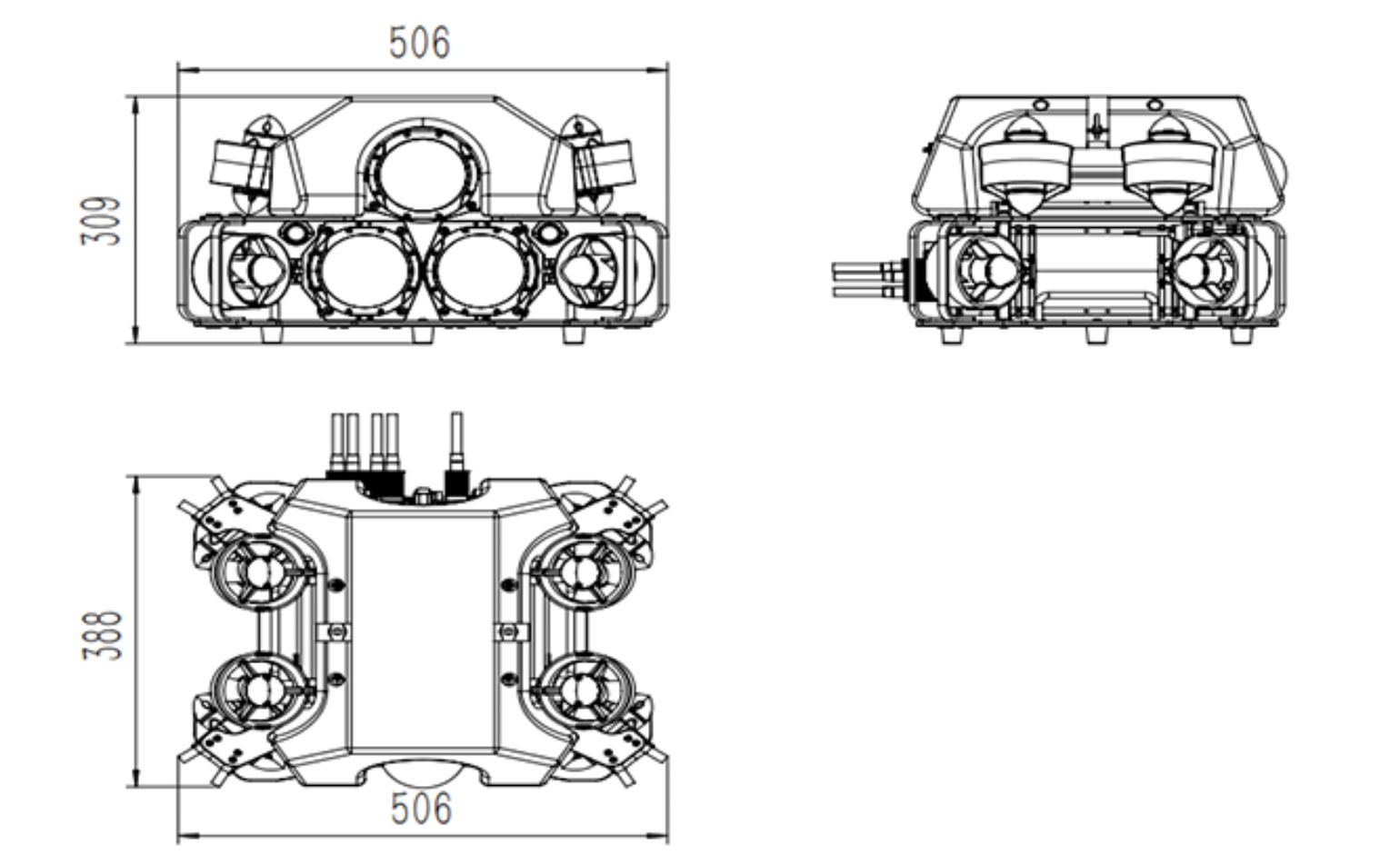

Dimension
