Application
● This hydraulic testing machine is often used for underwater product R&D and random inspection of batch shipments. It is used to test the waterproof scheme of the connection parts of underwater equipment or small-sized underwater accessories and bulkhead accessories. It can be replaced with different hatch covers to adapt to different conditions. Connectors electrically stressed wiring. It is especially suitable for watertight connector manufacturers to select multiple hatch covers and multiple devices for rapid batch self-testing. The end caps need to be purchased separately. They are all through holes. There are end caps suitable for M8, M10, M16, 7/16, 1/2. There are also end caps without holes that can be used with self-opening or blind holes. The maximum pressure is 6Mpa.
Features
 | Increase and decrease pressure manually |

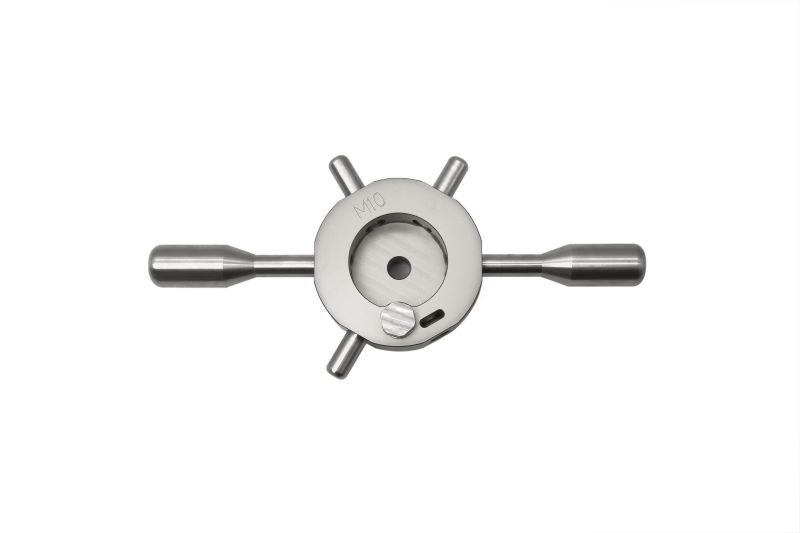

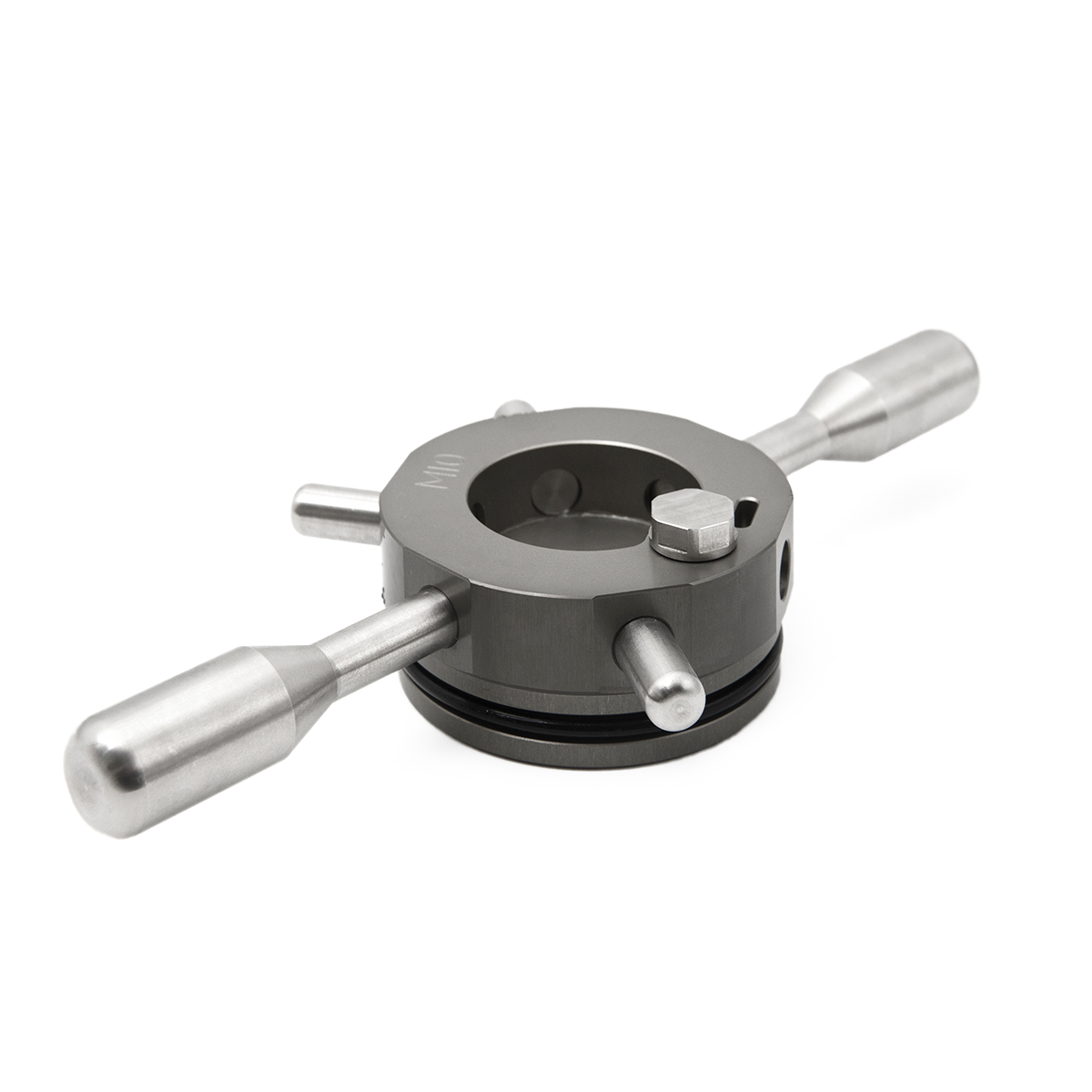

| Quick end cap |
| Locked with the safe pin |
| Aluminum alloy material |

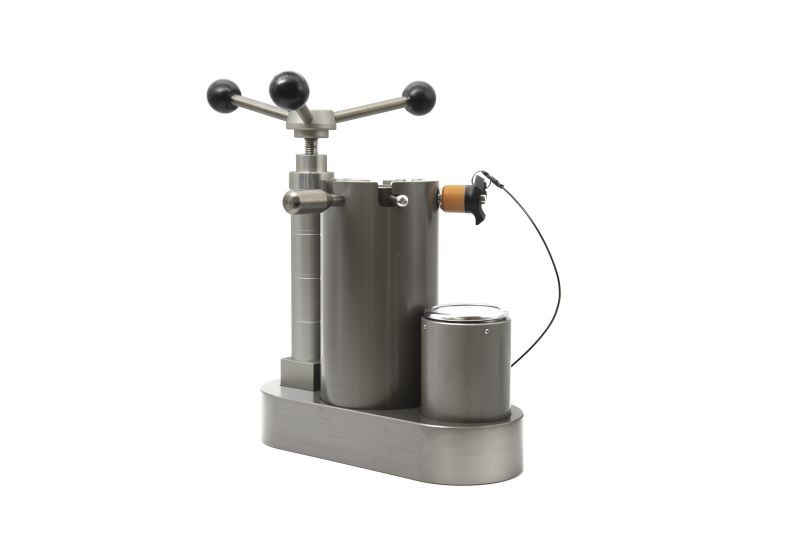

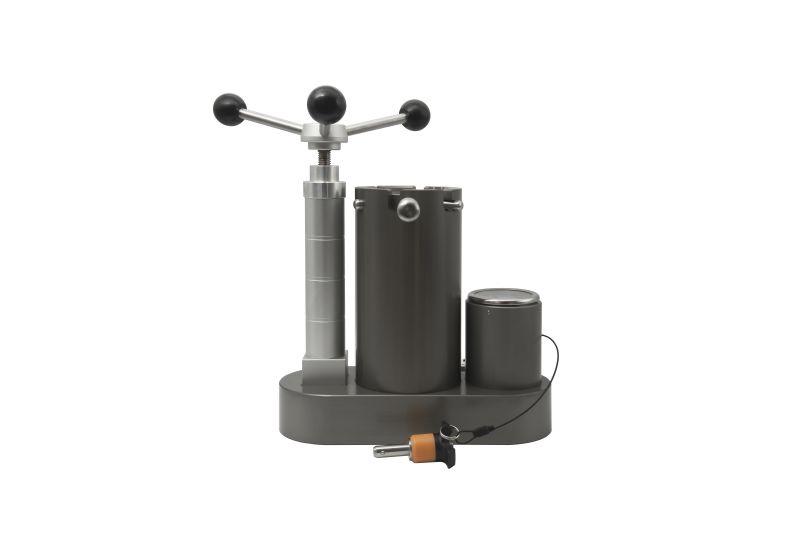

Front view
Side view
Back view

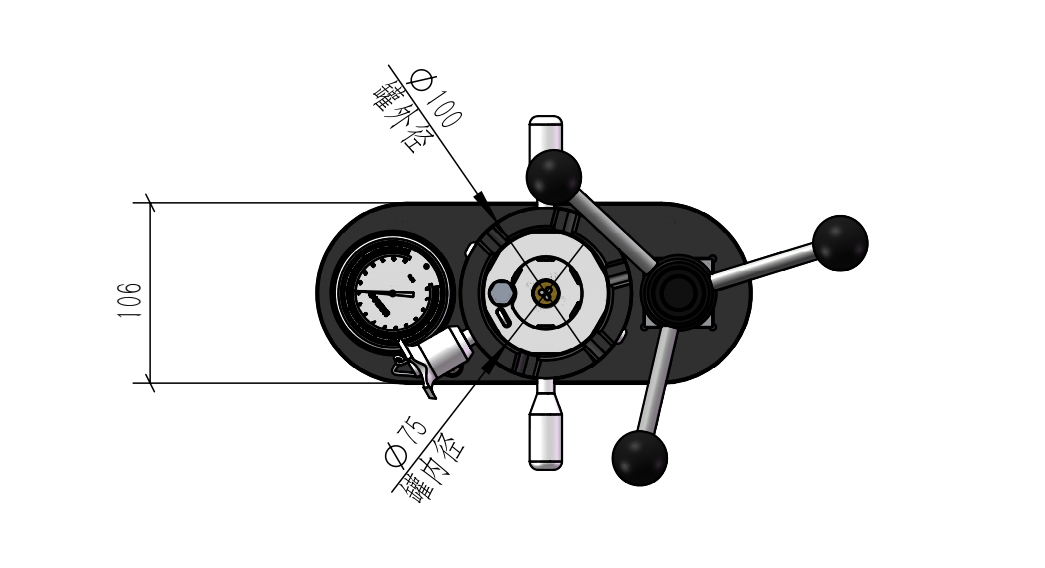

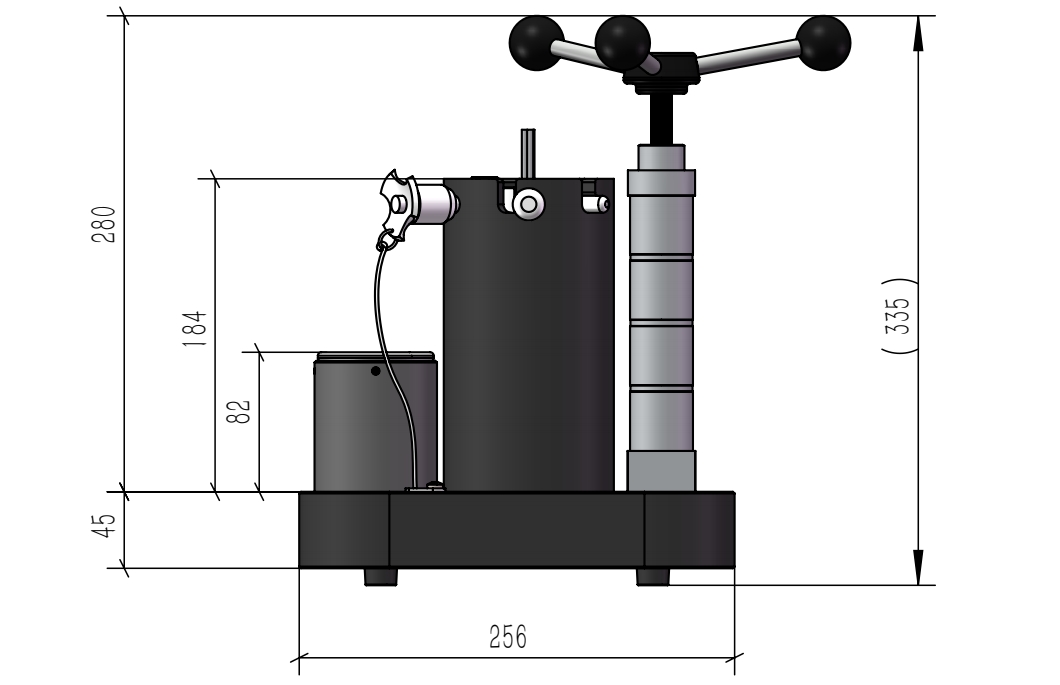

Dimension

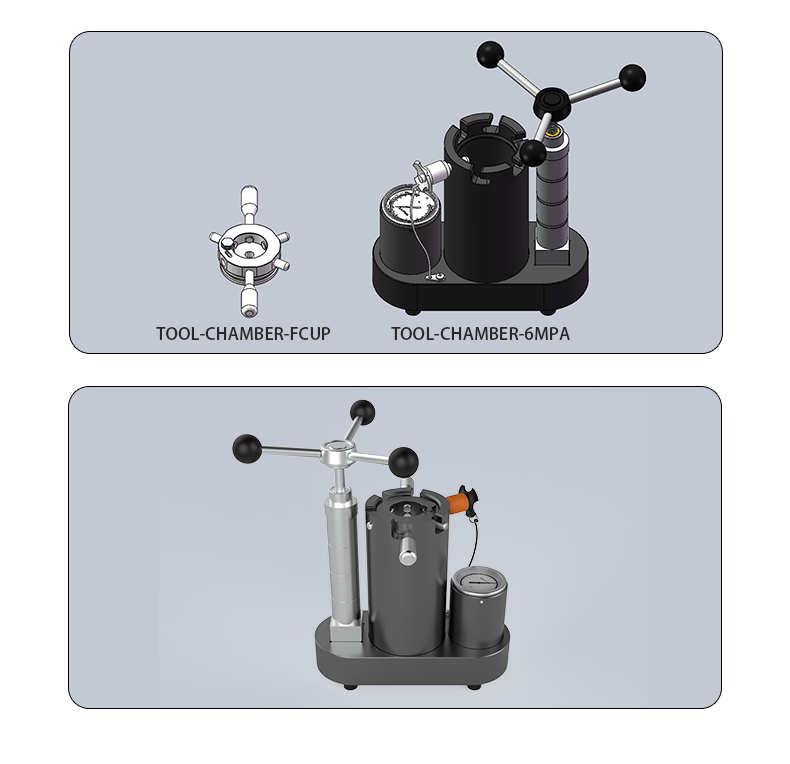

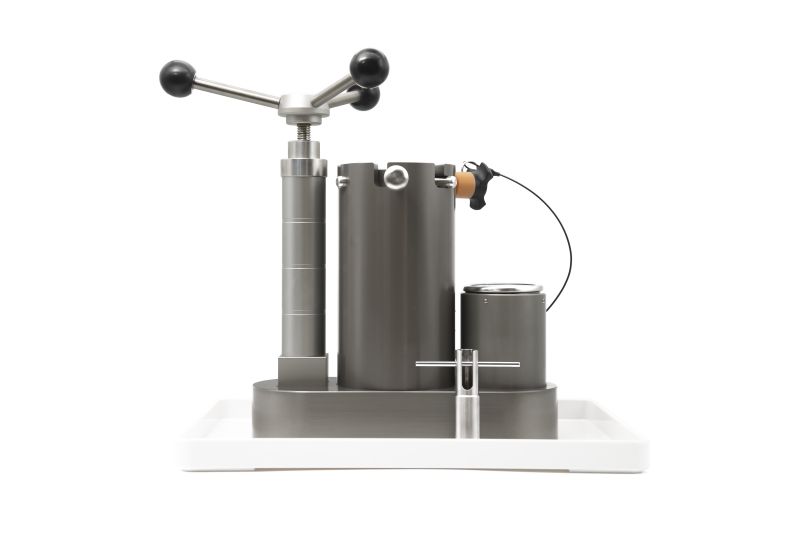

Using Display
