Description

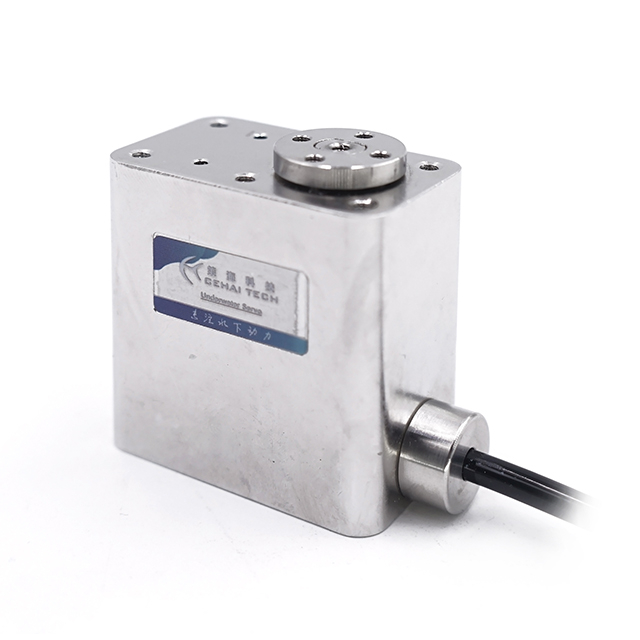

● This underwater servo used for underwater rotation and angle adjustment.
●The built-in oil pressure compensation and dynamic seal can achieve maintenance-free full sealing. With a stainless steel housing and spindle, it has high torque, impact resistance, reliability and durability.
Features
 | Strong Torque |
| Stainless Steel Thread |
| Special Hollow Cup Motor |
Specification
| Type | D30 | Signal Range | 500-2500μ |
| Type Version | D30-2021-V1.2 | Motor Type | Hollow Cup Brushless Motor |
| Type Description | 10kg.cm Underwater Servo | Diameter of spindle/countershaft | 8mm |
| Method of Sealing | Maintenance-free Seal | Material of spindle/countershaft | 316LStainless Steel |
| Sealing Structure | Low Resistance Rotary Seal | Material of Gear | Gear Steel |
| Rated Operating Torque | 10kg·cm(1N·m) | Material of Shell | 316LStainless Steel |
| Peak Torque | 20kg.cm(2N·m) | Material of Screw Thread | 316L Stainless Steel |
| Rated Voltag | 7.4VDC | Material of Cable Sheath | TPU |
| Supply Voltage | 5~8.4VDC | Cable Specifications | OD: 4.5mm Length: 1m Inner: 2X0.4+1X0.2m㎡ |
| Peak Current | 3A | Definition of Connection | Red：+ Black:- White：s |
| Angle Range | 270° | Depth | 300m(customization) |
| UnLoad Speed | 240°/s | Weight | Weight in air: 375g Weight in water: 300g |
| Signal Frequency | 50-300Hz | Temperature | Storage Temperature: 0 to 40℃ Operating Temperature: 0 to 35℃ |

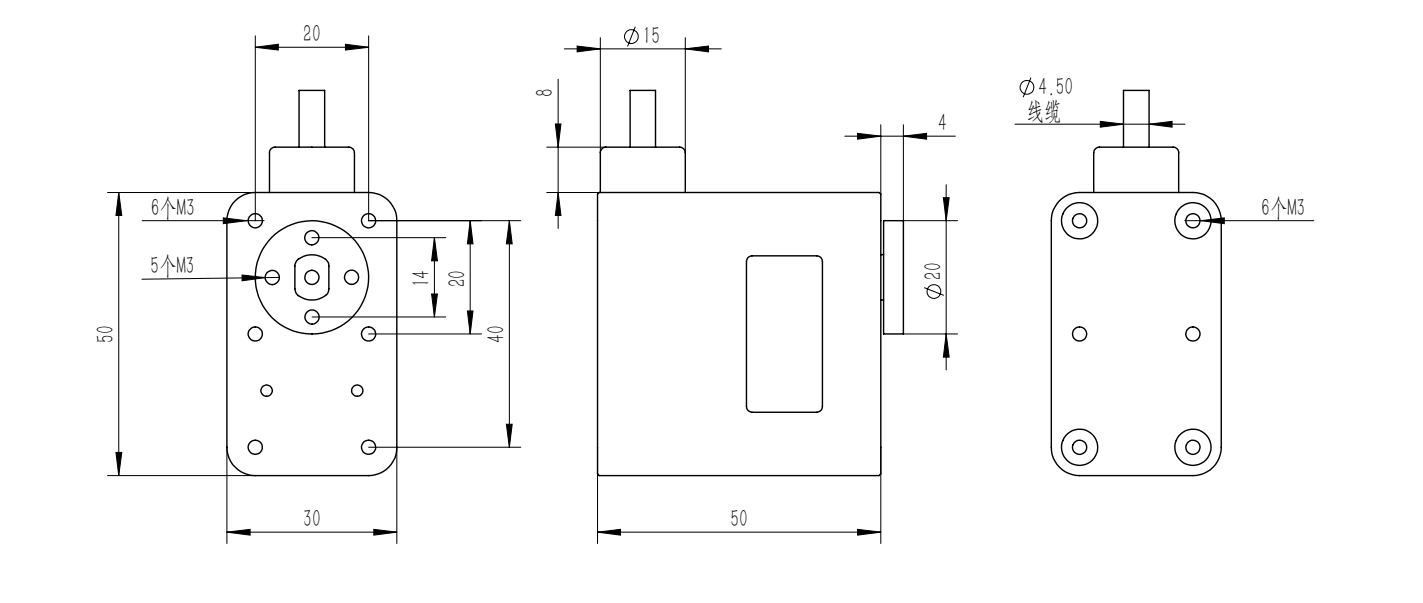

Dimension
