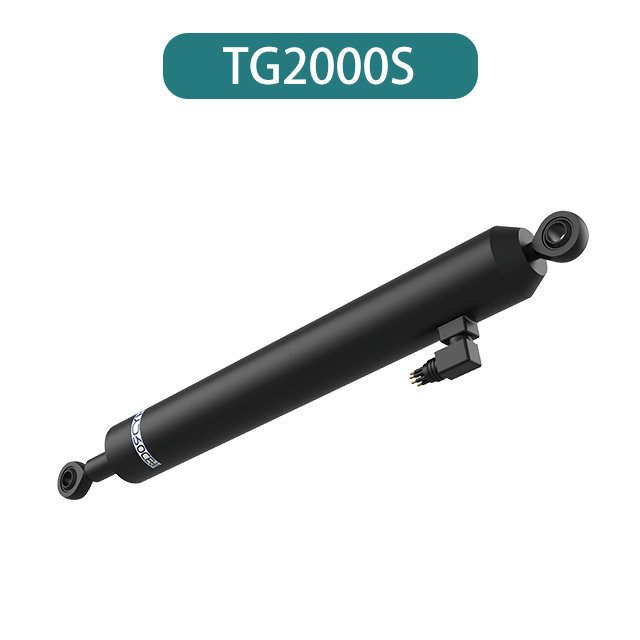

TG2000S Electric Joggers

Hydrocean is experienced in subsea propulsion. We developed more than 40 standard products including Ducted thrusters, Rim-driven thrusters, AUV thrusters, Subsea electric steering gear, Subsea electric push rod, AUV power tail segment, etc., which can meet most of the needs of underwater vehicles. Welcome to contact us, talk to us about your AUV and ROV thruster selection.

Weight air/water:
9.5-15kg/6.4-12kg
Power/Voltage:
200W/12-36V
Thrust:
2000kgf
Speed:
10mm/s
Distance:
0-100mm
Precision:
1-0.5mm


Availability:



Inquire

Features

Electric Joggers TG2000S Features

line

● With a function of real-time telescopic position detection, power-off self-locking of telescopic positions is achieved.

● An ultra-high repeated accuracy

● User-defined length of pushrods

● RS485, RS422 and CAN communication protocols are provided for selection to control rotation directions and speeds of the motor; and users can use software commands to customize communication addresses and terminal resistance values of products.

● With built-in functions of overheating protection, current-limiting protection and stalling protection, users can reset protection functions by virtue of program commands.

● A hidden oil pocket is designed to provide pressure compensation and can be effectively protected from being damaged.

Parameters

Electric Joggers TG2000S Parameters

line

Technical Parameters

Thrust / Speed

2000kg

10mm/s

Power / Voltage

200W

12~36VDC

Distance / Precision

0~100mm

1~0.5mm

Control / RPM control

①CAN

②RS485/RS422

Auxiliary Functions

①Off-position self-locking (standard)

②Off-position memory(optional)

③Electronic limit (optional)

Housing	Environment	Driving	Pressure	Depth Rating	Weight in air & water	Connector model
Stainless Steel	Freshwater	Built-in	Oil filled seal	0~4000m	5.5kg & 4.0kg	12~36VDC(Micro 6-core)
Titanium Alloy	Seawater	Built-in	Oil filled seal	0~4000m	4.8kg & 3.5kg	12~36VDC(Micro 6-core)
