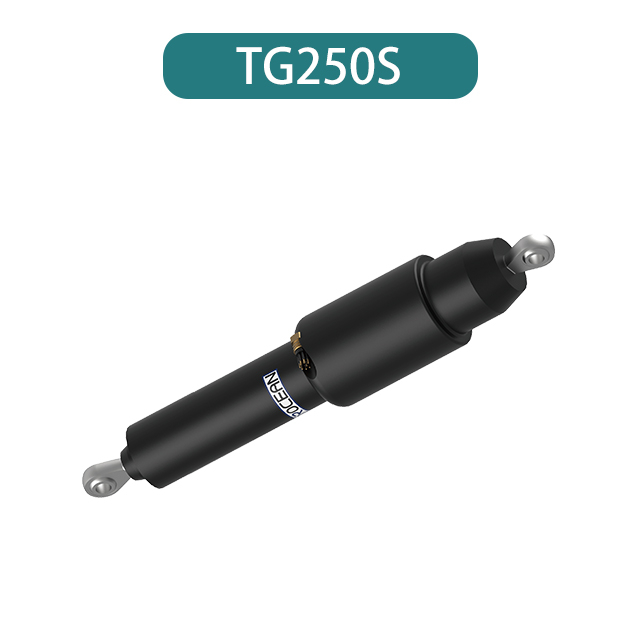

4.1-7.3kg/2.4-5.8kg
200W/12-36V
250kgf
40mm/s
0-100mm
1-0.5mm
Features
● With a function of real-time telescopic position detection, power-off self-locking of telescopic positions is achieved.
● An ultra-high repeated accuracy
● User-defined length of pushrods
● RS485, RS422 and CAN communication protocols are provided for selection to control rotation directions and speeds of the motor; and users can use software commands to customize communication addresses and terminal resistance values of products.
● With built-in functions of overheating protection, current-limiting protection and stalling protection, users can reset protection functions by virtue of program commands.
● A hidden oil pocket is designed to provide pressure compensation and can be effectively protected from being damaged.
Parameters
250kg
40mm/s
320W
12~36VDC
0~100mm
1~0.5mm
①CAN
②RS485/RS422
①Off-position self-locking (standard)
②Off-position memory(optional)
③Electronic limit (optional)
| Housing | Environment | Driving | Pressure | Depth Rating | Weight in air & water | Connector model（Detailed to 106 page） |
| Aluminium | Freshwater | Built-in | Oil filled seal | 0~4000m | 4.1kg & 2.4kg | 12~36VDC(Micro 6-core) |
| Titanium Alloy | Seawater | Built-in | Oil filled seal | 0~4000m | 5.2kg & 3.6kg | 12~36VDC(Micro 6-core) |
| Stainless steel | Freshwater | Built-in | Oil filled seal | 0~4000m | 7.3kg & 5.8kg | 12~36VDC(Micro 6-core) |
Control Wiring Instruction
| Item | Definition |
| 1 | PGND |
| 2 | +VDC |
| 3 | SGND |
| 4 | +12VDC |
| 5 | CANH |
| 6 | CANL |
| Item | Definition |
| 1 | PGND |
| 2 | +VDC |
| 3 | SGND |
| 4 | +12VDC |
| 5 | RS485/422-A |
| 6 | RS485/422-B |

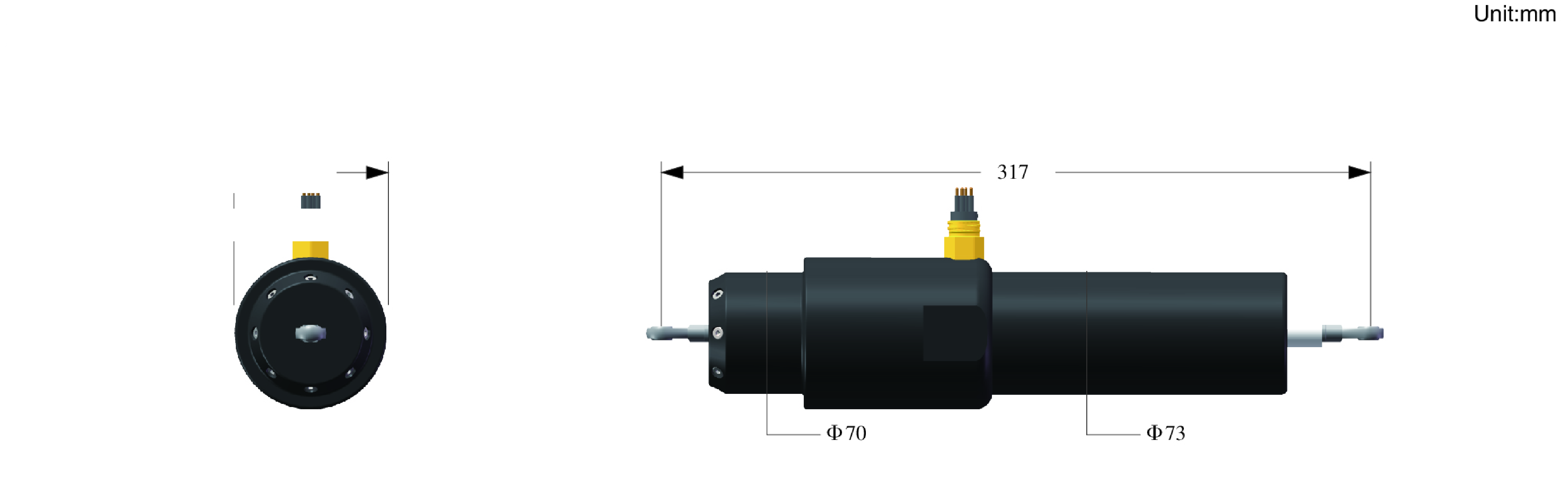

Dimension
Download
 | TG250S水下电动杆产品参数单页-中文版.pdf |
|
 | TG250S Underwater Electric Jogger Product Specification Sheet-English Version.pdf |  |
