Flight controller

Hydrocean is experienced in subsea propulsion. We developed supper cost-effective 6 thrusters and 8 thrusers underwater Rov with open source mode, modular design and HD USB camera . The affordable education ROV and related parts are specially developed for student training,science and technology innovation competition,teaching and research. Welcome to contact us, talk to us about your Educational selection.


Availability:



Inquire

Description

Flight Controller Description

line

● This flight controller is PIXHAWK2.4.8 version. It has been tested to be compatible with the underwater robot ardusub system. The pre-flashed firmware is matched with a TF card.

Features

Flight Controller Features

line

32-bit ARM CortexM4

14 pcs PWM/servo outputs

Provides redundant power input and failover functions

It is compatible with Ardusub with pre-flashed program

Both automatic mode and manual mode are available

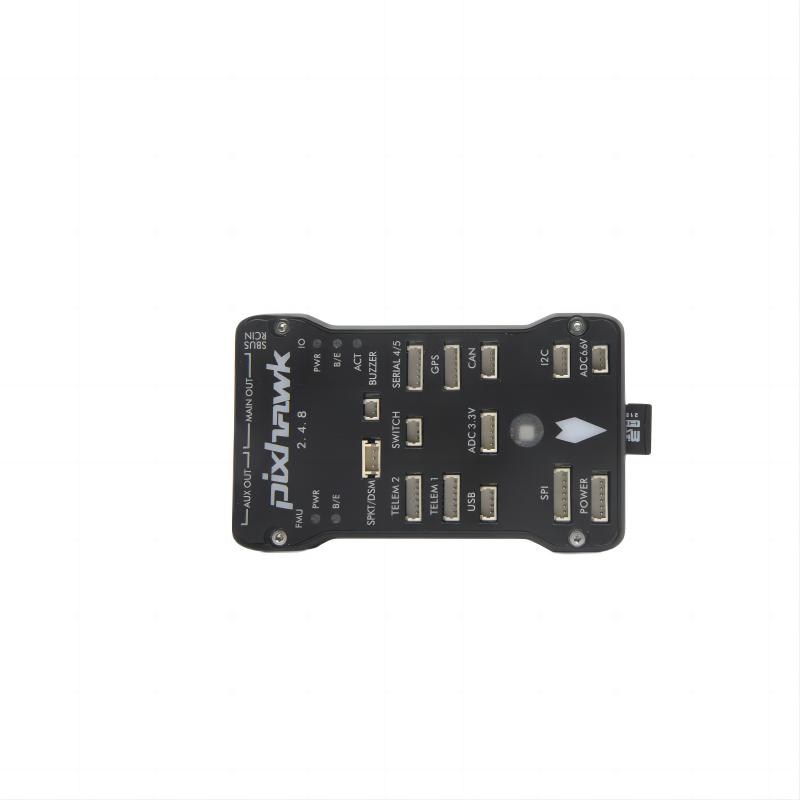

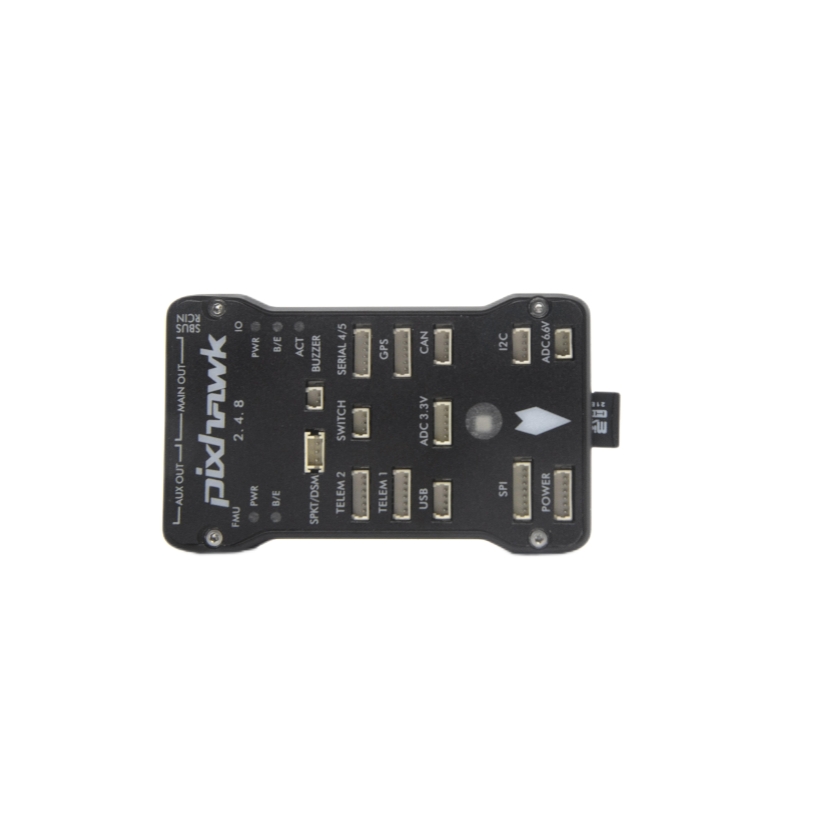

Front view

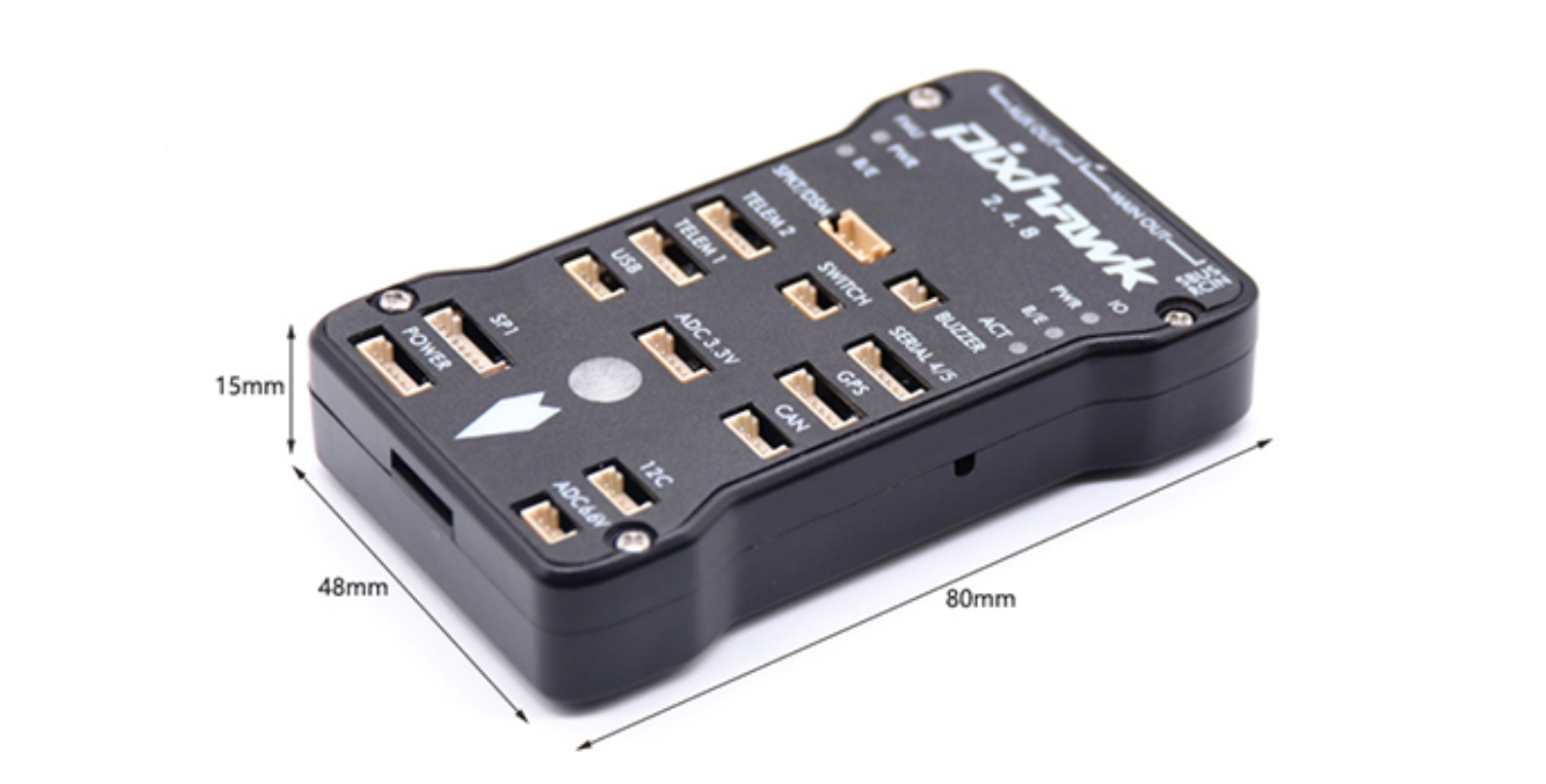

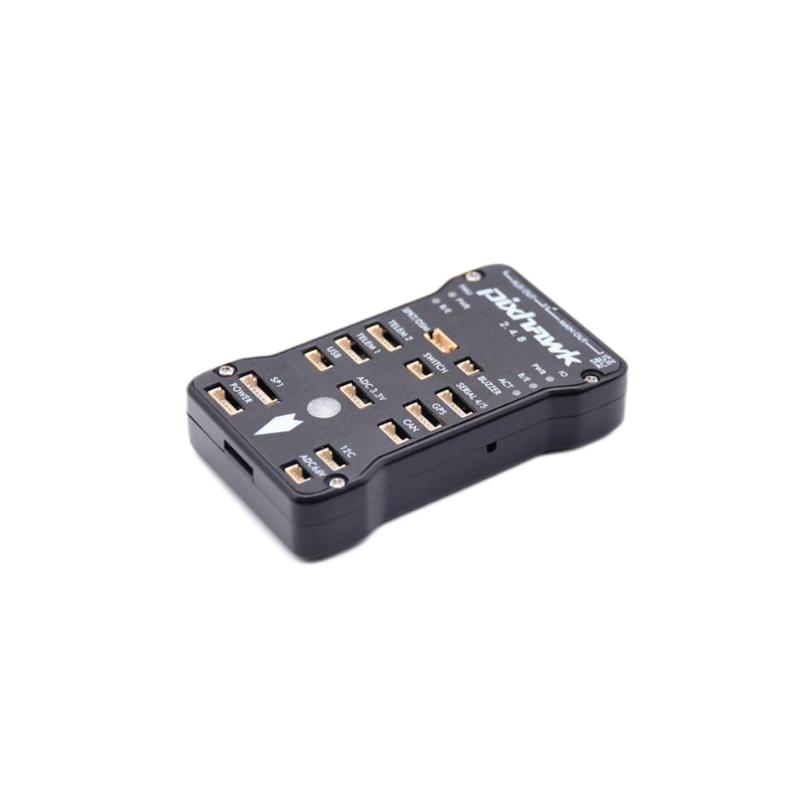

Side view

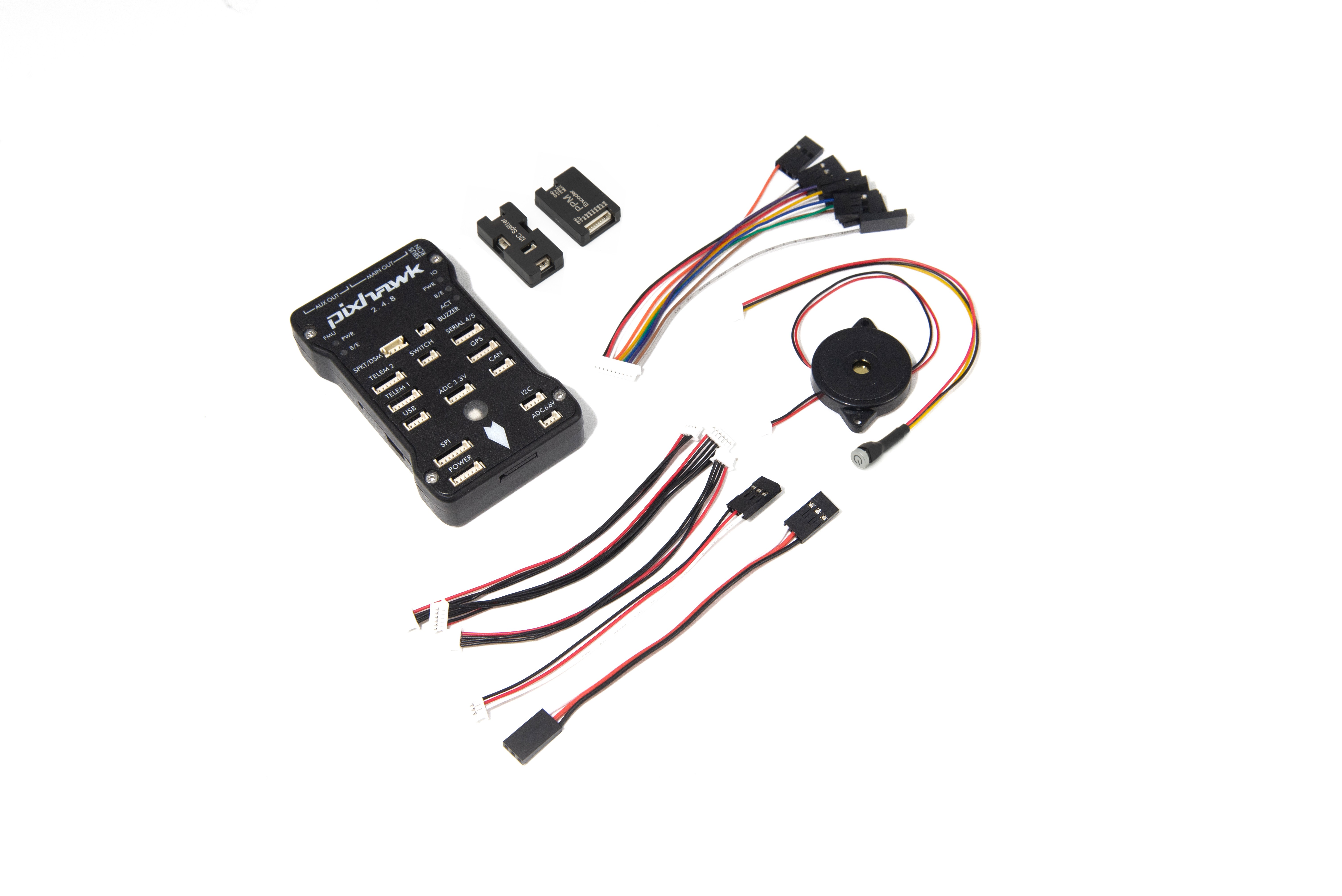

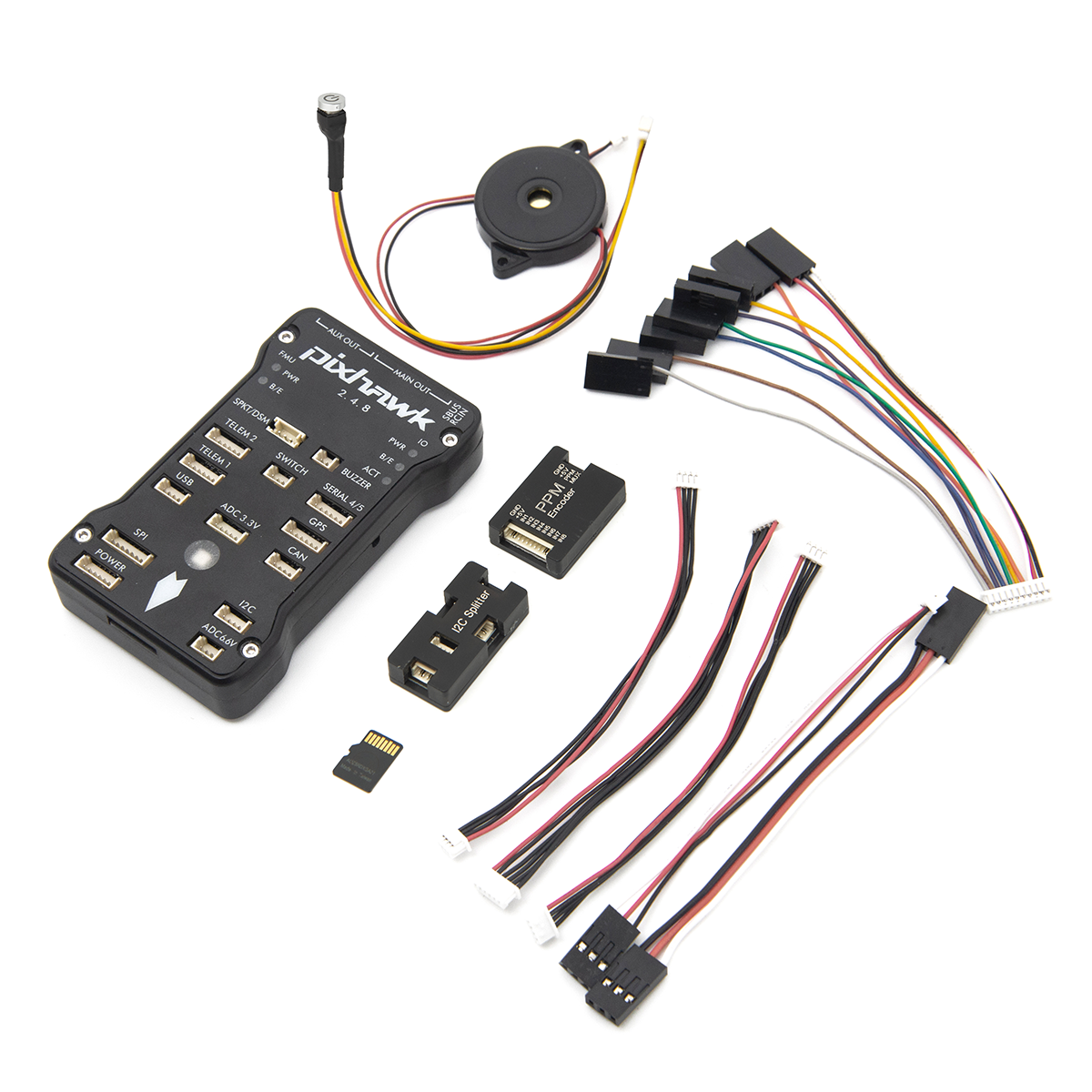

Set view

Specification

Flight Controller Specification

line

Processor	32-bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
	Main frequency: 168MHZ, 256K RAM
	32-bit STM32F103 backup coprocessor
Sensor	L3GD20 3-axis digital 16-bit gyroscope
	LSM303D 3-axis 14-bit accelerometer/magnetometer
	MPU6000 6-axis accelerometer/magnetometer
	MS5611 high-precision barometer
Interface	5 pcs UARTs 1 high voltage compatible, 2 with hardware flow control
	2 pcs can
	Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
	Futaba SBUS compatible input and output
	PPM signal input
	RSSI (PWM or voltage) input
	I2C
	SPI
	3.3 and 6.6VADC input
	External MICRO USB interface
