Application

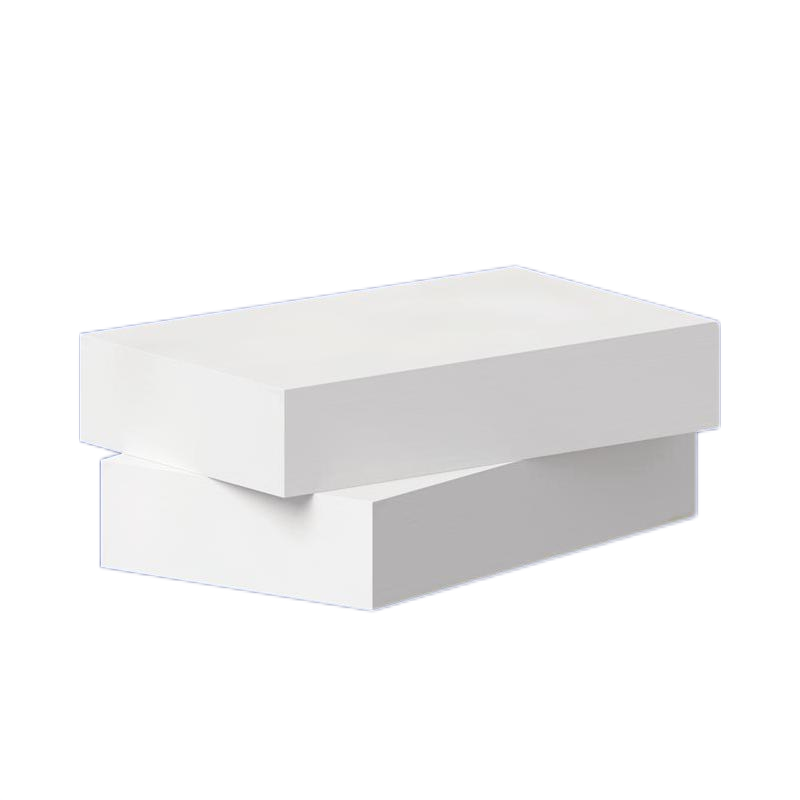

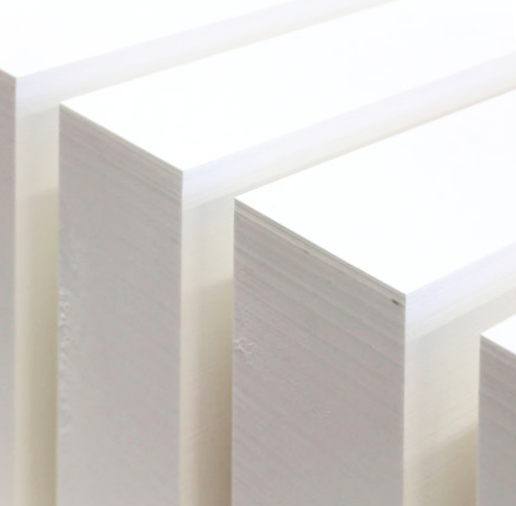

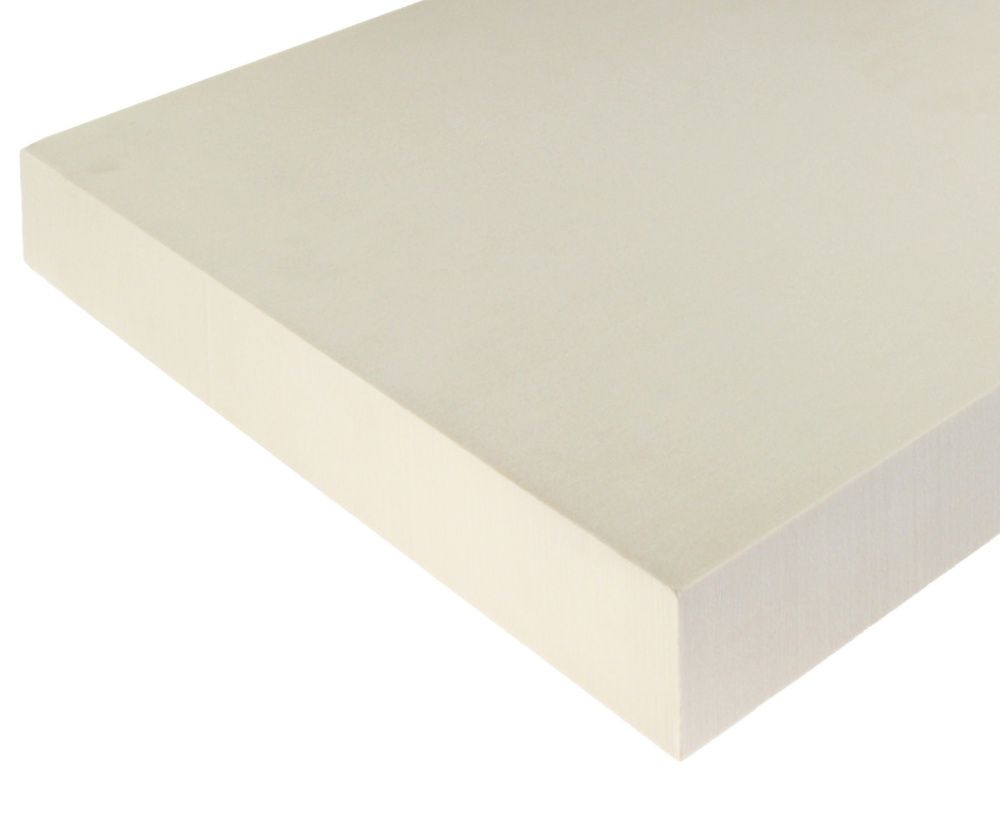

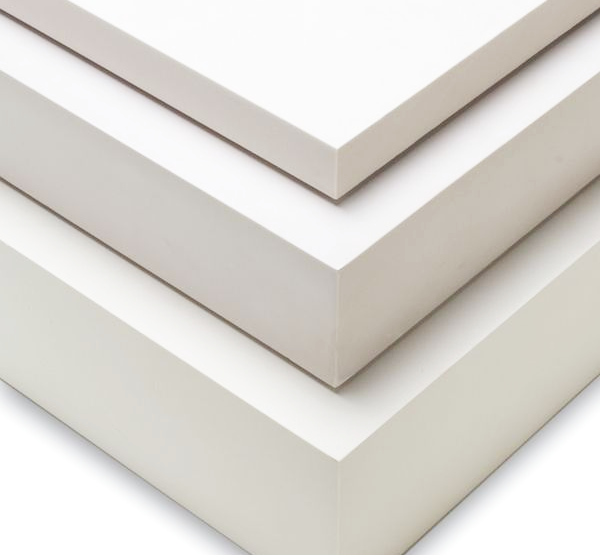

● Solid buoyancy material is a buoyancy material commonly used in underwater equipment. It is divided into foaming solid welfare material and epoxy glass bead solid buoyancy material. The standard size of this solid buoyancy material is 320x320x100mm, and the distance within 100 meters is additional. The size of the foaming buoyancy material is 320x320x50mm. It is made of PVC special foaming process. It has low water absorption and there is a certain error in the blank size.
● The buoyancy material can be pasted, processed, and sprayed. The microporous structure makes this material have good pressure resistance and processing performance. Processing and surface treatment can be provided according to the drawings.
Features
 | The density of foam can cover from surface to full ocean depth |
| Processing, surface treatment and customization are avaliable |
| High pressure resistance and pressure resistance |
| Water absorption rate is less than 1% in 24 hours |
Specification
| Foaming solid buoyancy material | Model | Density g/cm3 | Depth（m） | Compressive strength（Mpa） |
| Size: 320x320x50 | TOOLS-SBM-008 | 0.08 | Surface | / |
| Size: 320x320x70 | TOOLS-SBM-010 | 0.1 | 50 | 0.5 |
| Size: 320x320x50 | TOOLS-SBM-020 | 0.2 | 100 | 1 |
Epoxy glass beads standard material properties Size：320x320x100 | Model | Density g/cm3 | Depth （m） | Water absorption rate（24h） | Compressive strength（Mpa） |
| TOOLS-SBM-037 | 0.37 | 200 | ≤1% | ≥8 | |
| TOOLS-SBM-039 | 0.39 | 300 | ≥10 | ||
| TOOLS-SBM-041 | 0.41 | 500 | ≥12 | ||
| TOOLS-SBM-045 | 0.45 | 1000 | ≥20 |
