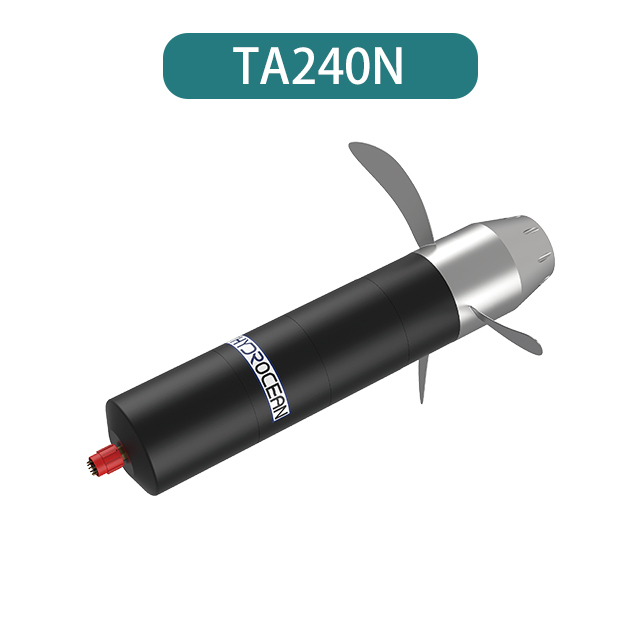

TA240N AUV Thruster

Hydrocean is experienced in subsea propulsion. We developed more than 40 standard products including Ducted thrusters, Rim-driven thrusters, AUV thrusters, Subsea electric steering gear, Subsea electric push rod, AUV power tail segment, etc., which can meet most of the needs of underwater vehicles. Welcome to contact us, talk to us about your AUV and ROV thruster selection.

Forward/Back:
242kgf/99kgf
Power:
14000W
Voltage:
300V
Weight air/water:
30.9-36.7kg/24.2-28.2kg
Dia/L:
500mm/572-708mm


Availability:



Inquire

Features

AUV Thruster TA240N Features

line

● With high medium-speed efficiency, great depth and independent sealing, they are applicable to main big-sized medium-speed AUV thrusters (water cooling for heat dissipation).

● Revolving speed open-loop and closed-loop are provided for selection; the revolving speed closed-loop is superior to revolving speed open-loop in achieving a high uniformity of multiple products.

● An analogue voltage signal of ±5V or a PWM signal can be selected to control the rotation direction and speed of motors; and a pulse signal and a 0~5V analogue voltage signal are provided for selection to give feedback on motor speed.

● RS485, RS422 and CAN communication modes are provided for selection to control the rotation direction and speed of motors; and users may use appropriate software commands to customize product communication addresses and terminal resistance values.

● A super long service life version and a low noise version are provided for selection. They support performance index optimization of thrust, weight and efficiency, etc., and customization of higher voltage for power supply.

● Overheating protection, current-limiting protection and stalling protection functions are built-in; and users can use a program command to reset protection functions.

Parameters

AUV Thruster TA240N Parameters

line

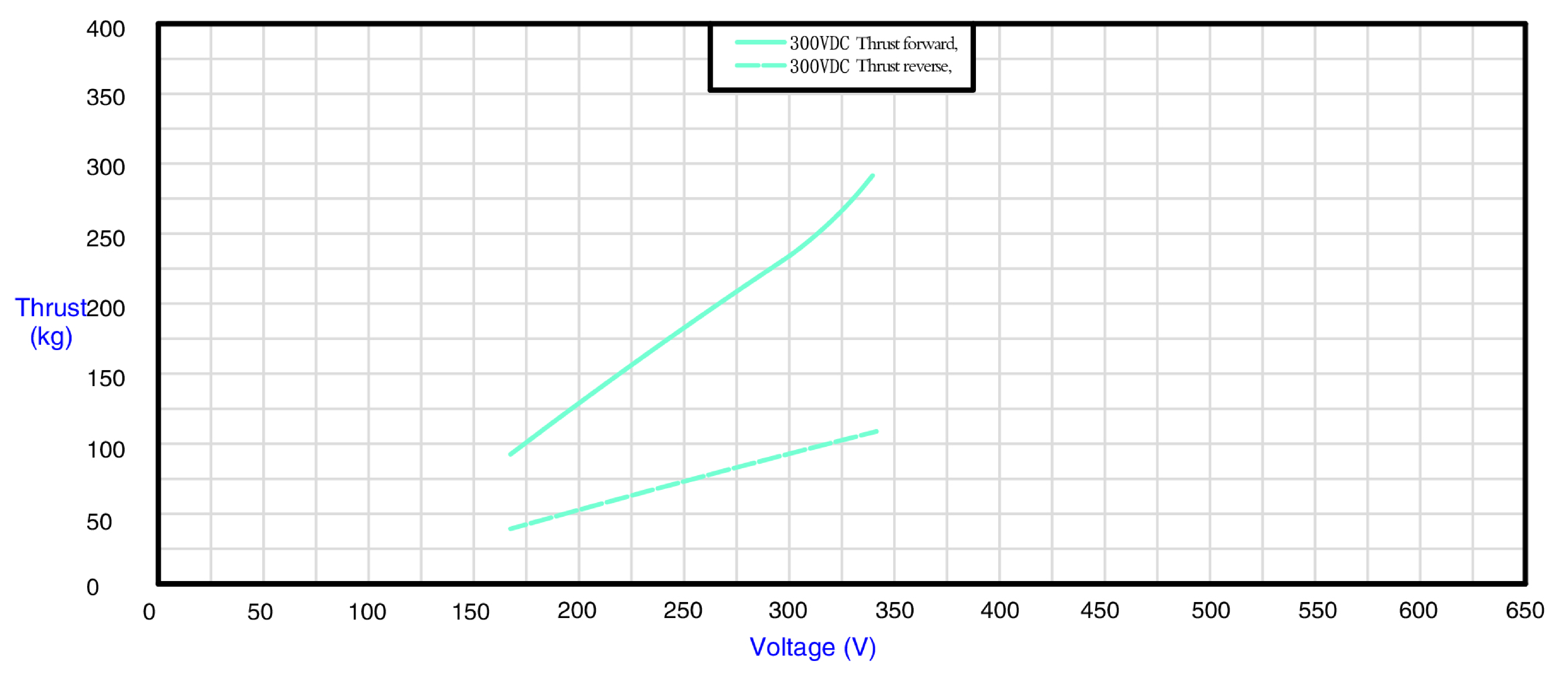

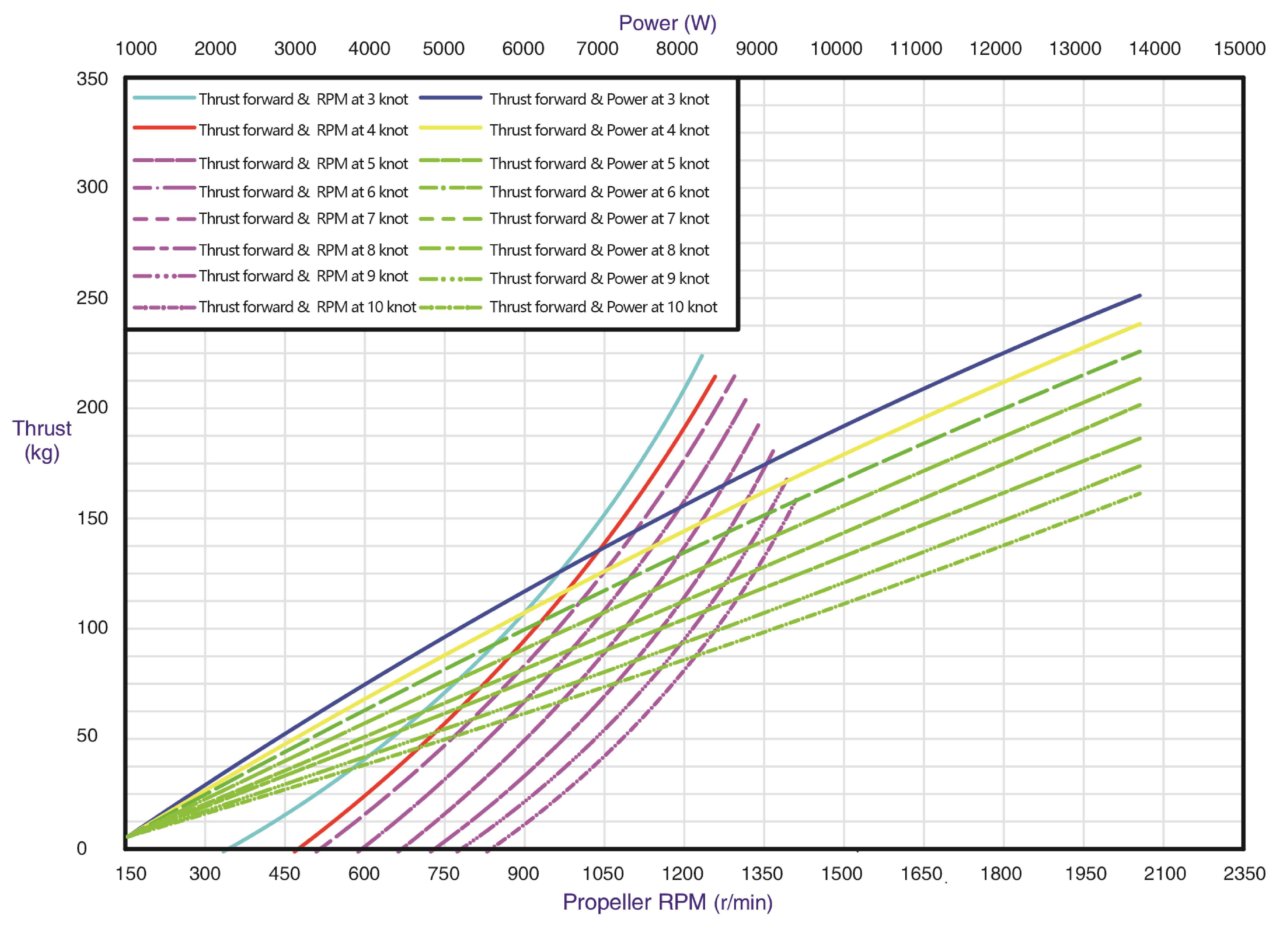

Thrust

Forward Thrust 242kg

Reverse Thrust 99kg

RPM/Power/ Voltage

1300r/min

14KW

300VDC

Control mode

①±5V Analog voltage control

②PWM

③CAN

④RS485/RS422

RPM control

①Analog voltage feedback

②Pulse feedback

③CAN

④RS485/RS422

Dimension

Outer dia 500mm

Length 572~708mm

Notes:Dimensions of the connector are excluded

Material	Environment	Driving	Pressure-resistance	Depth Rating	Weight in air & water	Connector model
Aluminium	Freshwater	Built-in	Shell	0~850m	33.7kg & 25.2kg	300VDC(Micro 16-core)
Titanium Alloy	Seawater	Built-in	Shell	0~1500m	36.7kg & 28.2kg	300VDC(Micro 16-core)
Aluminium	Freshwater	External	Shell	0~850m	30.9kg & 24.2kg	300VDC(Standard16-core)
Titanium Alloy	Seawater	External	Shell	0~1500m	33.5kg & 26.8kg	300VDC(Standard 16-core)
Titanium Alloy	Seawater	External	Oil filled seal	0~6000m	35.5kg & 26.9kg	300VDC(Standard-oil 16-core)
Titanium Alloy	Seawater	External	Oil filled seal	Full ocean depth	35.5kg & 26.9kg	300VDC(Standard-oil 16-core)

Weight variations of products undergoing oil charge compensation are under the influence of the length of oil tubes，for oil tube, each additional 0.1m increase, its weight adds 45g in air, adds 16g in water.

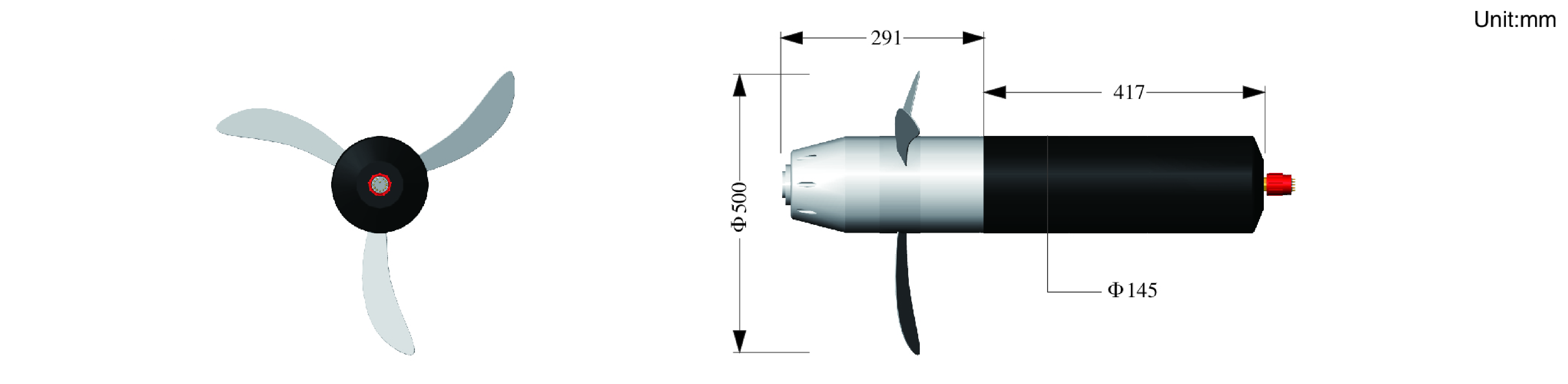

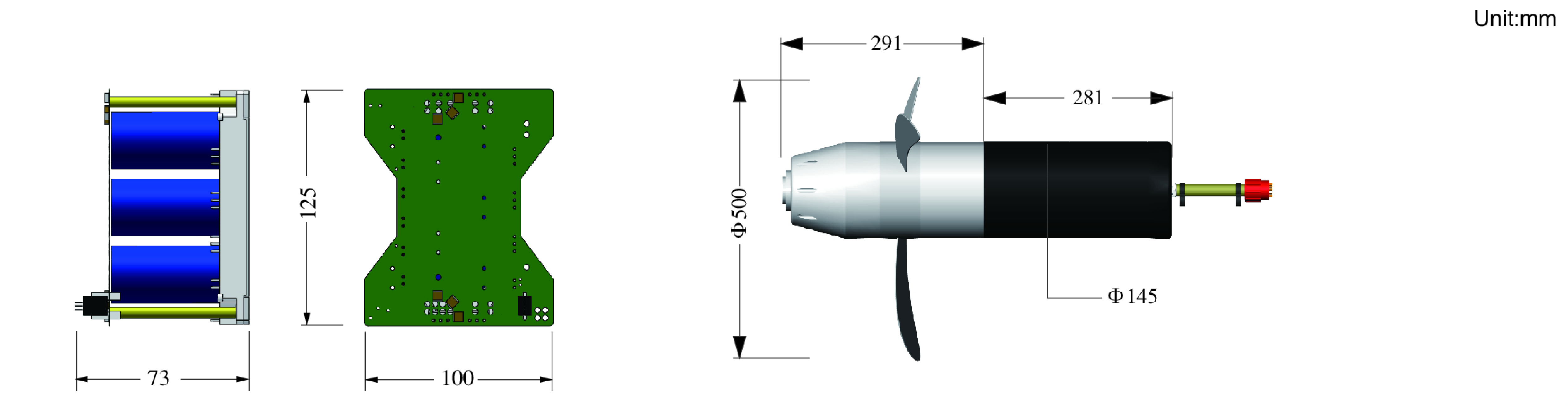

Dimension
