Application

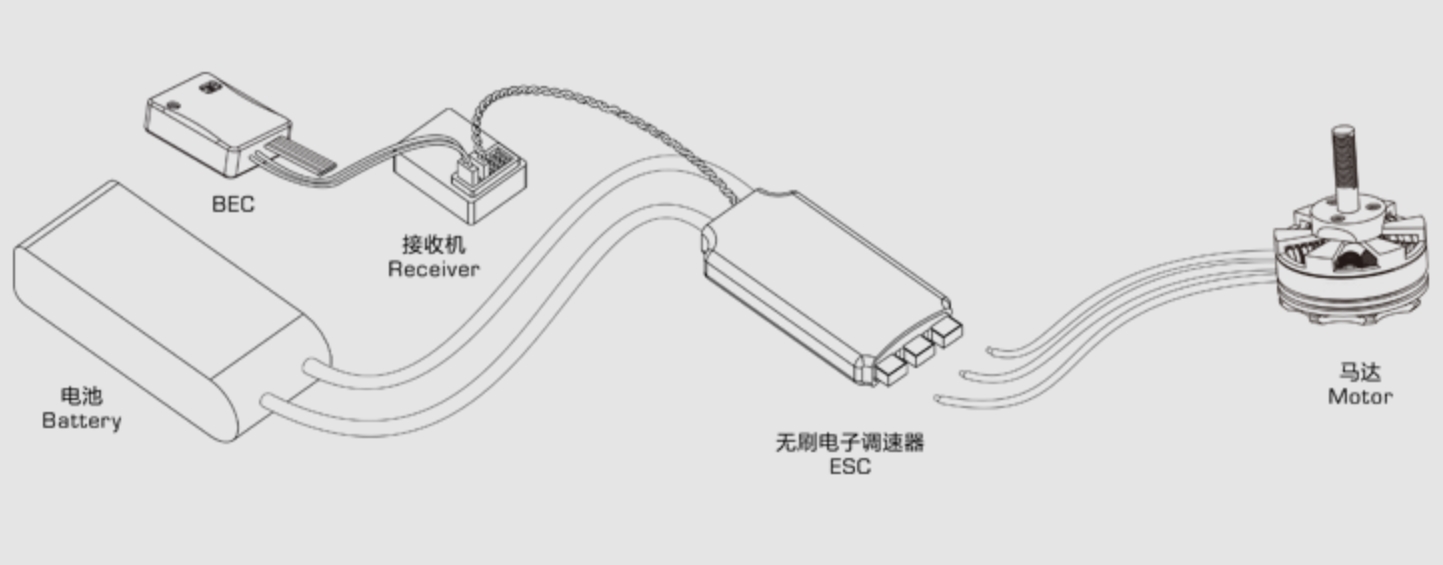

● ESC is used to adjust motor speed. The All remote control models, vehicles, airplanes, and boats need to control the running speed of the model by adjusting the motor's RPM.
● With the BLHeli open source program, Its parameters can be upgraded or changed through the signal line; the Damped light mode can be optional, which is more efficiently and significantly improves the respond speed of throttle and enhance the stability and flexibility of the multi-rotor.
● The ESC can run under the most violent configurations with adjustable parameters.
● The ESC automatically detects the throttle signal when it is powered on, and supports pulse width input of 1-2ms in normal throttle mode, oneshot125 (125-250us), oneshot42 (41.7-83.3us) and multishot (5-25us).
● The signal wire is a twisted pair wire, which effectively reduces the interference caused by signal transmission within the copper wire, making the flight more stable.
Features
 | With powerful C8051F390 MCU, 8-bit C8051 core, its operation frequency up to 50MHZ |
| The ESC is small in size and light in weight |

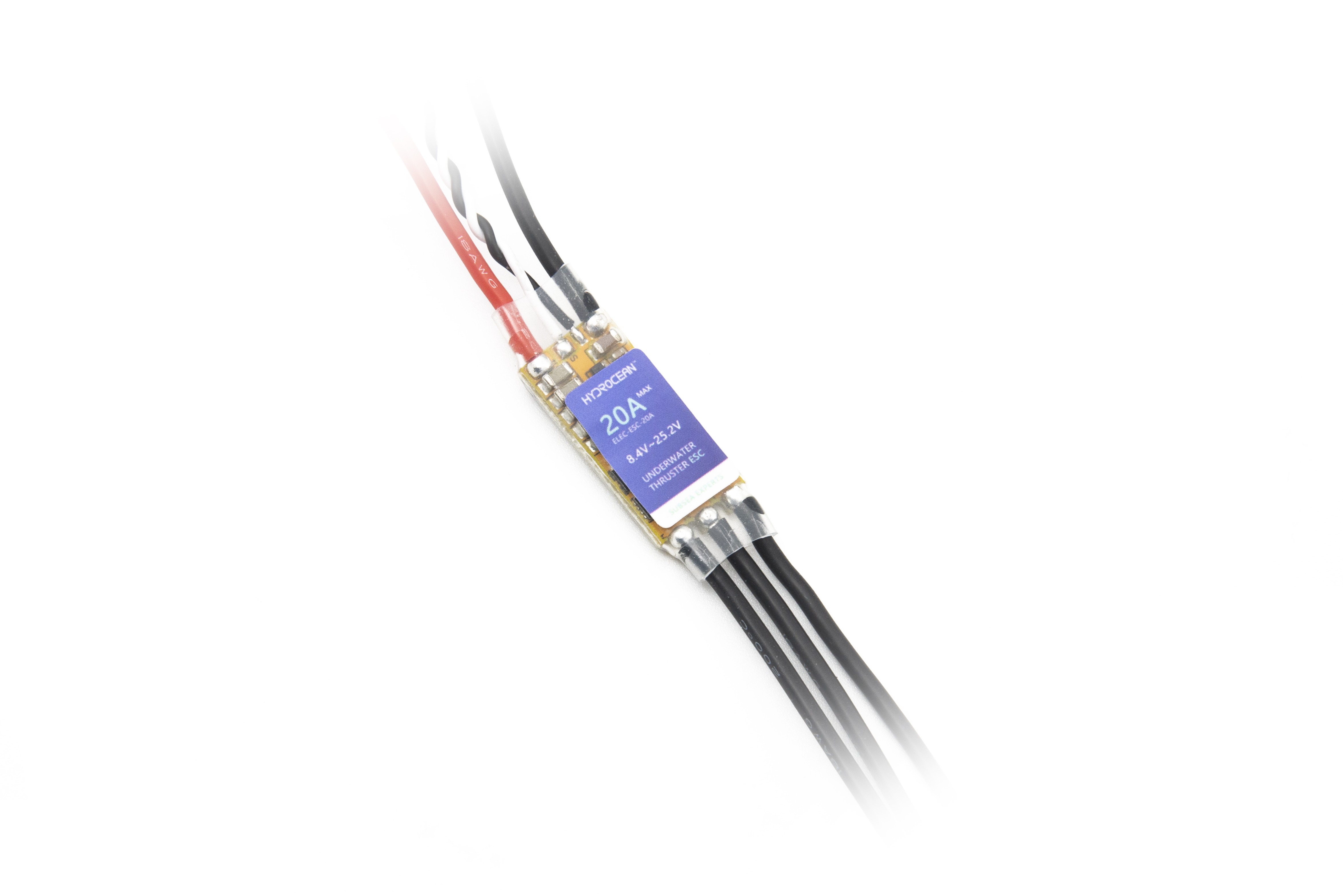

Front view
Side view
Back view
Specification
| Model | ELEC-ESC-20A | ELEC-ESC-35A |
| Rated continuous current | 20A | 35A |
| Instantaneous current | 30A | 45A |
| BEC | No | No |
| Weight | 7g | 9g |
| Size | 29*12*5mm | 33*15*6mm |
| Battery | 2-6S | 2-6S |
Dimension
