Application
● The S6-E ROV is a the most cost-effective underwater robot specially developed for student training,science and technology innovation competition,teaching and research.
●The Rov can capture the underwater environment clearly with two adjustable high-brightness LED underwater light.
●It adopts an open source solution with complete functions and affordable price, which lowers entry barrier of underwater robotics.
●It is suitable for large-scale student training. The ready-to-use robotic with modular design is easy to be disassembled and assembled, and you can test and observe directly in water after placing the order.
Features
 | 1080P PTZ camera can capture underwater environment clearly |
| The built-in battery can solve the problem of outdoor power supply |
| The ROV has 6 thrusters which are not needed to be assembled or disassembled |
| Fixed depth hovering and directional navigation |
| Max depth of the ROV will be 100m |
| Used as the transmission medium , professional-grade neutrally buoyant tether are tensile and wear-resistant. |

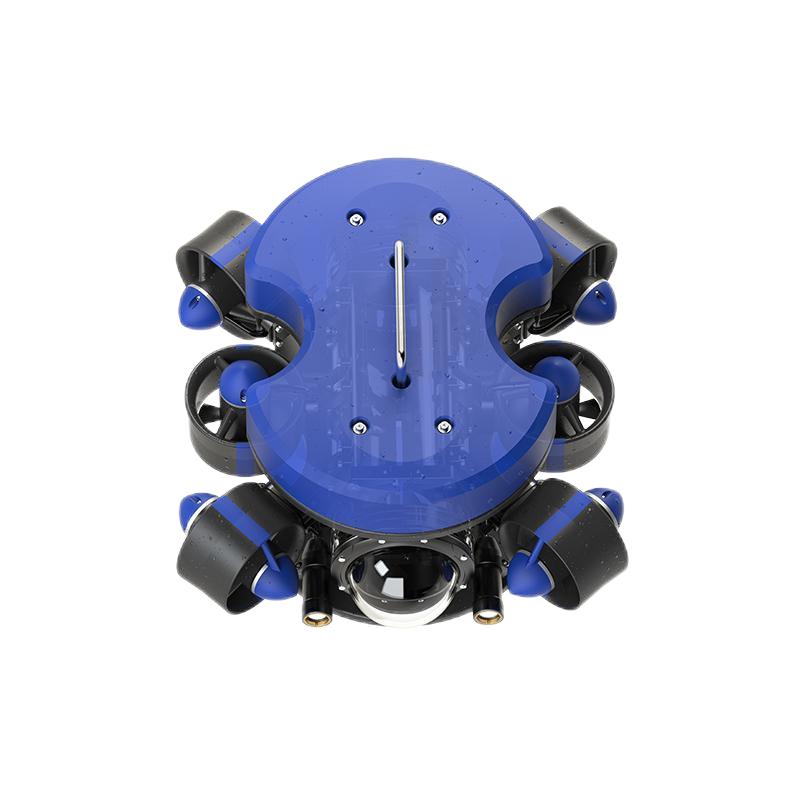

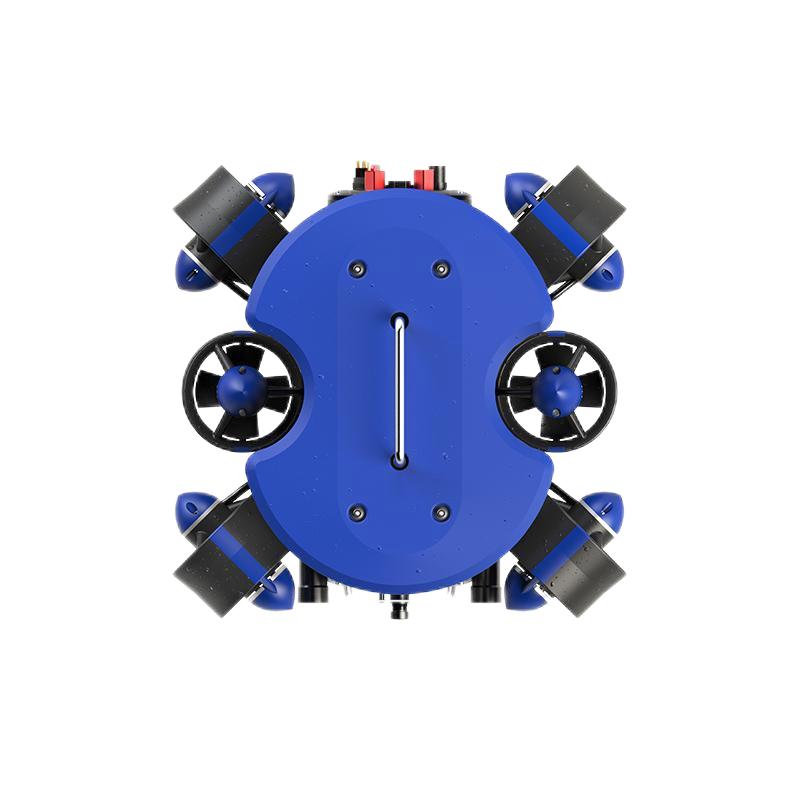

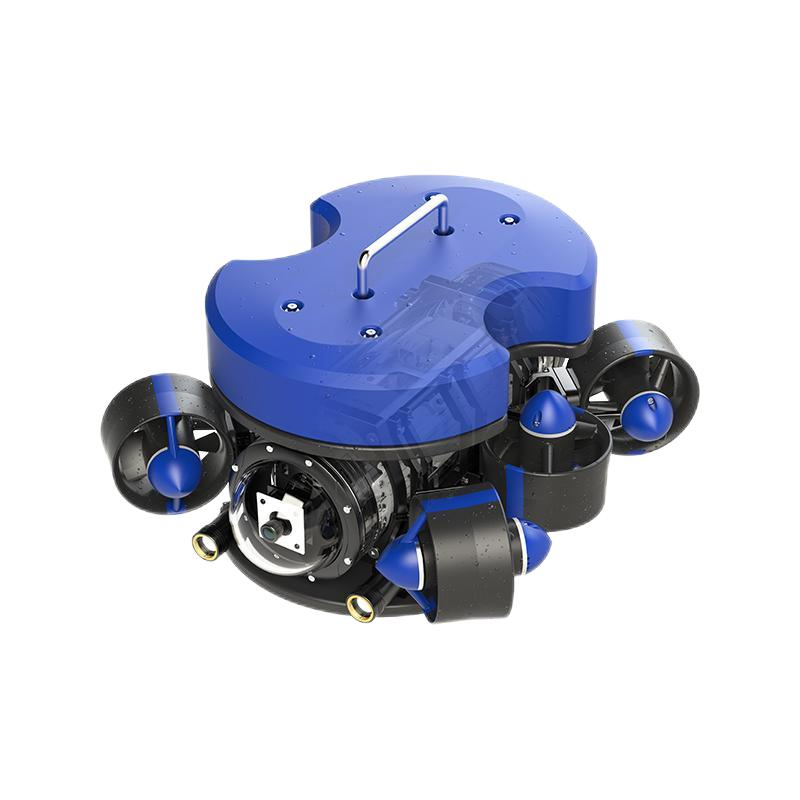

Front view
Side view
Rear view
Specification
| Depth | ≤100m | Speed | 1.6m/s |
| Max Current | 45A | Remote Control | Xbox (wired) |
| Built-in Battery | 6S 3300mAh 50C | One Charge Working Time | 65 minutes |
| Weight in Air | 9.4kg | Posture in Water | Slightly Positive Buoyancy |
| Cable Length | 60m(standard) | Size | 380*360*248mm |
| Thruster | 6 Thrusters (4*horizontal thrusters 2*vertical thrusters) | ||
| Thrust | 6.5kg/pc, 12A, 3-6S, PWM forward and reverse rotation | ||
| Light | 2pcs*1200 lumen,12-28V, PWM dimmable | ||
| Camera | 1080P USB camera,good light sensation, Sony IMX322 CMOS | ||
| Other Parts | 1pc power line carrier, 1m network cable, 1set tool kit, 1set vacuum pump kit, 1pc charger | ||

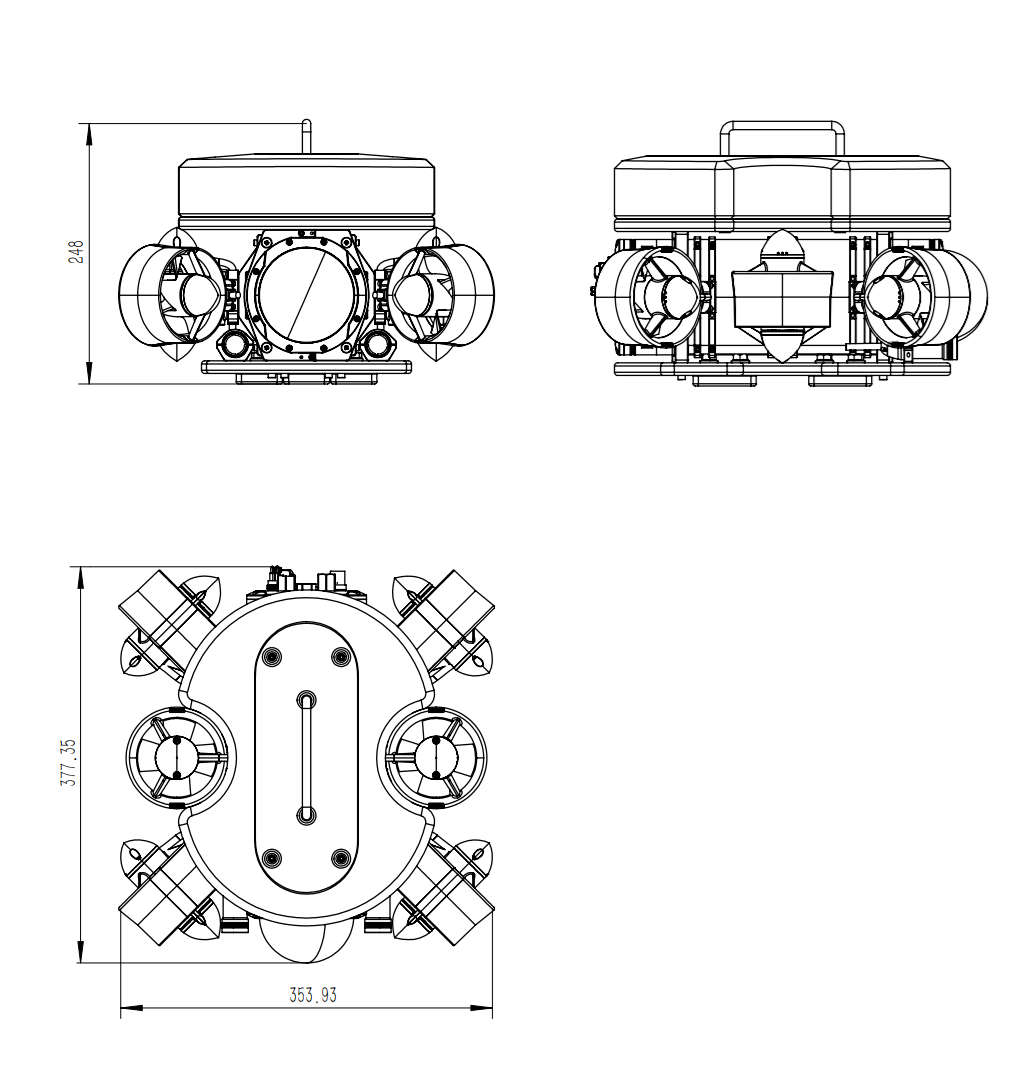

Dimension
