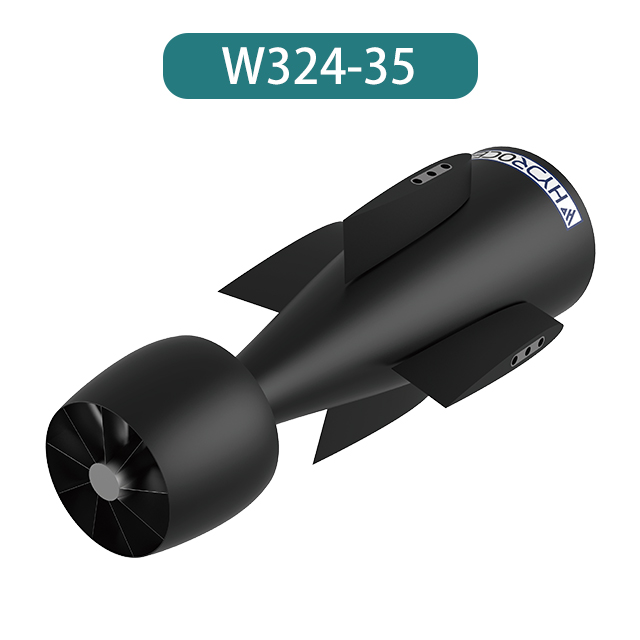

W324-35 High Speed AUV Power Sections

Hydrocean is experienced in subsea propulsion. We developed more than 40 standard products including Ducted thrusters, Rim-driven thrusters, AUV thrusters, Subsea electric steering gear, Subsea electric push rod, AUV power tail segment, etc., which can meet most of the needs of underwater vehicles. Welcome to contact us, talk to us about your AUV and ROV thruster selection.

  • 60000W

  • 256-428V

  • 324mm/1000mm

  • 227mm/340mm

  • 35 knot

Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Features


AUV Power Sections W324-35 Features

line


●  Pump-jet propulsors with small rolling moments are applicable to high-speed AUVs.

● Optical fiber outlets can be reserved.

●  Folding rudder plates are customizable.

● The motor electric control system supports rapid braking.

● An ultra-large voltage applicable range.

Parameters


AUV Power Sections W324-35 Parameters

line



Thruster Parameters





Thrust




At 35 knot




RPM/Power/ Voltage




60KW

256~428VDC




Control mode




①±5V Analog voltage control

②PWM

③CAN

④RS485/RS422







RPM control




①Analog voltage feedback

②Pulse feedback

③CAN

④RS485/RS422




Dimension



Internal diameter 10~16mm

Notes:Dimensions of the connector  are excluded





Steering Engine Parameters





Torque / RPM / Angle




20~30Nm

90°/S

±30°





Steering Engine Voltage



24VDC




Control / RPM Mode




①PWM

②CAN

③RS485/RS422






Auxiliary Functions




①Analog voltage feedback

②Pulse feedback

③Reduction & torque (optional)

④“One for Four” control(optional)




Rudder Plate Dimension


Height 227mm

Width 340mm

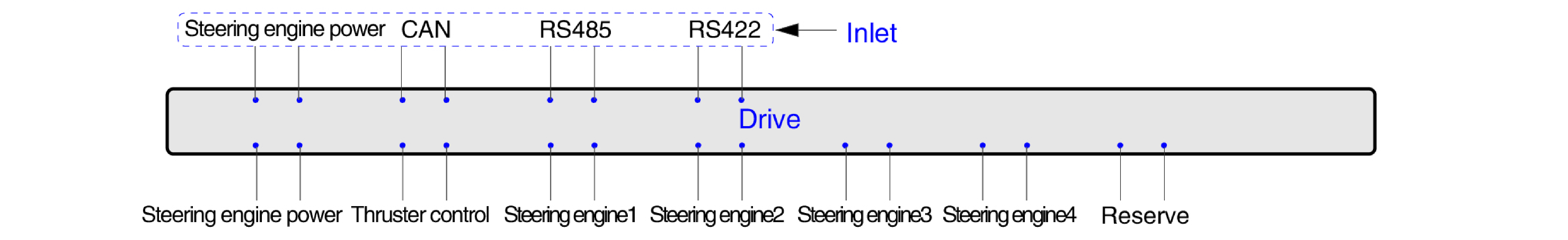

Wiring Instruction



W324-35 (2)

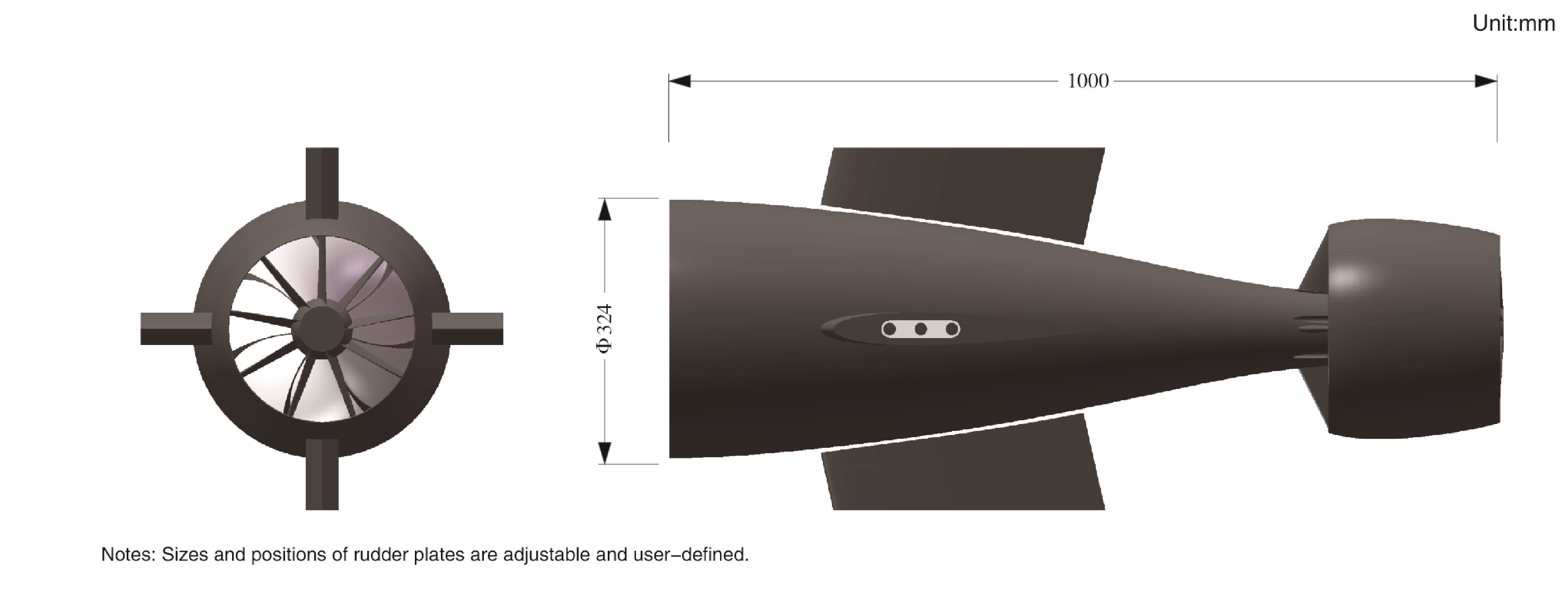

Dimension


AUV Power Sections W324-35 Dimension

line


Dimension



尺寸内页-01(1)



Download



AUV Power Sections W324-35 Download

line


Performance-curves-of-thrusters-with-different-voltage-levels-under-different-power-supply-conditions    W324-35深海AUV高速动力段产品参数单页-中文版.pdf

download (1)
Performance-curves-of-thrusters-with-different-voltage-levels-under-different-power-supply-conditions    W324-35 Subsea AUV High Speed Power Sections Product Specification Sheet-English Version.pdf download (1)


Previous:
Next:

Related Products

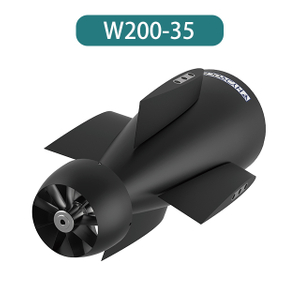

W200-35 High Speed AUV Power Sections
