Application
● This 2-core 26AWG neutrally buoyancy cable is used as a communication cable for ROV or underwater equipments. It is soft, wear resistant, water resistant, and corrosion resistant. One end is a 3-core M10 watertight connector. The blue and white inner cores of the cable are tinned copper, which are respectively connected to the two cores of the watertight connector, the other core is blank. The interior has a shielding layer and 160kg anti-La Kevlar padding.
Features
 | With a 3-core M10 Watertight Connector |
| The Meters Mark the Length from 0m |
| Pull-resistant at 160kg |
| For Transmitting Signals with ROV and Underwater Equipment |

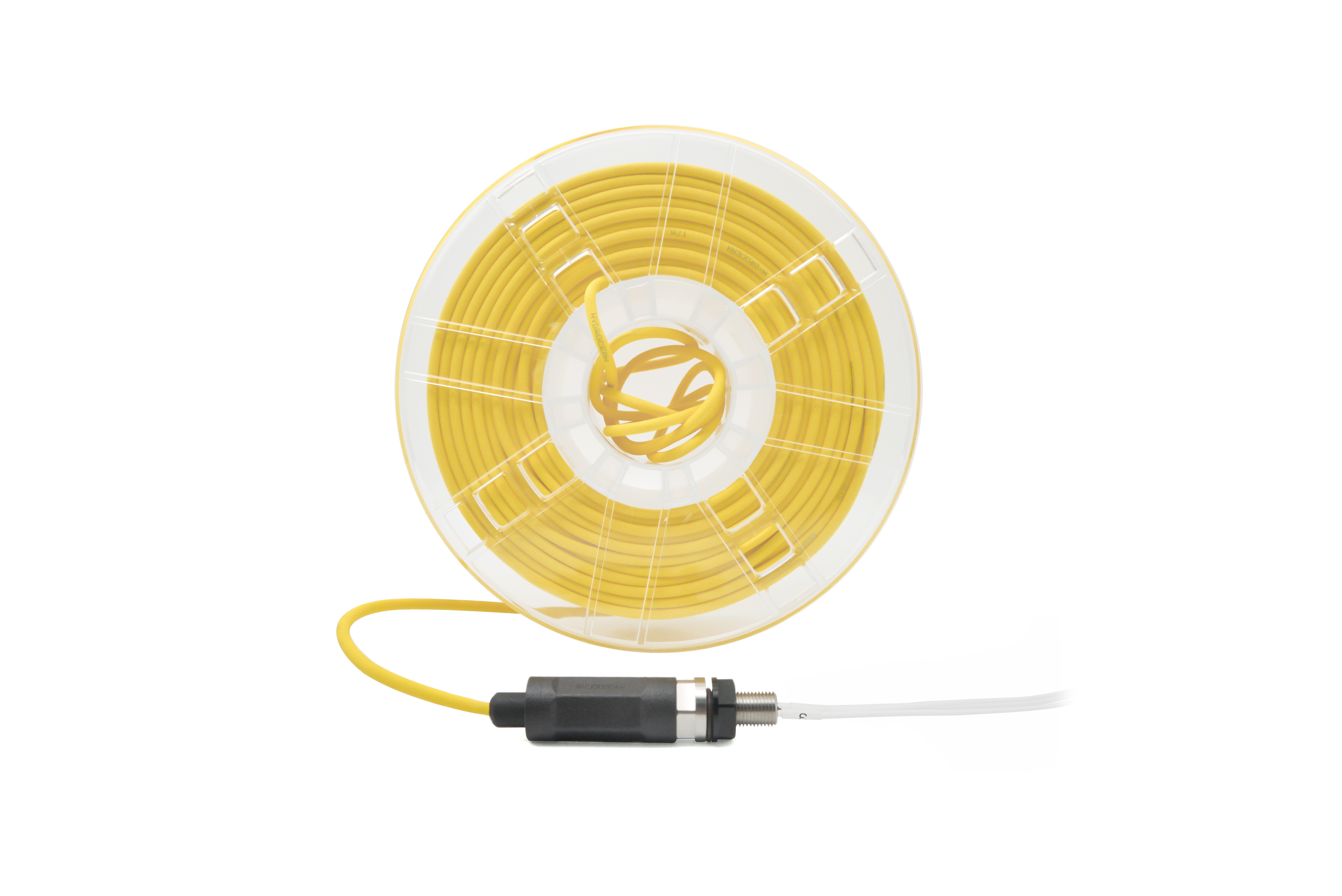

Front view

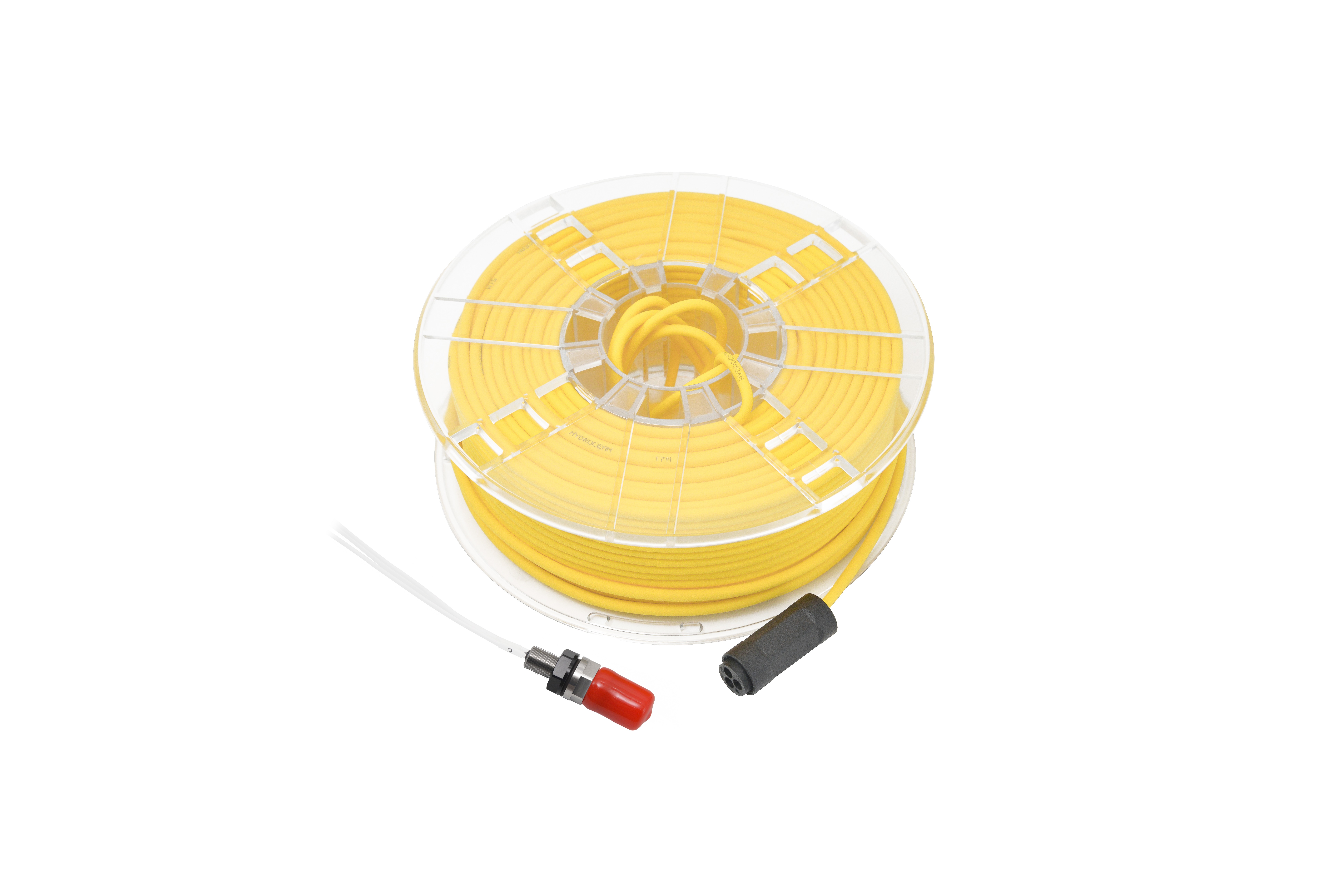

Side view

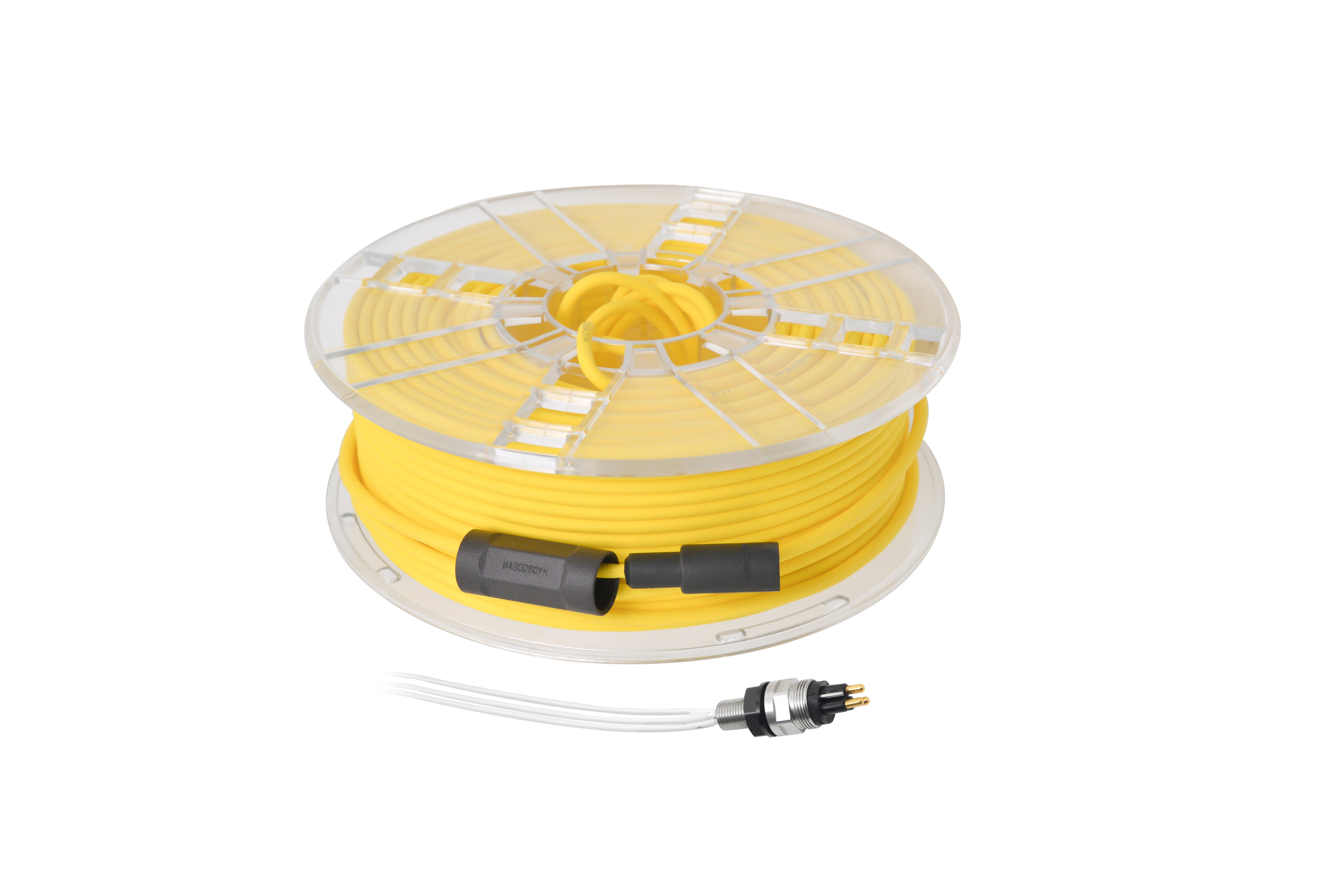

Back view
Specification
| Technical Performance | |||
| Conductor wire gauge | 26 AWG | Cable Pitch | 37 mm |
| Conductor Material | Tinned copper | Cable Outer Diameter | 1.85±0.1 mm |
| Structure | 11/0.1±0.0008 | Wrapping Material | Aluminum Foil, Conducting Outwards |
| Twisted Outer Diameter | 0.42 mm | Filler | Kevlar |
| Insulation Material | HDPE | Filler Structure | 3000D/ beam |
| Average Thickness | 0.25 mm | Number of Filler | 2XBundles Tensile >160kg |
| Wire Diameter | 0.95±0.05 mm | Protective Cover | Polyester Polyurethane |
| Color | Blue / White | Outer Diameter | 4.0±0.1 mm |
| Appearance | Yellow Mist | ||
| Electric Performance | |||
| Maxinum Resistance | < 175 ω | Bending Radius | 6 times Outer Diameter |
| Spark Test | 2500 V | Buoyancy | Neutral Buoyancy |
| Rated Voltage | 300/300 V | Rated Temperature | -40℃~90℃ |

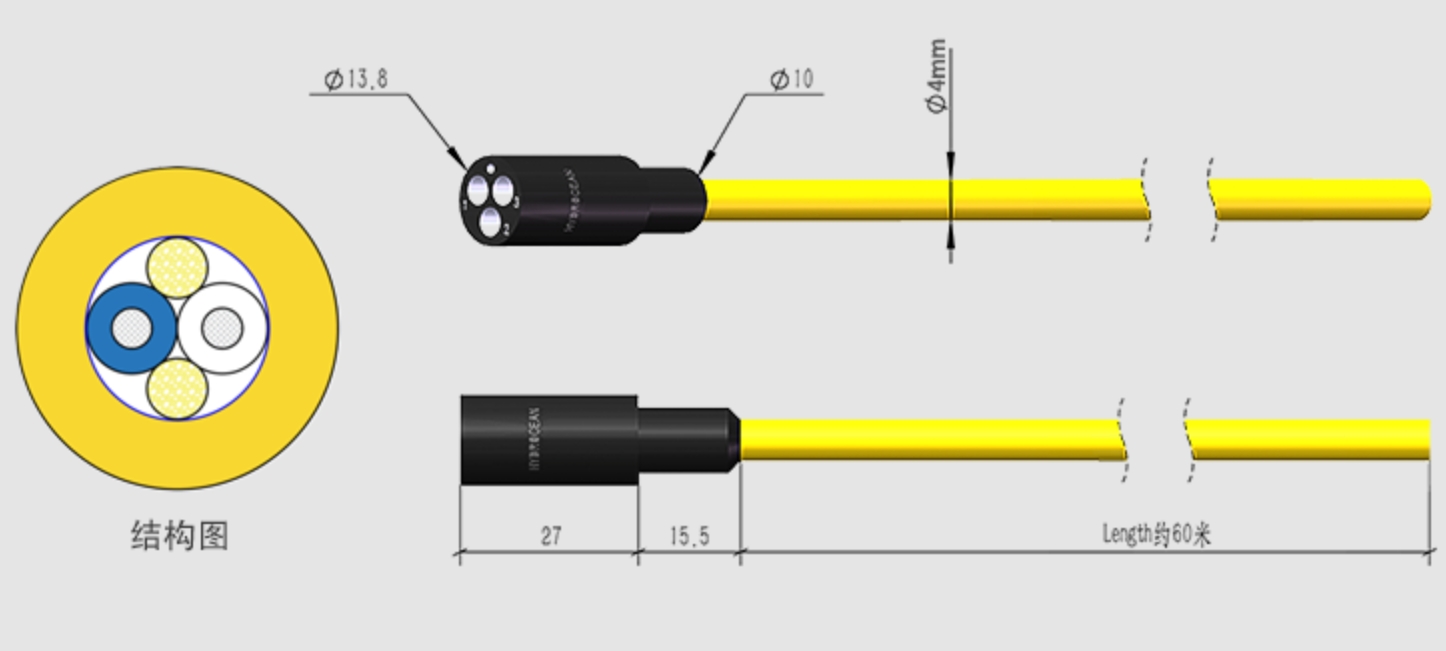

Dimension
