Description

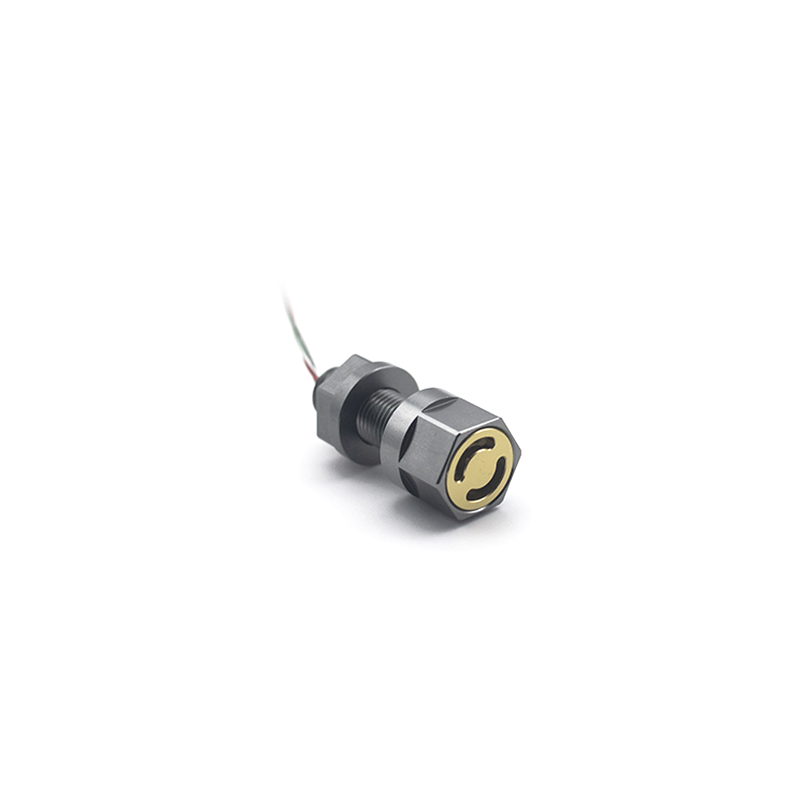

●This pressure/depth sensor is packaged and integrated with TE’s MS5837 series sensor. A protective cover is added to the fragile sensor film while ensuring fluid flow (Still need to be completely dried once per day to prevent drift of reading). Internal suspension and insulation design prevent electrochemical corrosion. This sensor can measure up to 30bar/300m/1000ft depth and communicates over I⊃2;C with temperature sensor accurate to ±1℃ to calibration pressure. The ELEC-DS1-3026 model has the advantages of High chemical endurance & Shielded metal lid.
Dimension
 | Protect cover for gel-filled sensor |
| | Minimization Electrochemical corrosion |
| | Specification of package welding process |
| | Locknut & scratch proof flange |
Specification
| Supply Voltage | 5V | Length of Connector Wire | ~350mm |
| I⊃2;C Logic Voltage | 3.3V | Operating Depth | 300m |
| Peak Current | 1.25mA | Maximum Mechanical Pressure | 50bar |
| Mating Connector | 1.25mm-4P | Operating Temperature | -20~85℃ |
| Connector Pin Configuration | RD- POSITIVE SUPPLY | Absolute Accuracy | ±1.5℃ when used between 0-60℃ |
| GR- I2C CLOCK | Sensor inside ELEC-DS1-3050 | TE MS5837-30BA50 *Compatible with Ardusub. | |
| WH- I2C DATA | Sensor inside ELEC-DS1-3026 | TE MS5837-30BA26 | |
| BK- GROUND | Weight | 15g |
高化学耐久性和金属屏蔽，增强的结构和设计，材料允许在苛刻的液体介质环境中暴露，增强的化学耐久性。

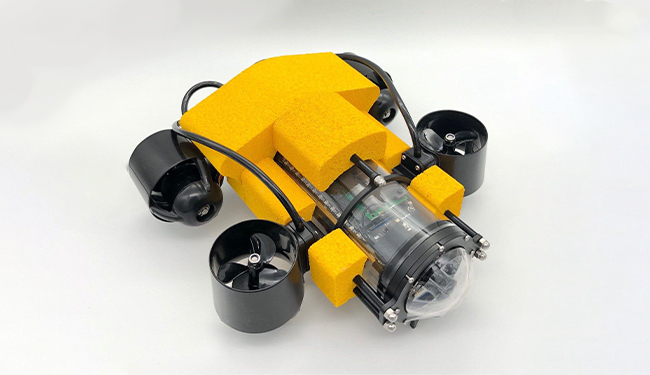

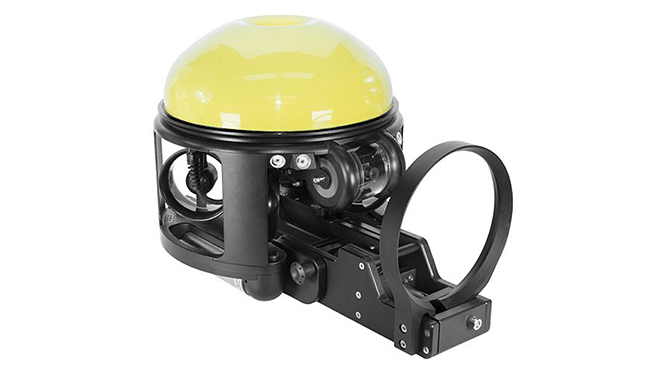

Using Display
