Application
● This 500Mbps PLC Board is a new data transmission product based on IEEE 1901 & HomePlug AV standards. Provide the standard Ethernet port, mainly used in the cable communication of underwater robots. No configuration is required, modular design plug and play.
● Support a variety of transmission media, using multiplexing mode of transmission, can be applied to existing cables, frequency division multiplexing to CATV, power lines, broadcast lines, etc.
Power line mode - complete the last 300 meters of IP access;
Twisted pair mode - complete the last 600 meters of IP access;
Coaxial cable mode - complete the last 2000 meters IP access.
● Speed
Theoretical transmission rate up to 500Mbps;
Smoothly transmit IPTV, HDTV and other audio and video signals.
● Reliability
Supports 128bit AES encryption to ensure network communication security.
Occupy 2-68MHz frequency band communication, no impact on the existing CATV signal or cable broadcast;
Complies with IEEE 1901 and HomePlug AV standards with up to 7 modules.
● Simplicity
No user configuration is required, it can be used after wiring is completed;
Modular design for easy integration into other products, speeding up the time-to-market.
Features
 | IEEE 1901 and HomePlug AV Standard |
| 2000m max communication distance |
| 500M High rate stable signal |
| Small size with low heat |

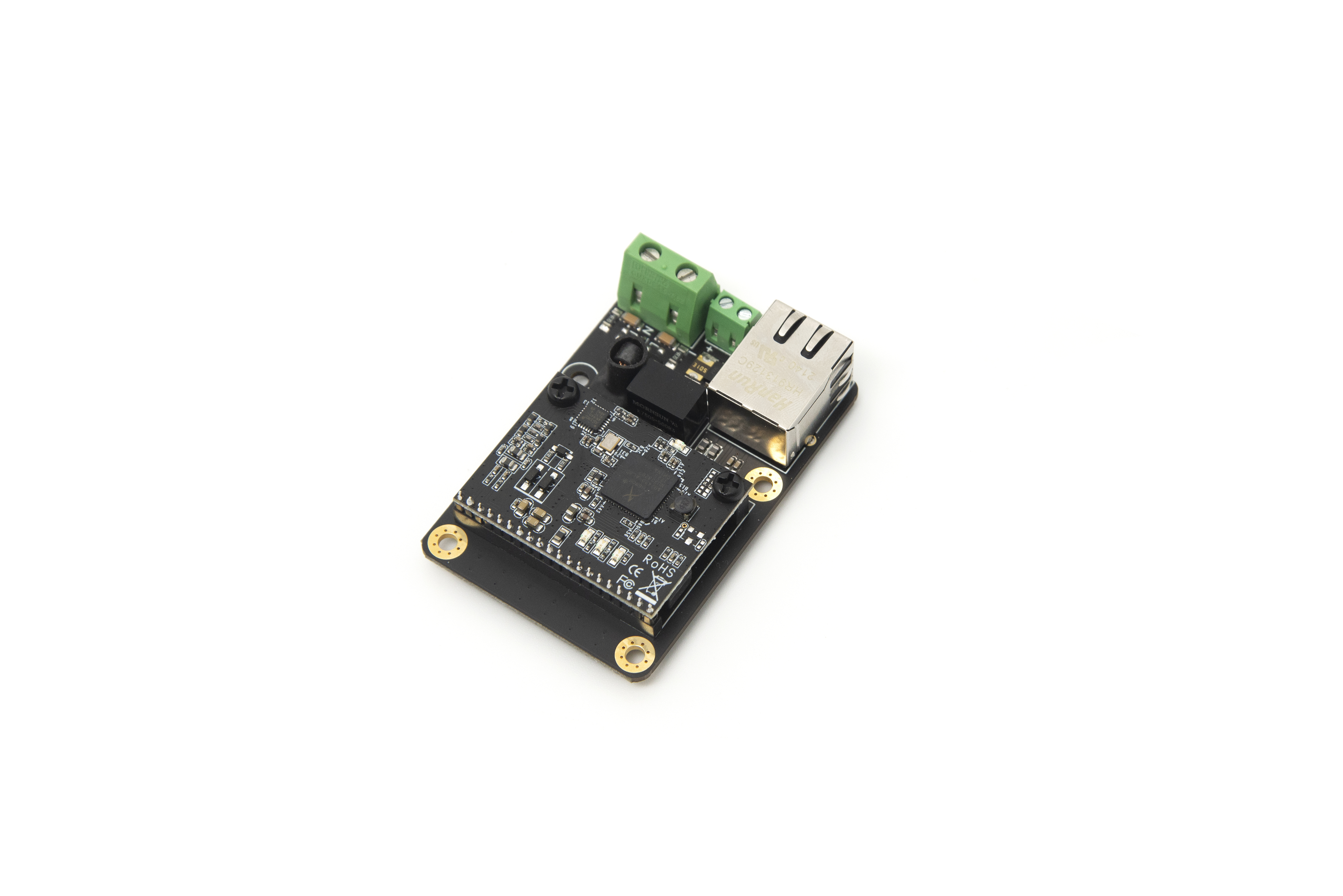

Front view

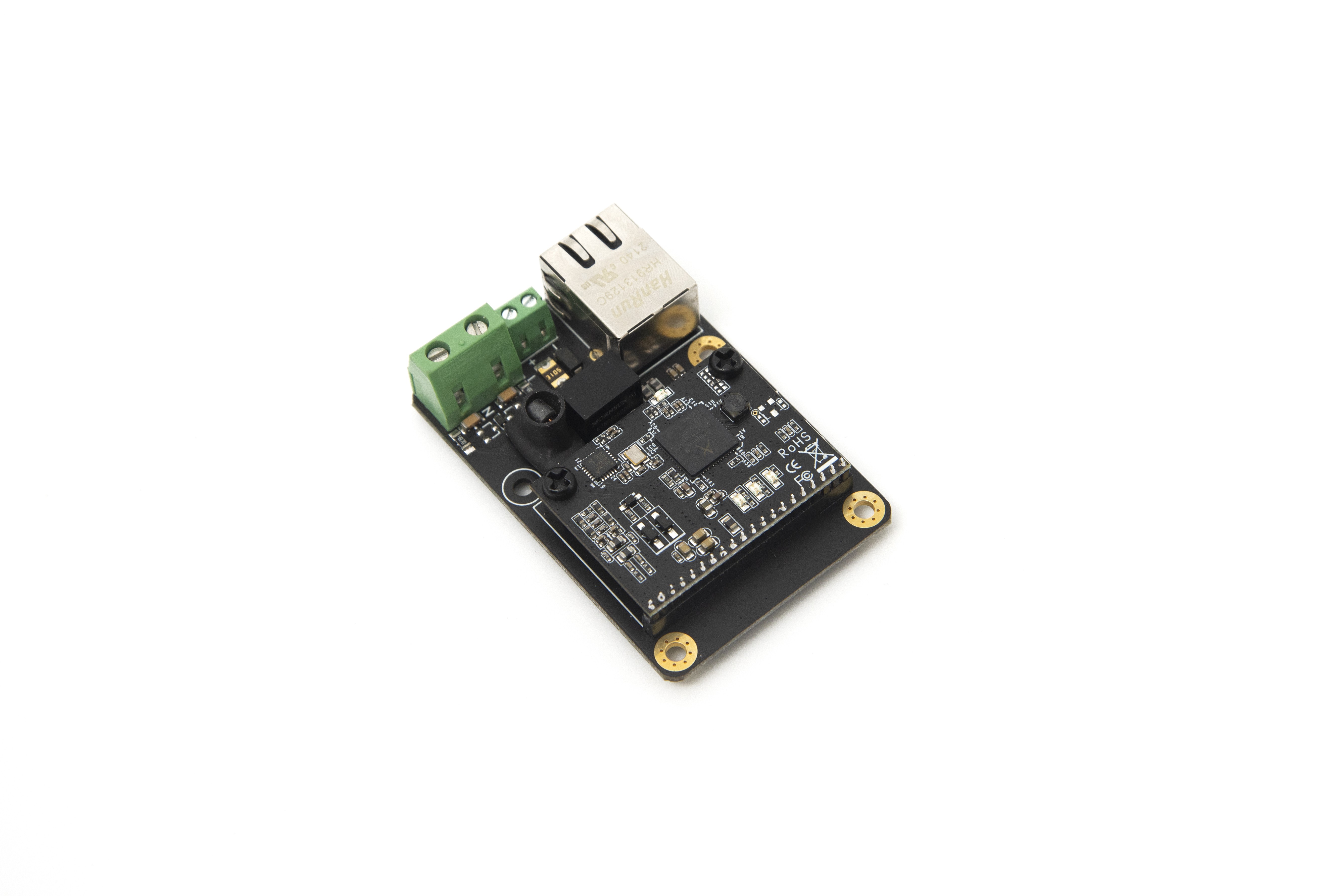

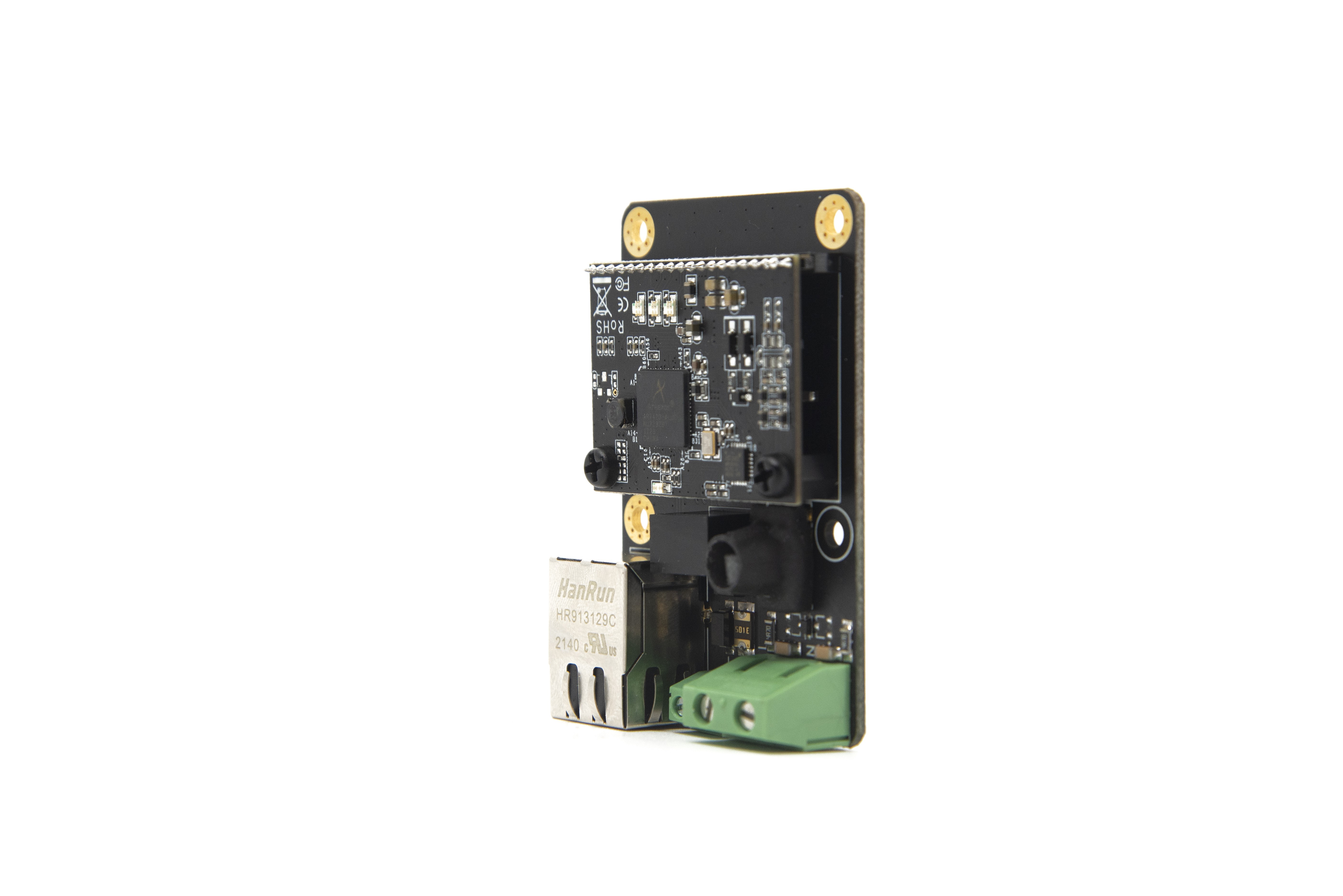

Side view

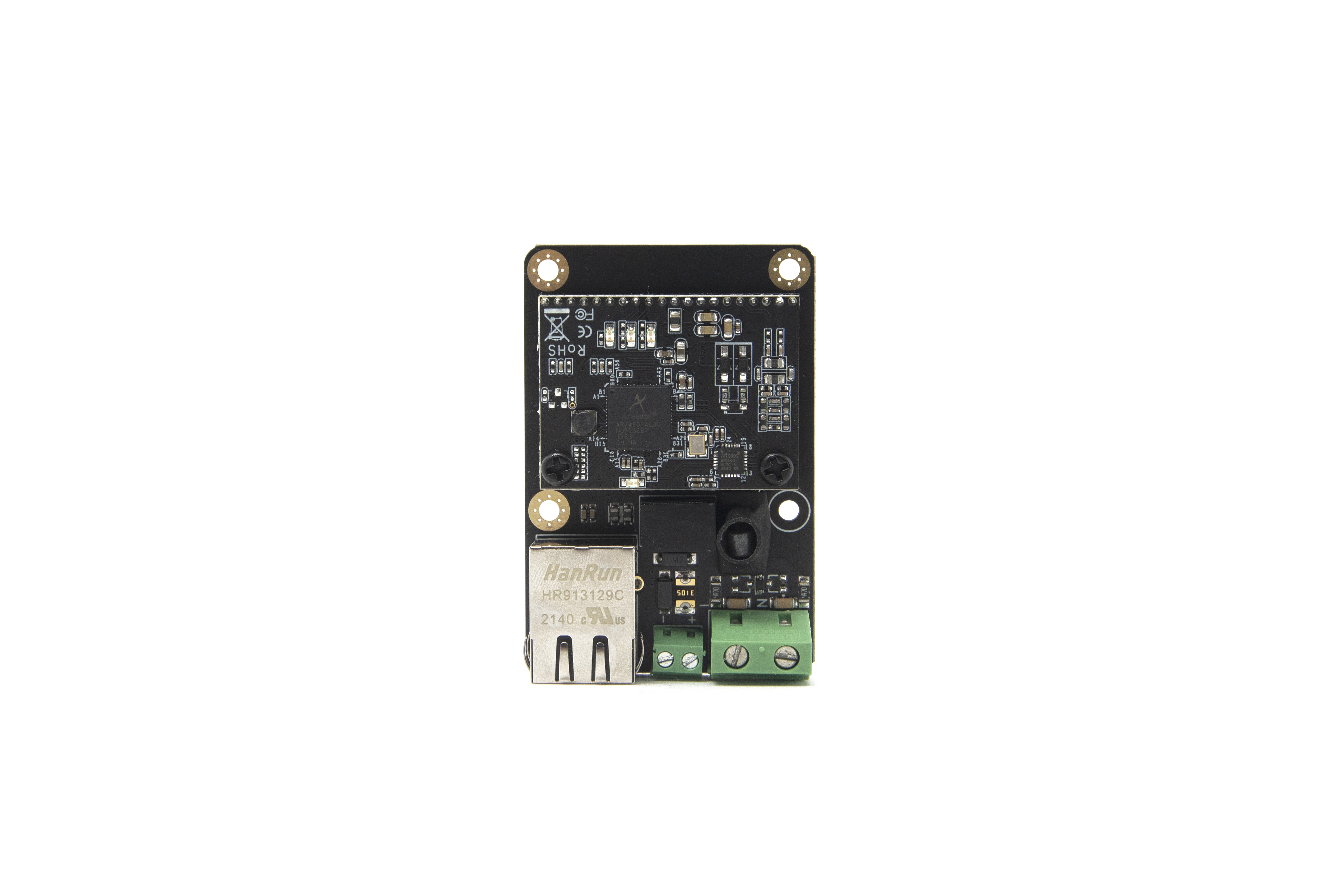

Back view
Specification
| Supply Voltage | 9V-13V | Size | 68mm × 46mm (L×W) | |
| Power Dissipation | ＜2W | Working Humidity | 20% -85% Non-condensation exposure | |
| Working | -20℃ - +70℃ | Maximum voltage | 250VAC/400VDC | |
| Temperature | on the power line | |||
| Indicator Lamp | PWR: the power supply indicator lamp | |||
| ETH: network port ACT lamp, flashing when there is data flow | ||||
| PLC: Signal transmission indicator lamp | ||||
| IP Interface | 10 / 100M adaptive ethernet port (Auto MDI / MDIX) | |||
| IP Standard | IEEE802.3 / IEEE802.3x / IEEE 802.3u Auto MDI (X) / IEEE 802.1P / IEEE 802.1Q | |||

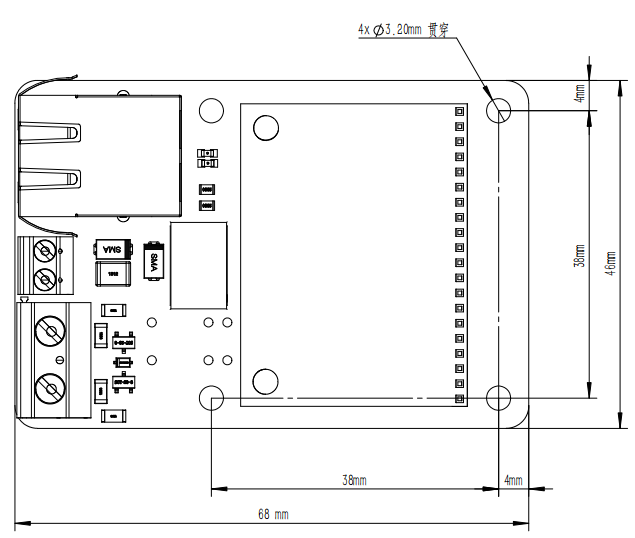

Dimension
