OD110 Enclosure Internal bracket

Hydrocean is experienced in subsea propulsion. We developed supper cost-effective 6 thrusters and 8 thrusers underwater Rov with open source mode, modular design and HD USB camera . The affordable education ROV and related parts are specially developed for student training,science and technology innovation competition, teaching and research. Welcome to contact us, talk to us about your Educational selection.


Availability:



Inquire

Application

OD110 Enclosure Internal bracket Description

line

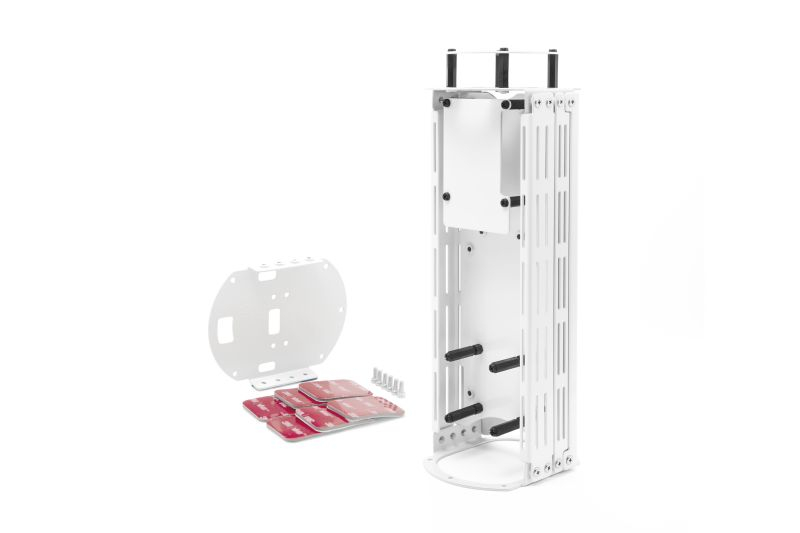

●OD110 enclosure internal bracket is suitable for OD110 mold watertight enclosure, divided into 4 layers. It is reserved for Raspberry Pi, PIX, ethernet through powerline module,PLC ethernet switch, power management board, terminal block and other device location.

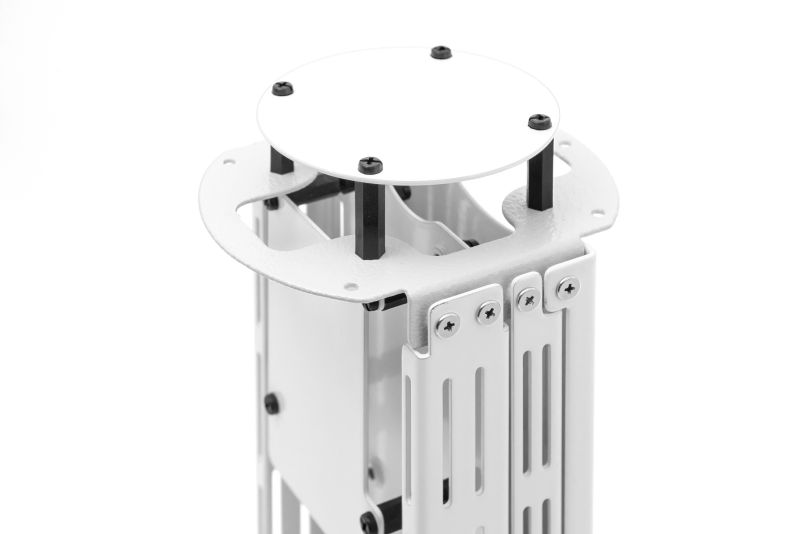

● When the hole position is incompatible, 3M glue can be used to install the internal components. It is equipped with notchs on the side for crossing the wires. he bracket comes with a set of dome and end cap mounting plate( not two sets of complete bracket, but one set with two types of mounting plates). The dome mounting plate is adapted to the USB tilt camera.

Features
