Application

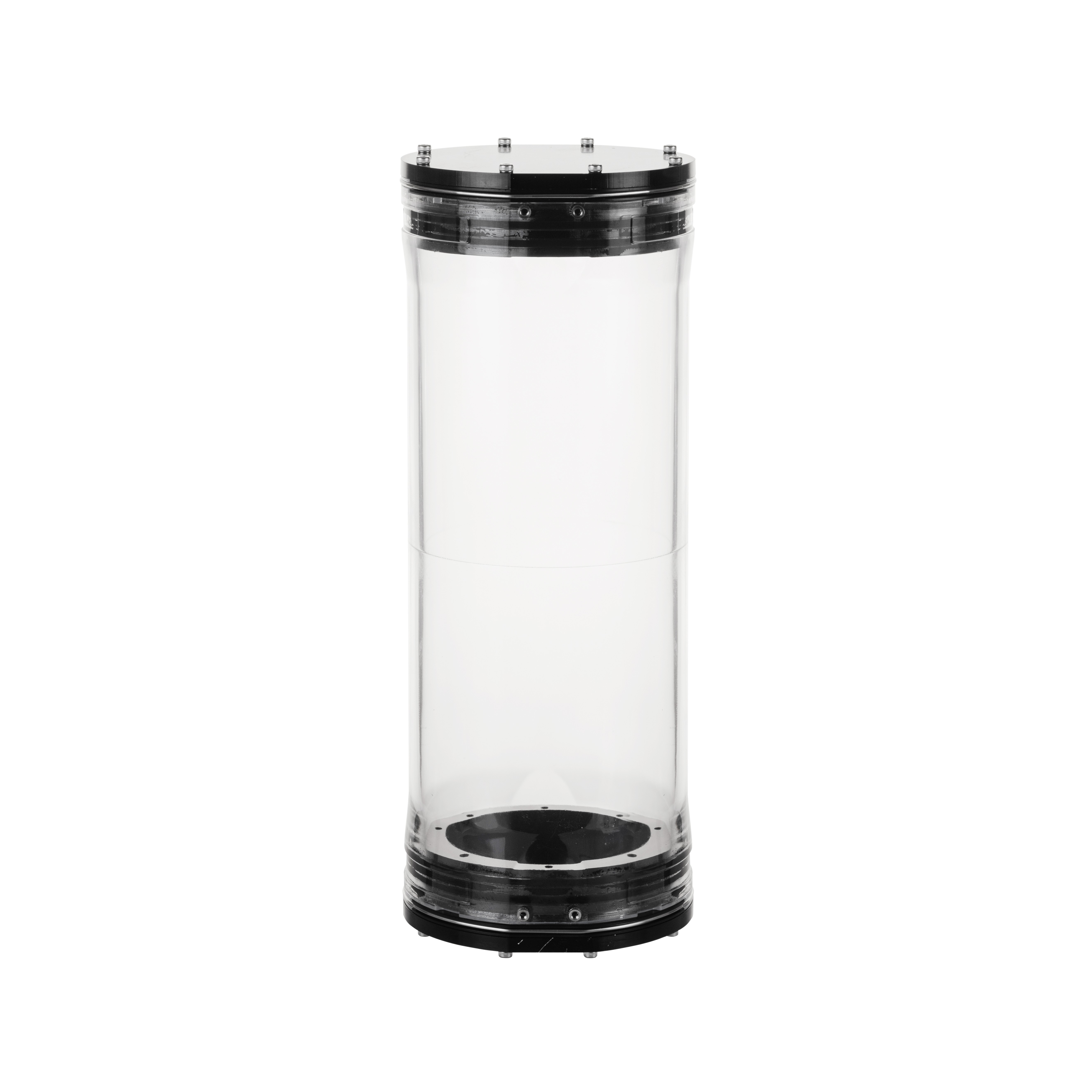

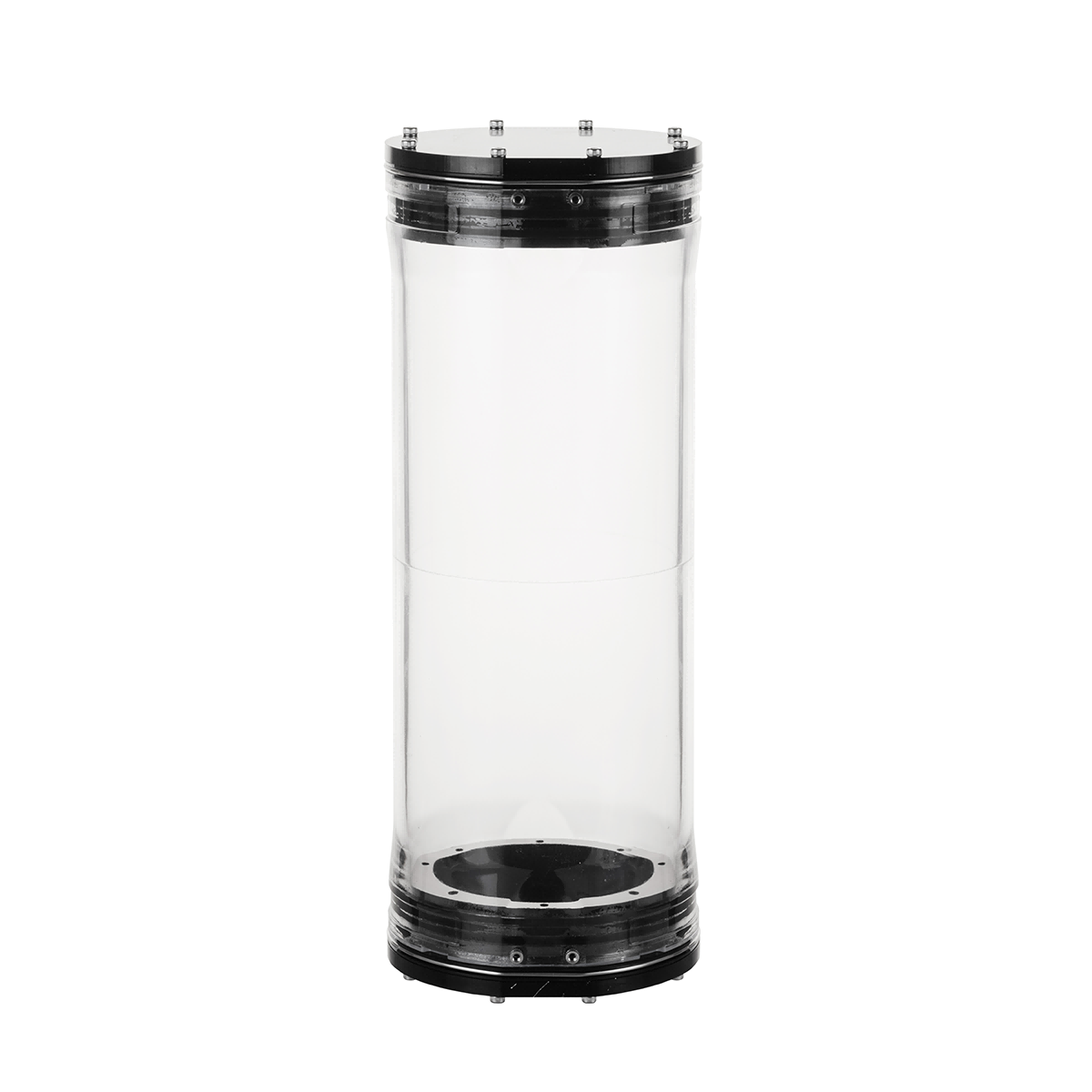

● This OD110 watertight enclosure is made of high-strength Transparent PC materials. After preasure test, it is suitable for use in water depth of 100 meters. The tube has no threaded holes, but is fixed by elastic ring, which improves durability and reduces disassembly loss.

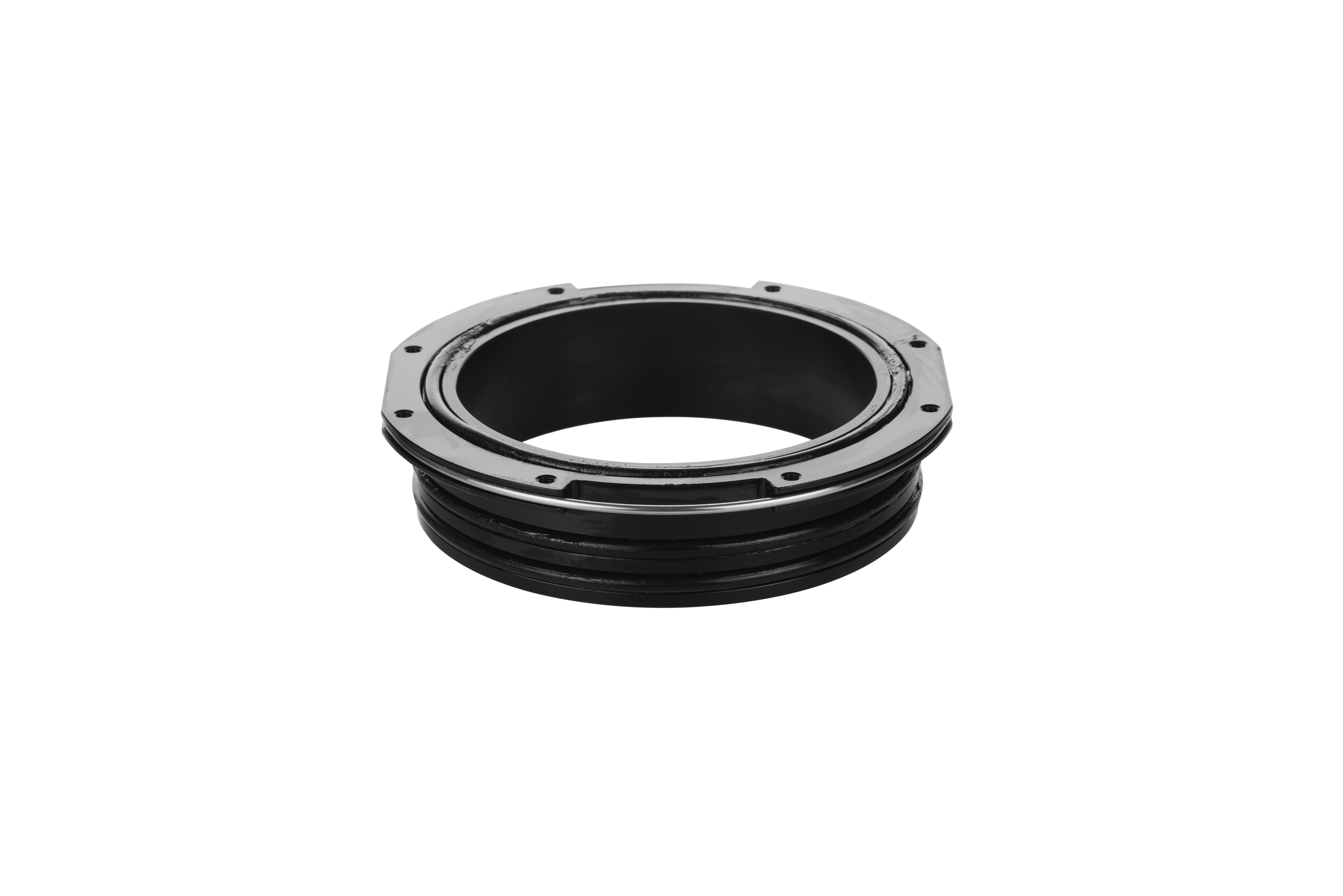

● The step structure of the flanges and tube can position the mounting angle. The flanges can be removed without tools, and the installation is also reliable. Bulk purchase can be customized color and surface treatment: sandblasting, plastic spraying, etc. The watertight enclosure needs to be used with a separate end cap or dome, and there is no threaded install hole on the tube.
Features
 | High Strength Transparent PC Material |
| 150 Meters Depth Max |
| Quick Remove Flange |
| Color can be Customized when Batch |
Front view
Side view
Back view
Specification
Inner Diameter | 100mm | Tube Length | 280mm |
Tube Weight | 624g | Flange Material | Aluminum alloy black oxidation |
Flange Weight | 179g | Depth | 150m |
| Threaded Install Hole | None | ||
Packing List
- WTE-1028-KIT : 1×Tube + 2×Flange + 6×O-ring for flange

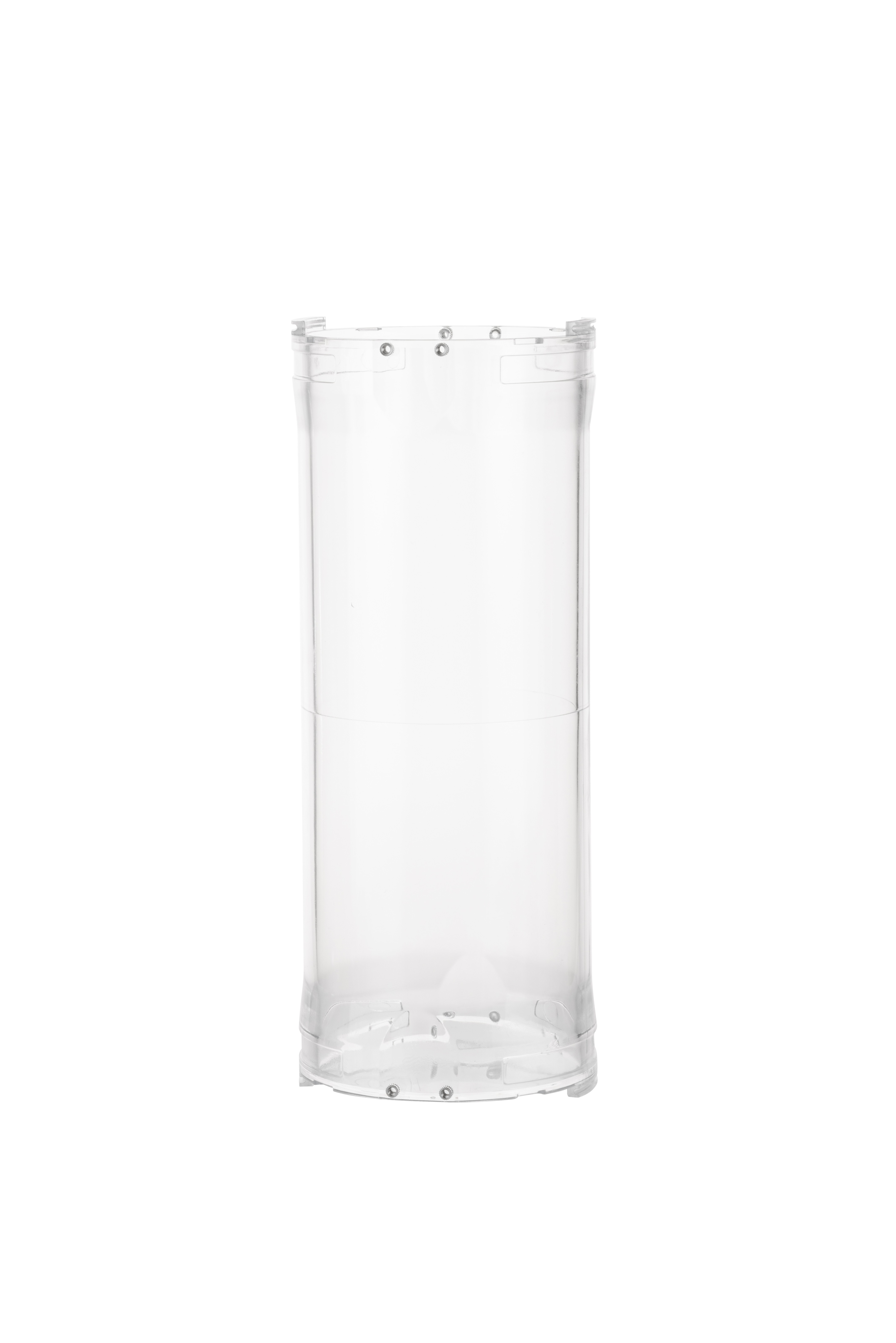

- WTE-1028-C : 1×Tube
- WTE-1028-ORING6 : 6×O-ring for flange

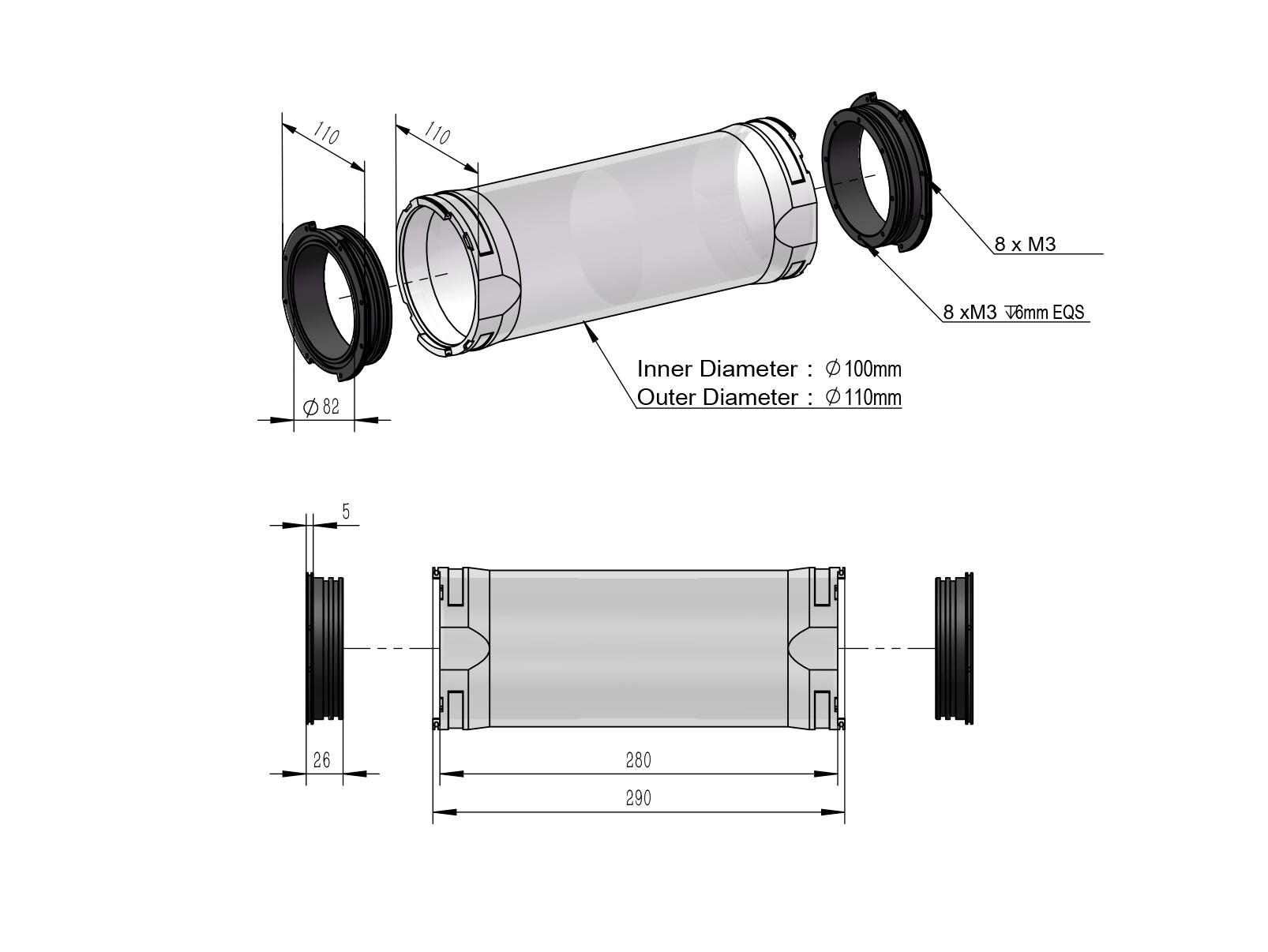

Dimension
