Application
● This ESC is designed for underwater motors and underwater thrusters. It is suitable for three-phase brushless DC motors and is also suitable for application scenarios other than underwater. Both hardware and software are optimized for underwater applications.
● It has two modes: PWM speed regulation mode and high&low level control mode. When V- and S are connected, it will automatically run at maximum speed and start slowly after power-on, which is called high&low level control mode. The gold-plated interface can be soldered directly or screwed to the PCB onboard nut.
Features
 | Dual mode controller |
| Wide voltage range and large current |
| Onboard installation |
| PWM bidirectional speed regulation |
| Start blocking protection, run blocking protection, temperature protection |

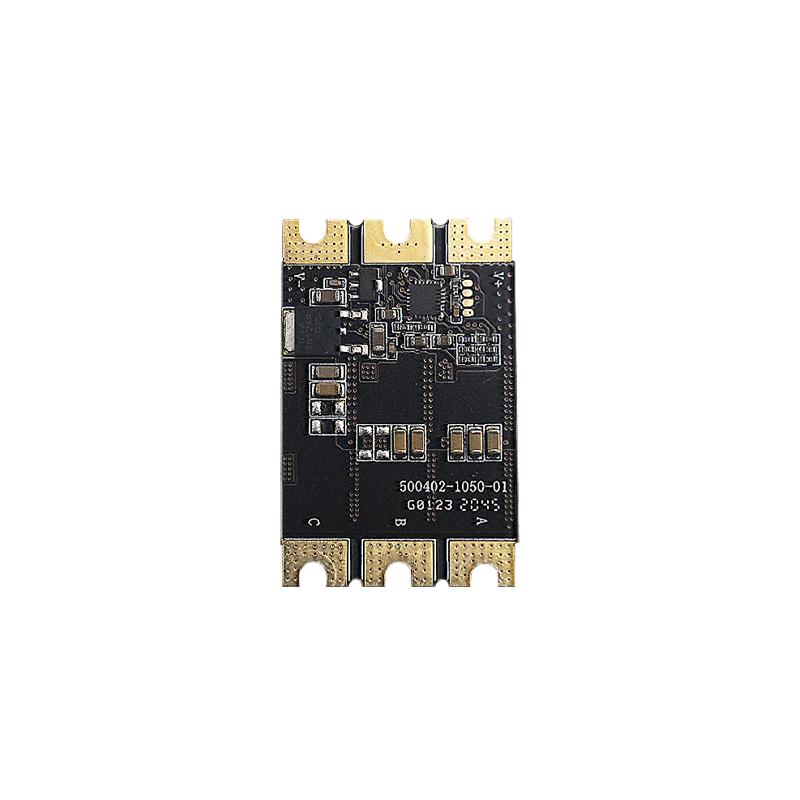

Front view

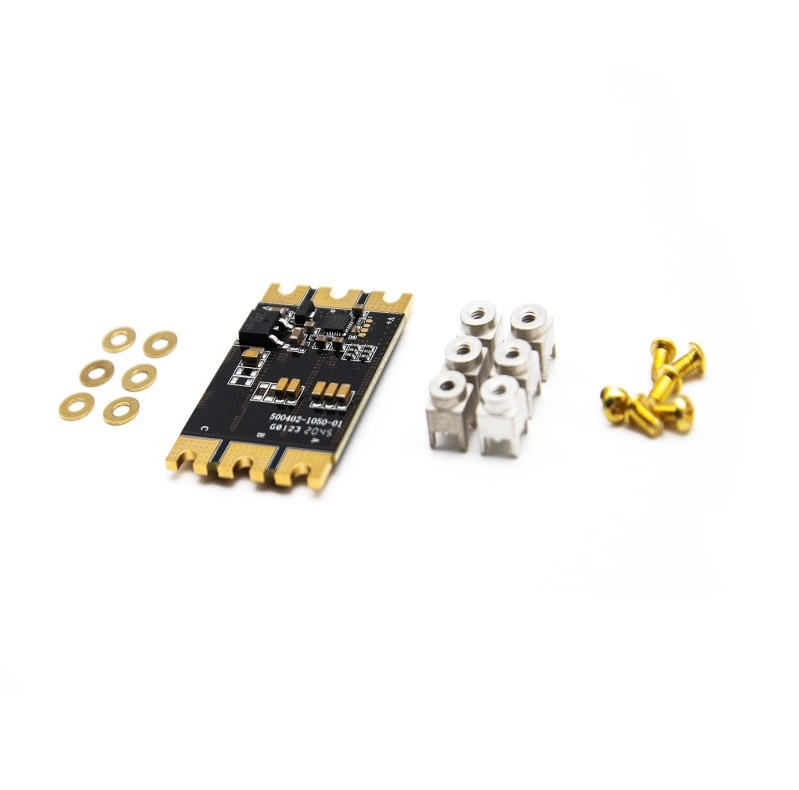

Set view

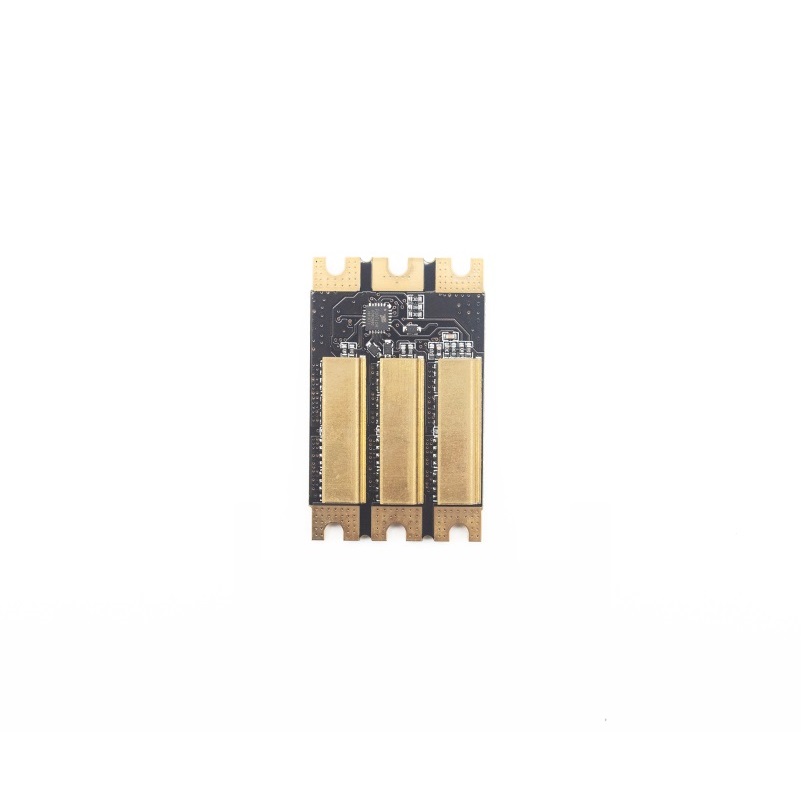

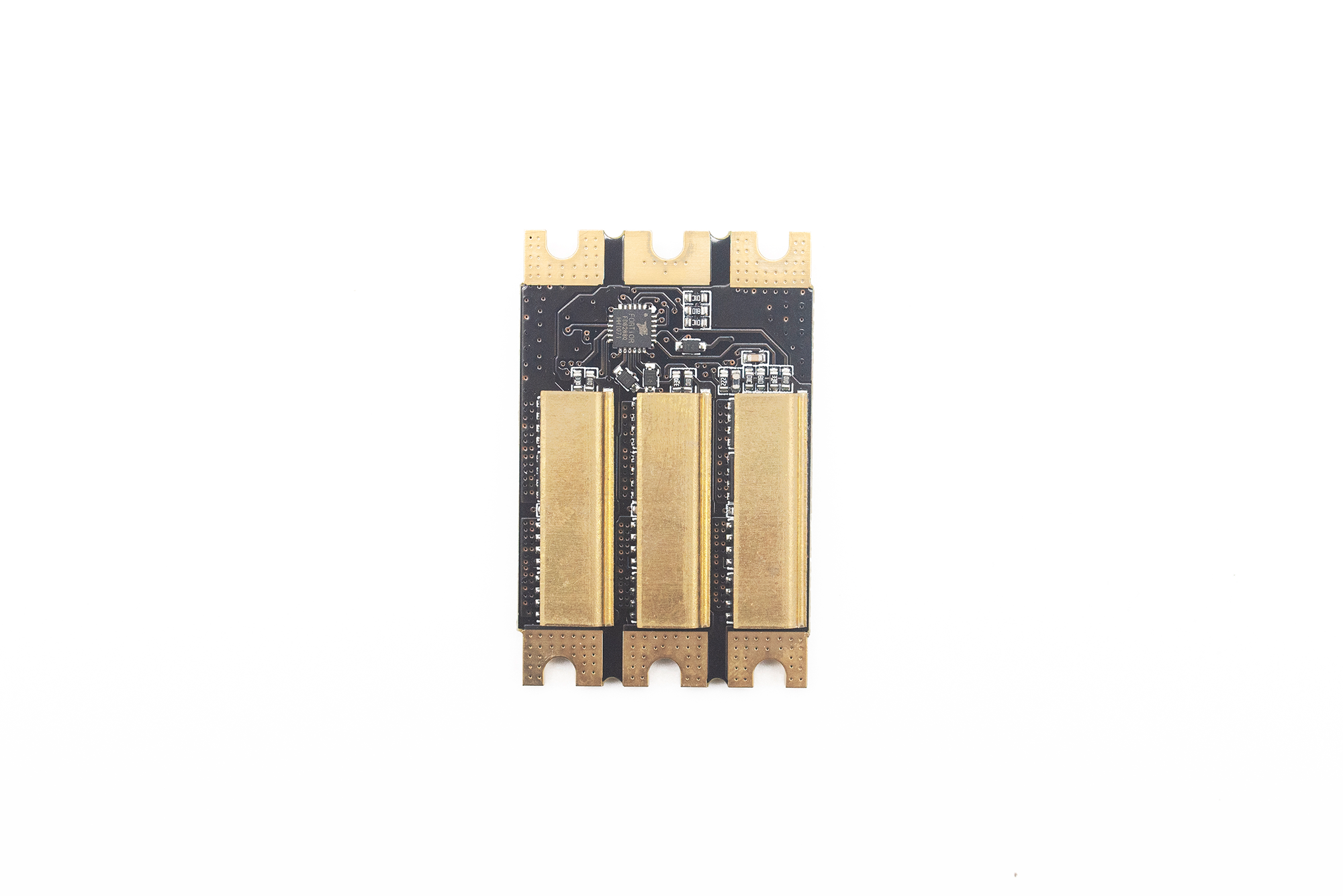

Back view
Specification
| Model | ELEC-ESC-35DM | |
| ELEC-ESC-35DMKIT | ||
| Basic | ||
| Input Voltage | 3-6S | LIPO |
| Rated continuous current | 35A | Good heat dissipation |
| Instantaneous current | 45A | Good heat dissipation |
| BEC | No BEC | / |
| Standby power | 12MA | 25.2V |
| Weight | 11.5g | / |
| Size | 48*31*5.5mm | ±1mm |
| Power Mosfet | QM3098M6 or equivalent | 12pcs |
| Input capacitance | 47UF 25V | 6pcs |
| Software | ||
| Pulse Width Signal range | 1.PWM mode: 1000us-1500us-2000us, 2. High and low level control mode： low/run high/stop | throttle cannot be calibrated |
| Signal Deadband | 1.PWM mode：50us 2. High and low level control mode：No | |
| Max Update Rate | 1.PWM mode： 50-490HZ 2. High and low level control mode：No | |
| Response speed | 1. 1.PWM mode： 300ms, 2. High and low level control mode： 2s | Stop to full speed |
| Supported maximum RPM | 210KRPM | |
| Protection | Start blocking protection, run blocking protection, temperature protection | unable to be set up |
| Working Environment | ||
| Operating temperature range | -10℃～85℃ | ±5℃ |
| Ambient temperature range | -10℃～50℃ | ±5℃ |
| Operating humidity range | 15%～85% RH | ±5% RH |
| Storage temperature range | 0℃～30℃ | ±5℃ |
| Storage humidity range | 15%～65% RH | ±5% RH |

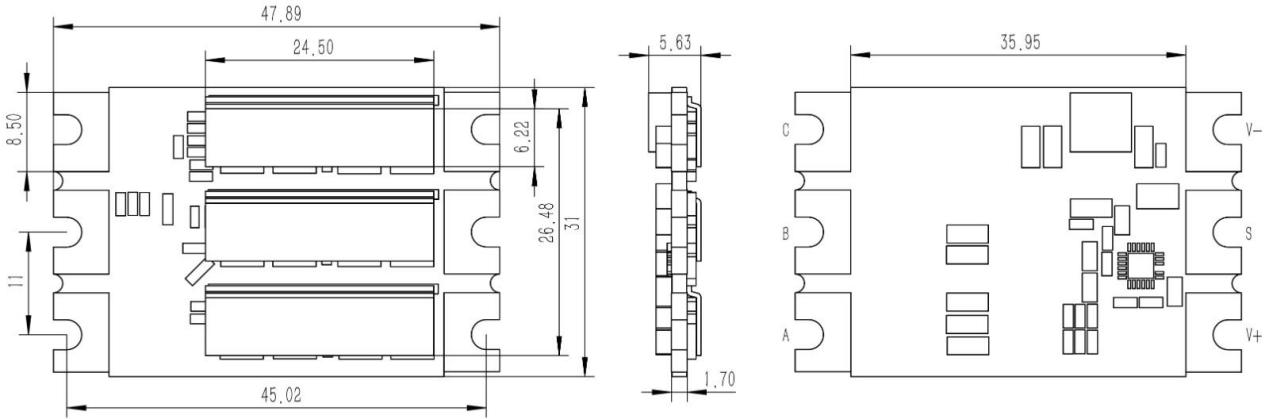

Dimension
