Application
● The P75 thruster is designed for underwater robots, surface vessels and subsea equipment. It has the characteristics of fast disassembly without screws, And you can choose a detachable Weed Guard, the propeller and weed guard can be replaced without removing the mounting screws.
● The thruster is an open-water construction, and the materials selected are suitable for Marine use. The low cost design allows for quick replacement without maintenance.
 | Different voltage platform selection |
| Interchangeable with T200, same mounting size and similar volume |
| Large thrust and low current |
| High strength shell material |
| Quick disassembly |
Introduction
| Model | MOT-P75-170（Standard match weed fence and reverse propeller） |  | ||
| MOT-P75-290（Standard match weed fence and reverse propeller） | ||||
| MOT-P75-WG（anti-waterweed fence） | ||||
| Length | 128mm | Blade diameter | 75mm | |
| Diameter | 101mm | Cable length | >90cm | |
| Weight | 450g | Mounting holes | 4×M3 | |

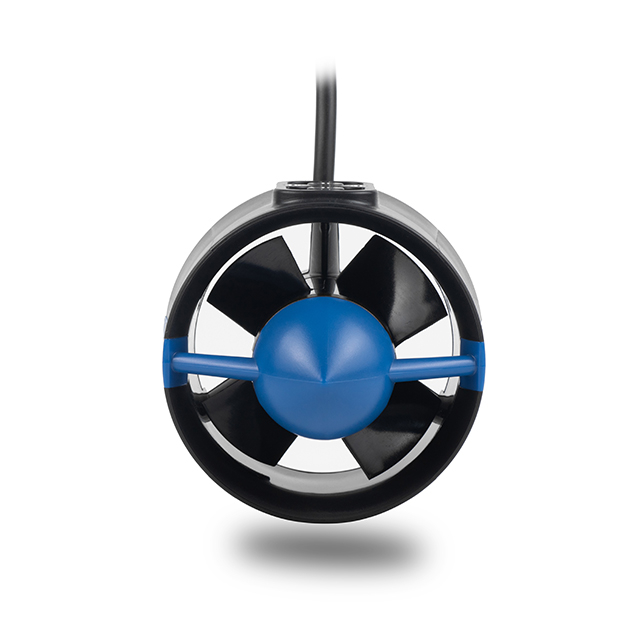

Front view

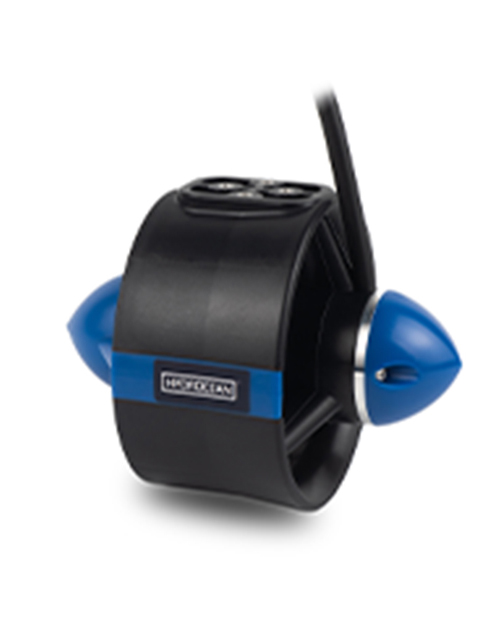

Side view

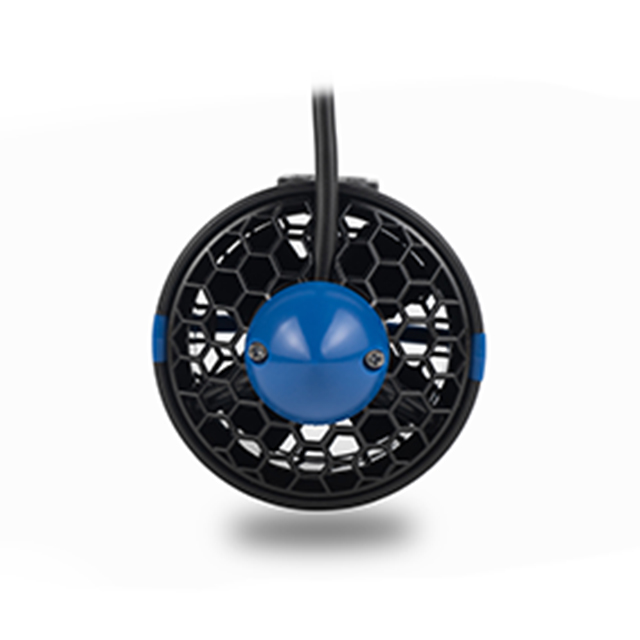

Rear view
Parameters
| The MOT-P75-290 without weed fence | ||||
| Reverse | Forward | |||
| Voltage | Maximum Current | Thrust | Maximum Current | Thrust |
| 10V | 8.3A | 2.4KG | 9.2A | 2.9KG |
| 12V | 10.5A | 3.0KG | 11.7A | 3.6KG |
| 14V | 12.7A | 3.8KG | 14.6A | 4.6KG |
| 16V | 15.2A | 4.5KG | 17.3A | 5.4KG |
| 18V | 17.8A | 5.4KG | 19.9A | 6.4KG |
| 20V | 20.3A | 6.3KG | 23.0A | 7.1KG |
With weed guard, the thrust will be down by nearly half and the current will be slightly increased.
With a single weed guard, the thrust is reduced by about 1/4.
| MOT-P75-170 without weed fence | ||||
| Reverse | Forward | |||
| Voltage | Max Currrent | Thrust | Max Currrent | Thrust |
| 10V | 2.5A | 1.1kg | 3.0A | 1.4kg |
| 12V | 3.3A | 1.6kg | 3.8A | 1.9kg |
| 14V | 4.8A | 2.1kg | 5.5A | 2.6kg |
| 16V | 5.2A | 2.6kg | 6.2A | 3.2kg |
| 18V | 6.2A | 3.0kg | 7.2A | 3.7kg |
| 20V | 7.1A | 3.5kg | 8.7A | 4.4kg |
| 22V | 8.3A | 4.1kg | 9.9A | 5.1kg |
| 24V | 9.5A | 4.7kg | 11.0A | 5.8kg |
| 26V | 11.0A | 5.5kg | 12.0A | 6.5kg |
| 28V | 12.1A | 6.1kg | 13.2A | 7.0kg |
| 30V | 13.1A | 6.7kg | 15.1A | 7.8kg |
With weed guard, the thrust will be down by nearly half and the current will be slightly increased.
With a single weed guard, the thrust is reduced by about 1/4.
Comparison with T200 (The main competitor of this product is T200 propeller, so the comparison chart is made)
| P75 VS T200 | ||
| P75 | T200 | |
| Customazitional | rotating speed can be customized with different voltage and model | single type string uncustomizable |
| Bearing | specialized for seawater it can Rotate in the air it sounds good | plastic material It can not Rotate in the air It sound harsh |
| Thruster current | 11A 5.8kg 24V（170） 11.7A 3.6kg 12V （290） | 25A 5kg Max 16.8V 16.7A 3.7kg 12V |
| Dimension | same installation dimensions, similar volumes, interchangeable | |
| Disassembling method | quickly disassemble tail and propellers Not need to disassemble the entire propeller | the entire propeller needs to be removed for maintenance |
| Files | 3D drawings | 3D drawings |
| Outlet | watertight connectors optional | outlet directly |

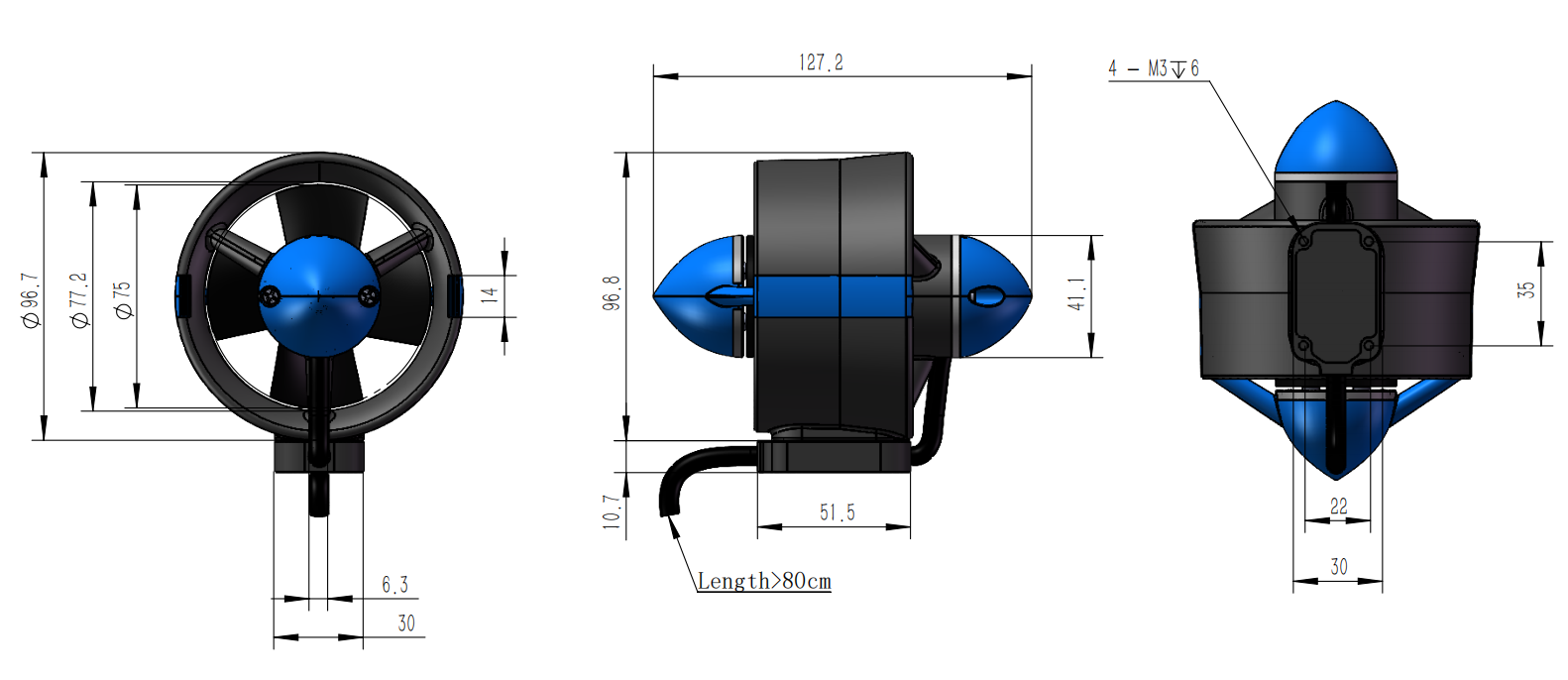

Dimension

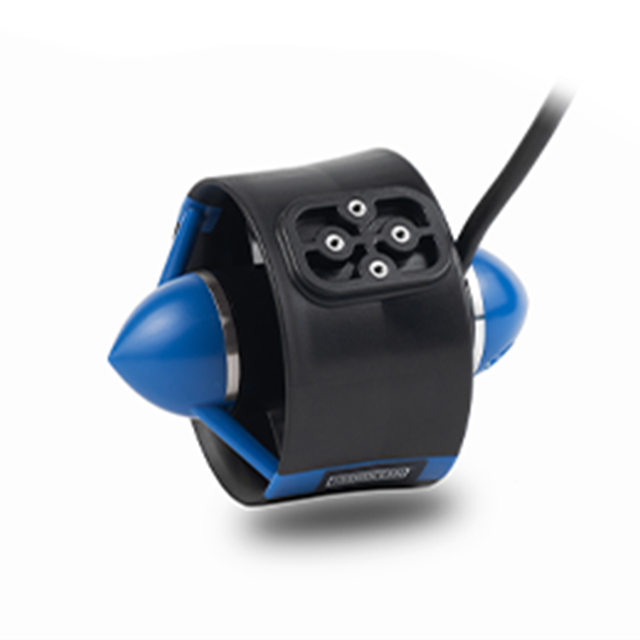

Using Display
