Application
● The 3754 underwater motor is a brushless motor specially designed for underwater application.
Features
 | Resin filled stator |
| Stainless steel bearing |
| Aluminum alloy housing |
| Surface corrosion resistant magnets |

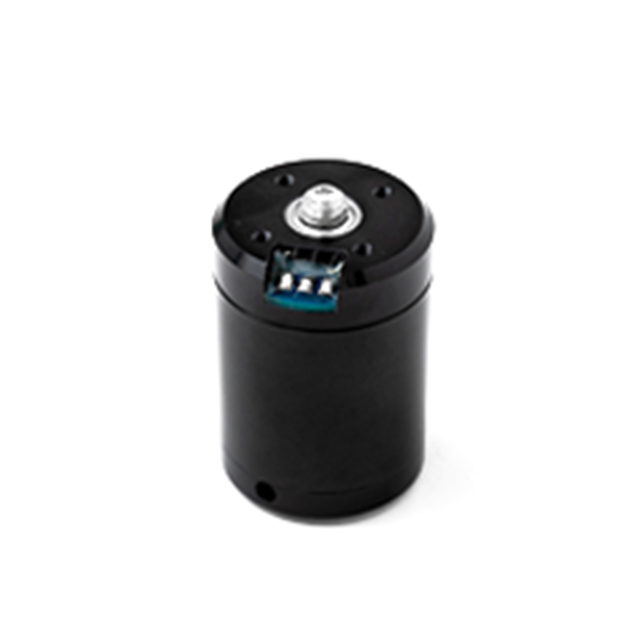

Front view

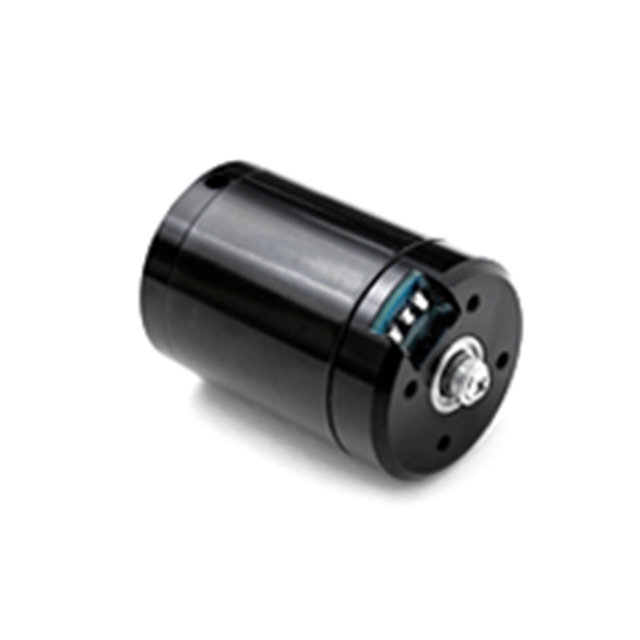

Side view

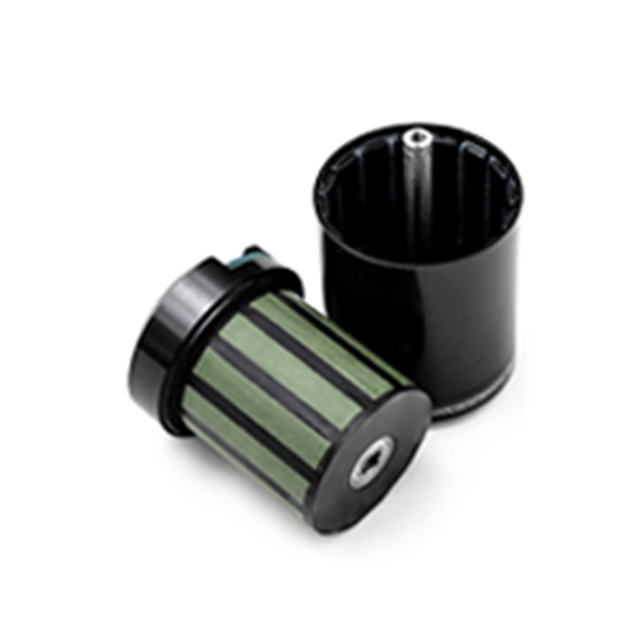

Inside view
Specification
| MOT-3754-170 MOT-3754-290 | |||
| Weight | 220g | No load current | 300MA±50MA |
| Voltage | 24V | Load RPM | 2600RPM±8% |
| Phase | 3 | Load current | 10000MA±50MA |
| Operating temperature | -10-65°C | Terminal resistance | 56MΩ±10% |
| No load RPM | 4000±5% | Noise | 80DBA MAX |
HAZARDOUS MATERIAL：
All material used for this product must comply with RoHS and shall beregistered and/or known safety substance unless otherwise noted.
Specific chemical substance should not be used.
For proper operation, storage environment should not contain corrosive gases including H2S, SO2, NO2, Cl2, etc. Storage environment should not have material that may emit corrosive gases especially from organic silicon, cyanic, formalin and phenol base.
In the mechanism or the set, existence of corrosive gases may cause no rotation in motor.
STORAGE :
Storage under above atmosphere and high temperature, high humidity should be avoided. Especially when the product need to be long period storage, please be more carefully, and storage period should be within 6 months under ordinary temperature and humidity.
OVERLOAD :
Excessive load should not be added on the motor, otherwise the motor may be damaged. Don’t use the motor under overloaded and locked condition more than 10 seconds.
STATIC ELECTRICITY :
Take anti‐ static electricity measuring while touching, checking and operating motor. For connection to power source terminal of the blower fan, please be careful not to deform the terminal.

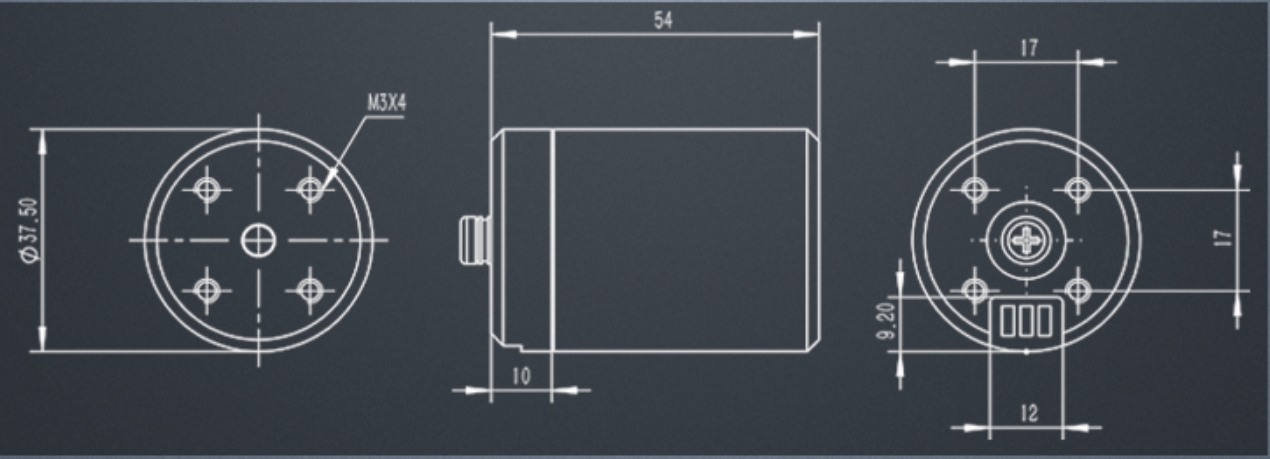

Dimension
