160W
32-300V
4.0kgf/3.2kgf
124mm/50mm
86.8mm/130mm
Features
● Applicable to 124-caliber AUV main thrusters with 0-6 sections.
● An integrated thruster is optional; this thruster can control and give feedback on the revolving speed of motors and angles of steering gears.
● Adjustable dome support undergoing hydrodynamic optimization can effectively reduce rolling moments.
●Steering wheels are designed to be collision proof.
● Optical fiber outlets are customizable.
● Optimization of efficiency, speed and noise, etc. is supported.
Parameters
Thrust forward at 2 knot 4.0kg
Thrust forward at 4 knot 3.2kg
Thrust forward at 6 knot 2.5kg
1900r/min
160W
32~300VDC
①±5V Analog voltage control
②PWM
③CAN
④RS485/RS422
①Analog voltage feedback
②Pulse feedback
③CAN
④RS485/RS422
Caliber 124mm
Length 350mm
Notes:Dimensions of the connector are excluded
0.5Nm
300°/S
土30°
7~12VDC
①PWM
②CAN
③RS485/RS422
①Analog voltage feedback
②Pulse feedback
③Reduction & torque (optional)
④“One for Four” control(optional)
Height 86.8mm
Width 130mm

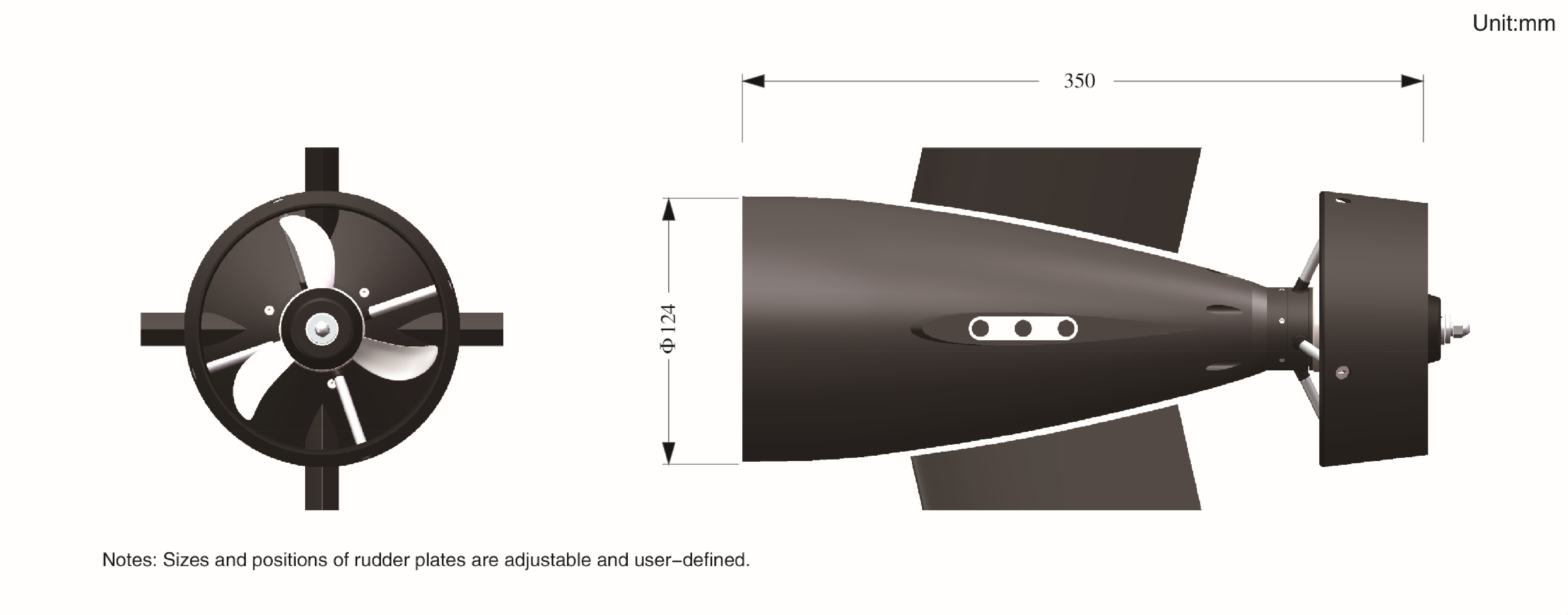

Dimension
Performance

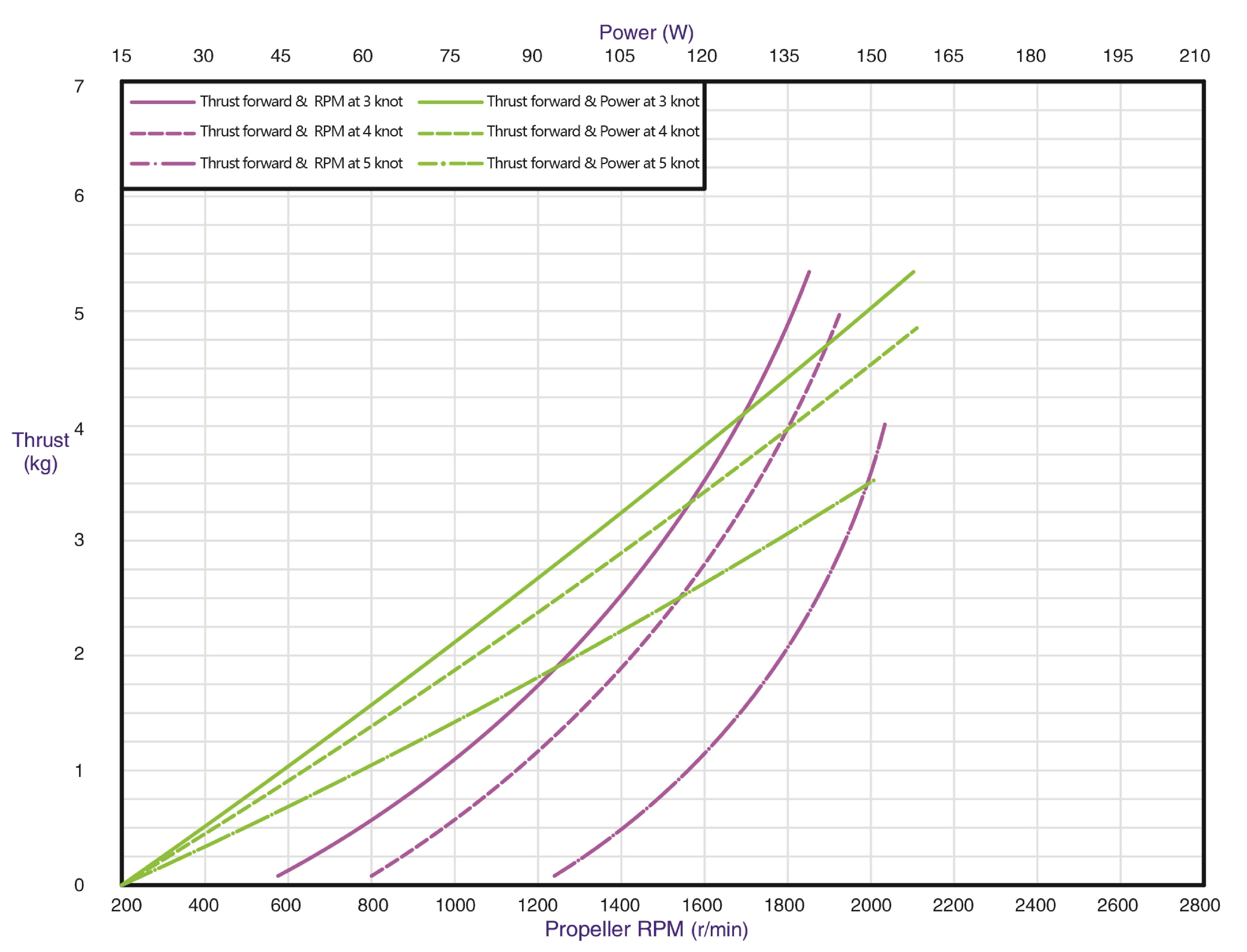

Thrust vs Propeller RPM curve & Thrust vs Input power curve

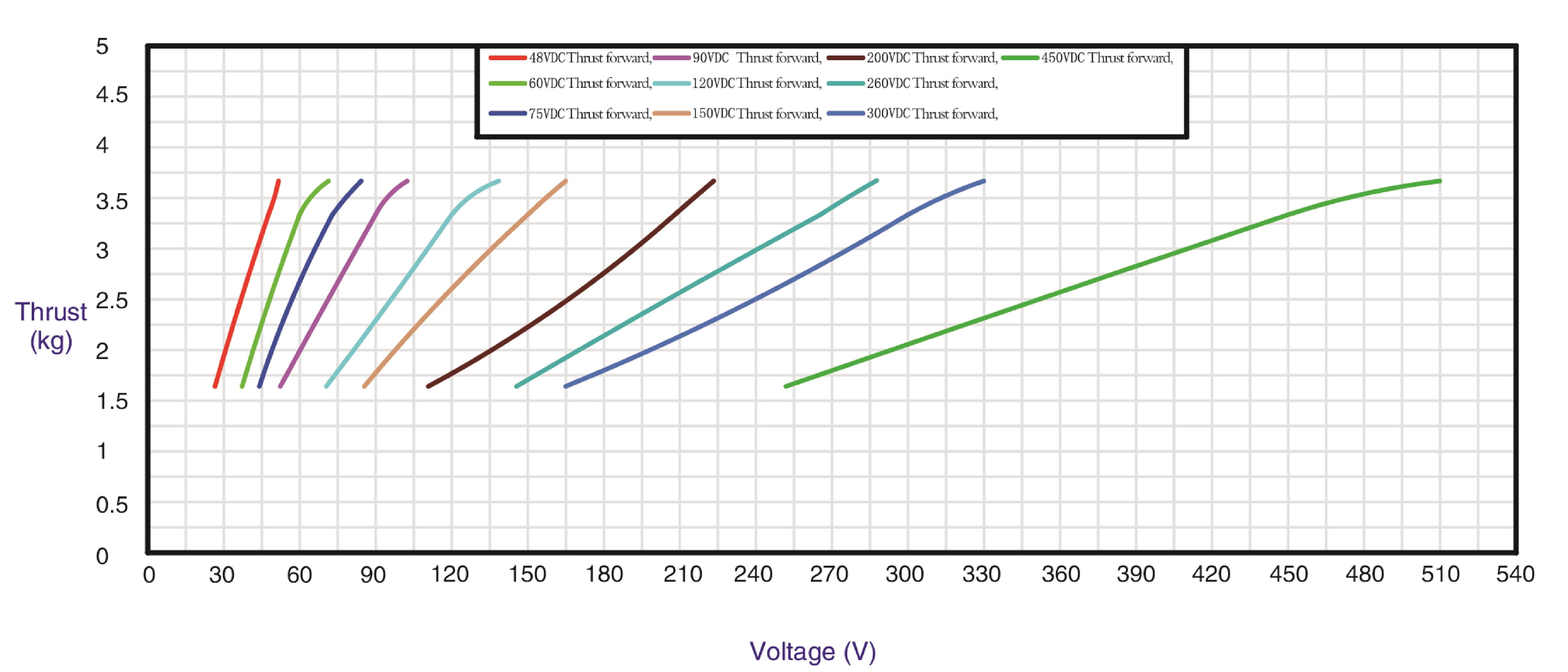

The performance curve of each voltage class propeller under different power supply conditions
Download
 | W124-6深海AUV动力段产品参数单页-中文版.pdf |
|
 | W124-6 Subsea AUV Power Sections Product Specification Sheet-English Version.pdf |  |
