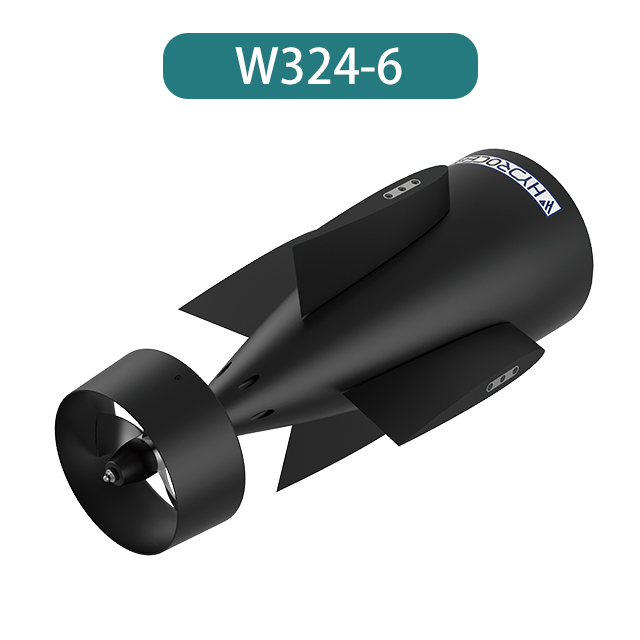

W324-6 AUV Power Sections

Hydrocean is experienced in subsea propulsion. We developed more than 40 standard products including Ducted thrusters, Rim-driven thrusters, AUV thrusters, Subsea electric steering gear, Subsea electric push rod, AUV power tail segment, etc., which can meet most of the needs of underwater vehicles. Welcome to contact us, talk to us about your AUV and ROV thruster selection.

  • 950W

  • 48-300V

  • 23kgf/18kgf

  • 227mm/340mm

  • 324mm/900mm

Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Features


AUV Power Sections W324-6 Features

line


●  Applicable to 324-caliber AUV main thrusters with 0-6 sections.

● An integrated thruster is optional; this thruster can control and give feedback on the revolving  speed of motors and angles of steering gears.

●  Adjustable dome support undergoing hydrodynamic optimization can effectively reduce rolling  moments.

●Steering wheels are designed to be collision proof.

● Optical fiber outlets are customizable.

● Optimization of efficiency, speed and noise, etc. is supported.

Parameters


AUV Power Sections W324-6 Parameters

line



Thruster Parameters





Thrust




Thrust forward at 2 knot 23kg

Thrust forward at 4 knot 18kg

Thrust forward at 6 knot 15kg




RPM/Power/ Voltage




880r/min

950W

48~300VDC




Control mode




①±5V Analog voltage control

②PWM

③CAN

④RS485/RS422







RPM control




①Analog voltage feedback

②Pulse feedback

③CAN

④RS485/RS422




Dimension



Caliber 324mm Length 900mm

Notes:Dimensions of the connector  are excluded






Steering Engine Parameters





Torque / RPM / Angle




20Nm

90°/S

±30°





Steering Engine Voltage



24~48VDC




Control / RPM Mode




①PWM

②CAN

③RS485/RS422






Auxiliary Functions




①Analog voltage feedback

②Pulse feedback

③Reduction & torque (optional)

④“One for Four” control(optional)




Rudder Plate Dimension


Height 227mm Width 340mm

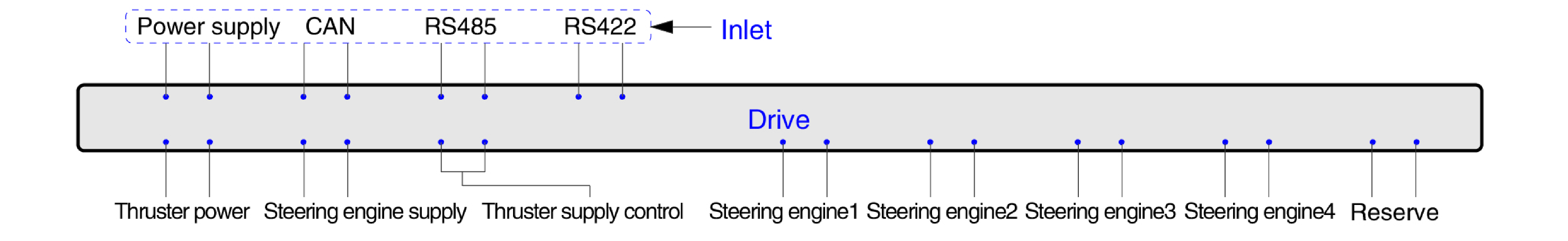

Wiring Instruction



W324-6 (4)


Dimension

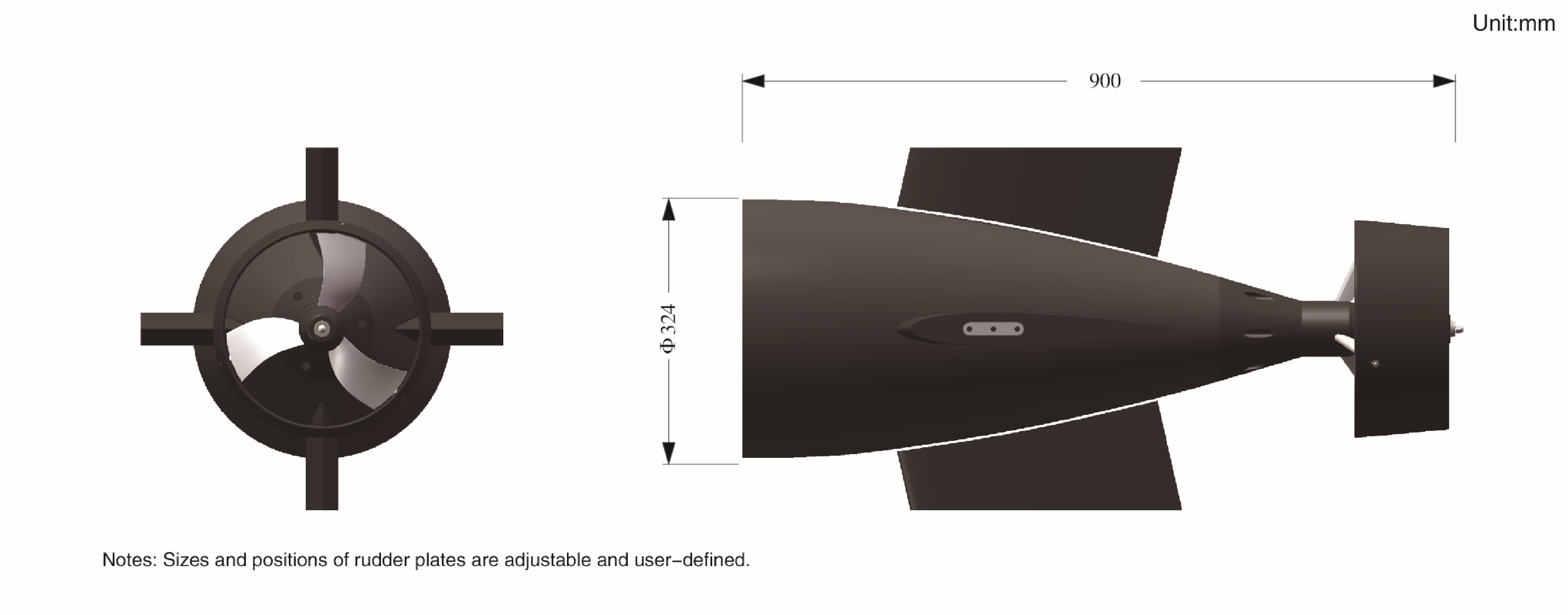

AUV Power Sections W324-6 Dimension

line


Dimension



W324-6 (1)




Performance


AUV Power Sections W324-6 Peformance

line

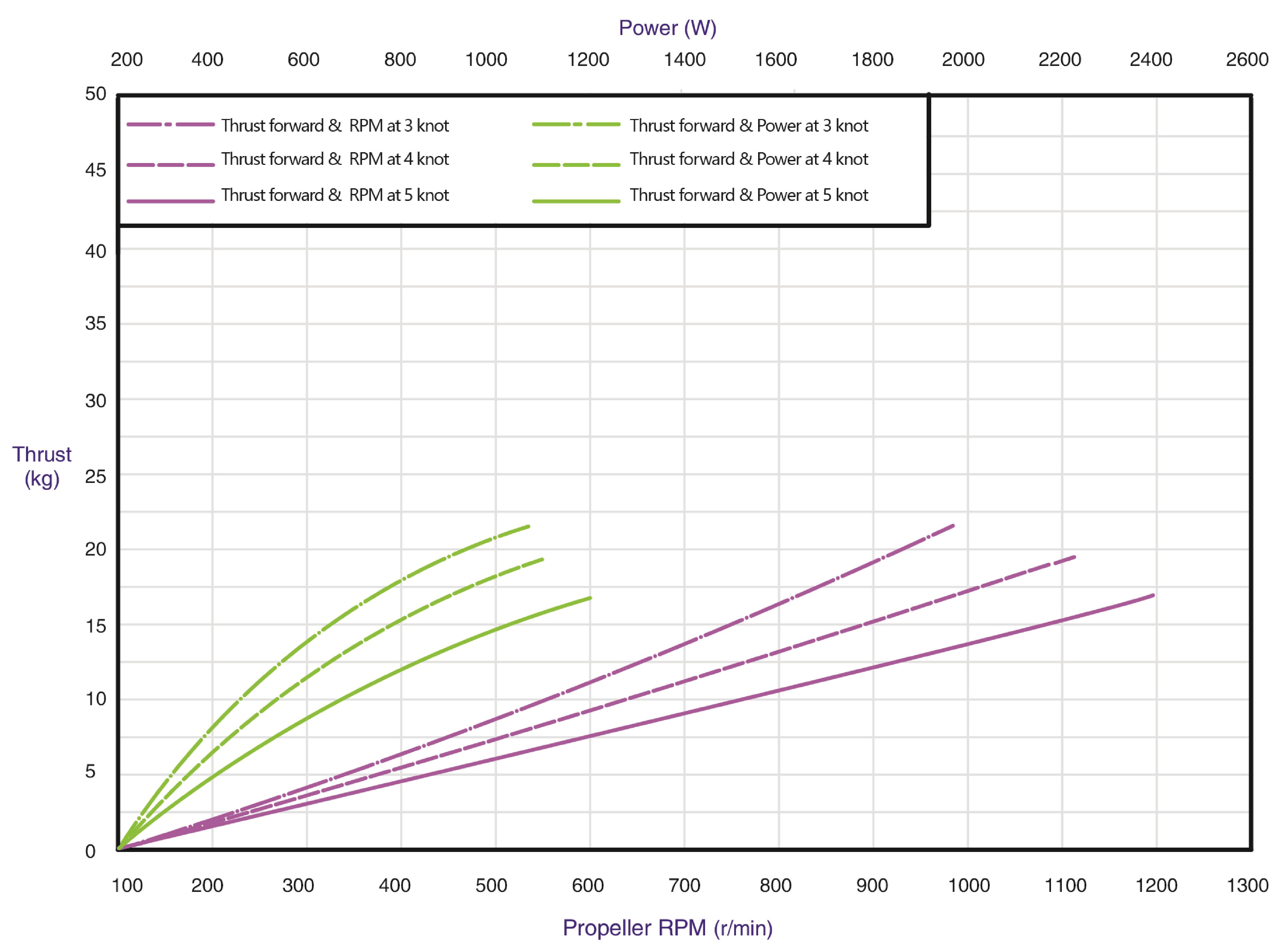

Thrust vs Propeller RPM curve & Thrust vs Input power curve




尺寸内页-02(1)

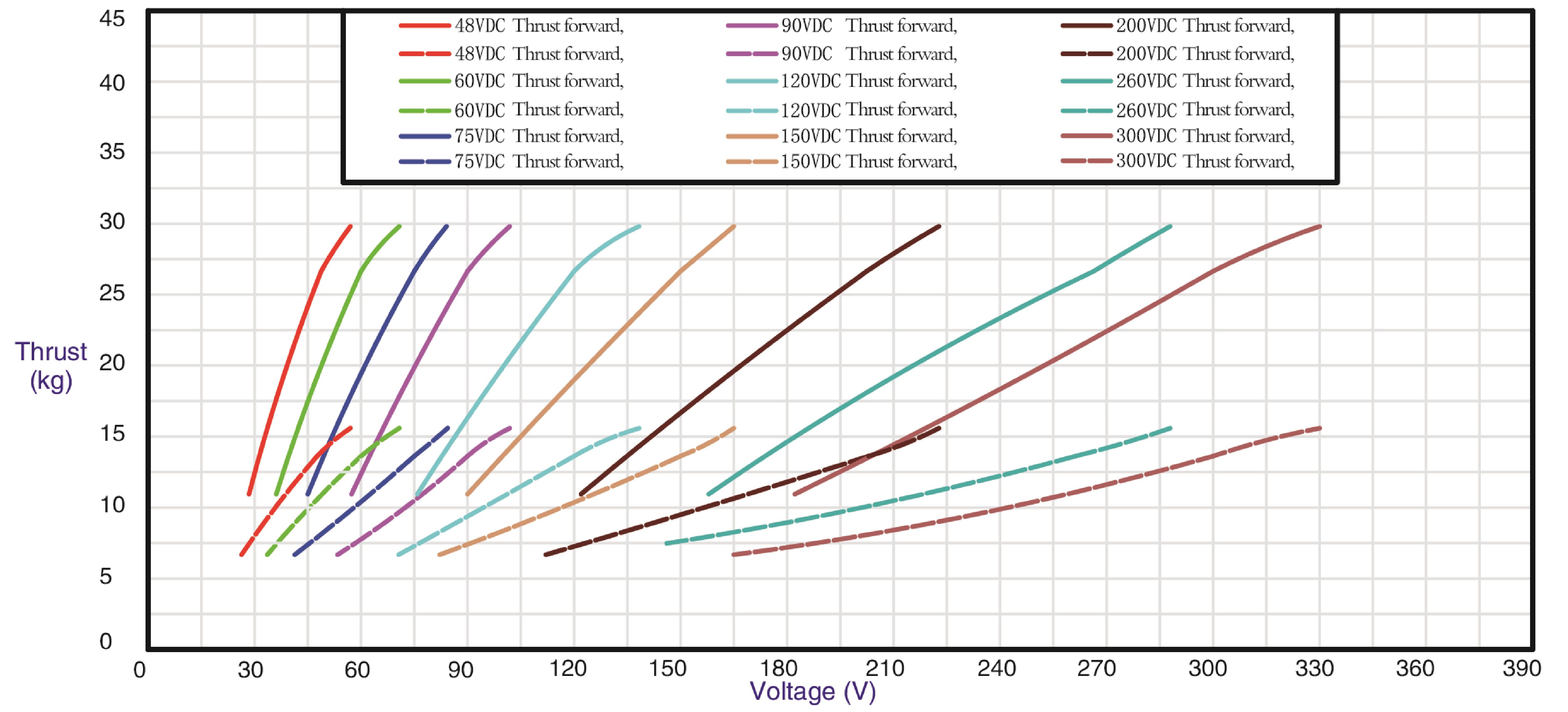

The performance curve of each voltage class propeller under different power supply conditions




尺寸内页-03(1)



Download



AUV Power Sections W324-6 Download

line


Performance-curves-of-thrusters-with-different-voltage-levels-under-different-power-supply-conditions    W324-6深海AUV动力段产品参数单页-中文版.pdf

download (1)
Performance-curves-of-thrusters-with-different-voltage-levels-under-different-power-supply-conditions    W324-6 Subsea AUV Power Sections Product Specification Sheet-English Version.pdf download (1)
