500W
24-300V
7kgf/6kgf
150mm/400mm
105mm/158mm
Features
● Applicable to 150-caliber AUV main thrusters with 0-6 sections.
● An integrated thruster is optional; this thruster can control and give feedback on the revolving speed of motors and angles of steering gears.
● Adjustable dome support undergoing hydrodynamic optimization can effectively reduce rolling moments.
●Steering wheels are designed to be collision proof.
● Optical fiber outlets are customizable.
● Optimization of efficiency, speed and noise, etc. is supported.
Parameters
Thrust forward at 2 knot 7kg
Thrust forward at 4 knot 6kg
Thrust forward at 6 knot 5kg
2950r/min
500W
24~300VDC
①±5V Analog voltage control
②PWM
③CAN
④RS485/RS422
①Analog voltage feedback
②Pulse feedback
③CAN
④RS485/RS422
Caliber 150mm
Length 400mm
Notes:Dimensions of the connector are excluded
2Nm
300°/S
±30°
12~24VDC
①PWM
②CAN
③RS485/RS422
①Analog voltage feedback
②Pulse feedback
③Reduction & torque (optional)
④“One for Four” control(optional)
Height 105mm Width 158mm

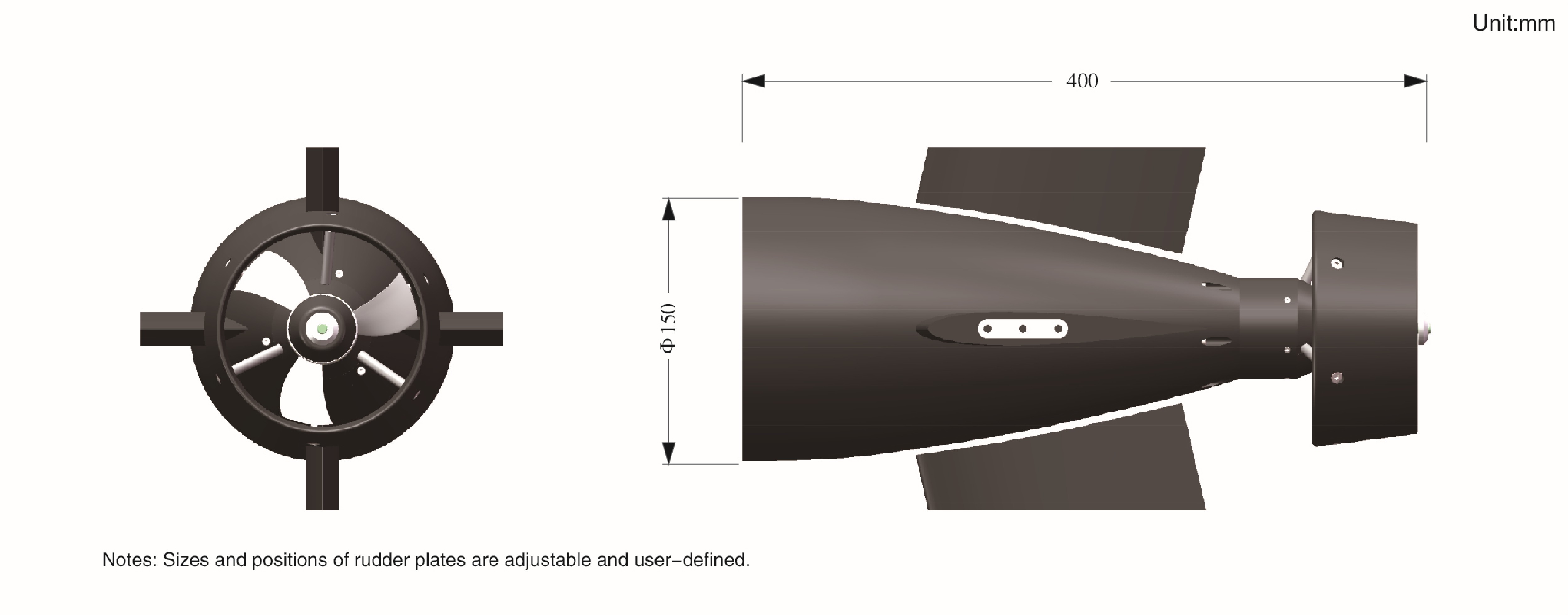

Dimension

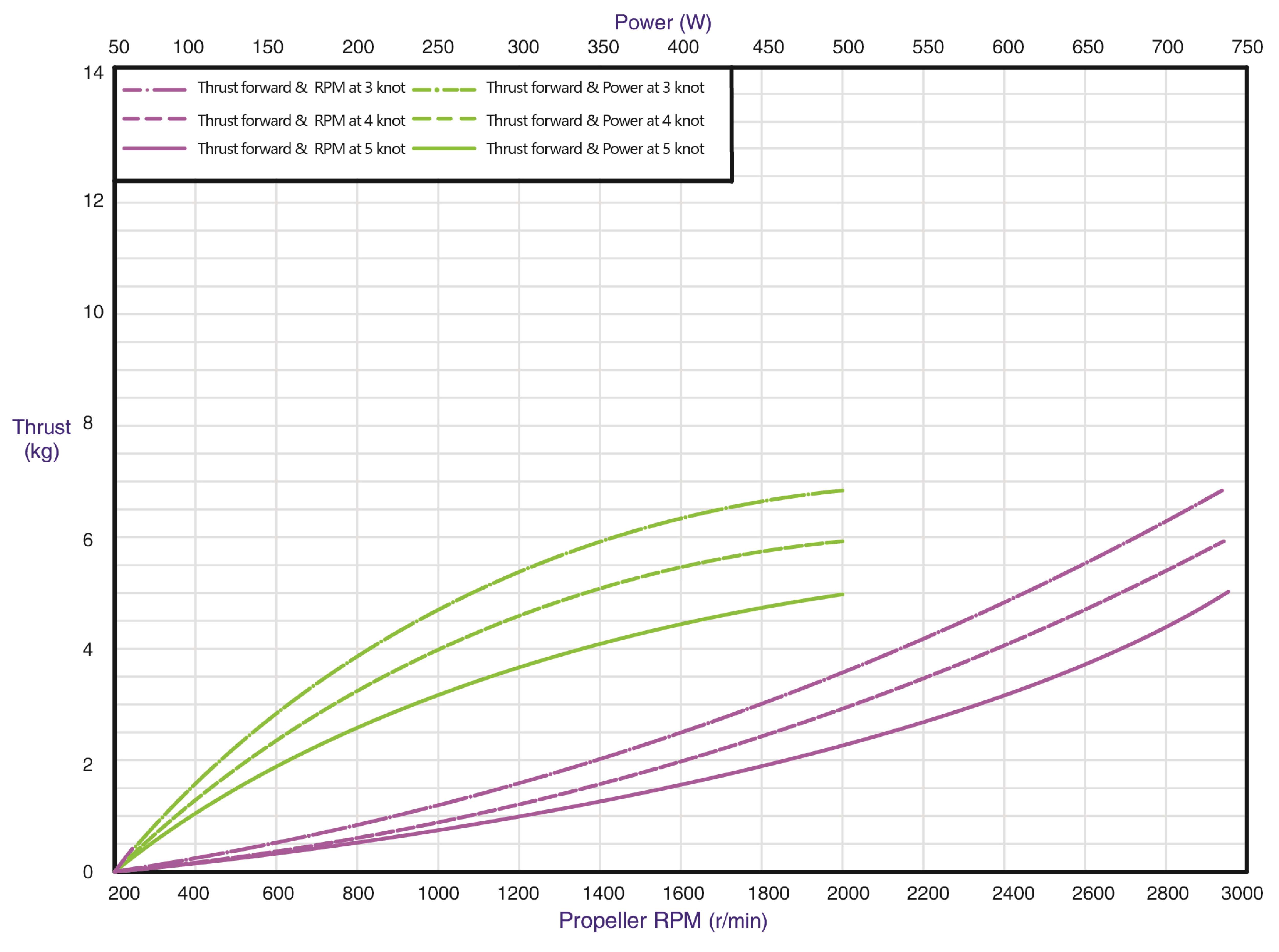

Performance

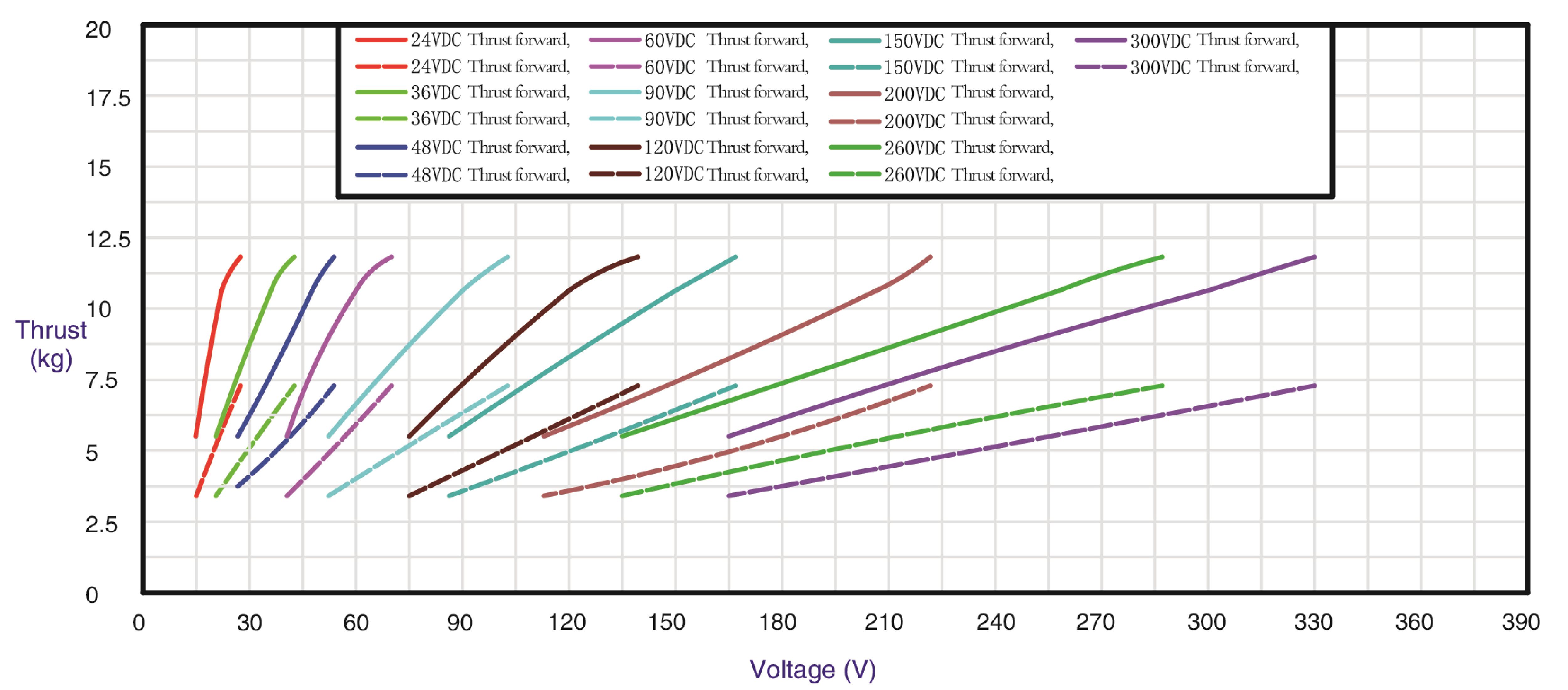

The performance curve of each voltage class propeller under different power supply conditions
