4500W
260-330V
90kgf/75kgf
533mm/1500mm
373mm/560mm
Features
● Applicable to 533-caliber AUV main thrusters with 0-6 sections.
● An integrated thruster is optional; this thruster can control and give feedback on the revolving speed of motors and angles of steering gears.
● Adjustable dome support undergoing hydrodynamic optimization can effectively reduce rolling moments.
●Steering wheels are designed to be collision proof.
● Optical fiber outlets are customizable.
● Optimization of efficiency, speed and noise, etc. is supported.
Parameters
Thrust forward at 2 knot 90kg
Thrust forward at 4 knot 75kg
Thrust forward at 6 knot 55kg
800r/min
4.5KW
260~330VDC
①±5V Analog voltage control
②PWM
③CAN
④RS485/RS422
①Analog voltage feedback
②Pulse feedback
③CAN
④RS485/RS422
Caliber 533mm
Length 1500mm
Notes:Dimensions of the connector are excluded
30Nm
90°/S
±30°
24~48VDC
①PWM
②CAN
③RS485/RS422
①Analog voltage feedback
②Pulse feedback
③Reduction & torque (optional)
④“One for Four” control(optional)
Height 373mm
Width 560mm

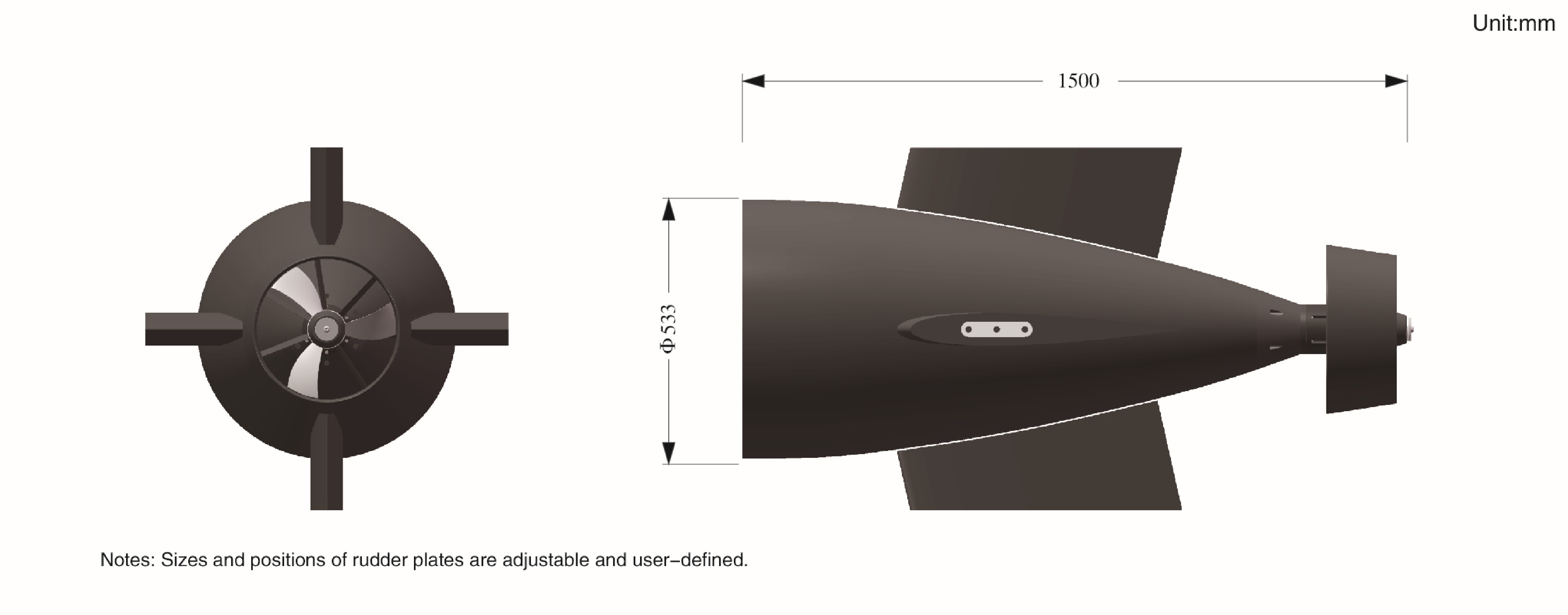

Dimension

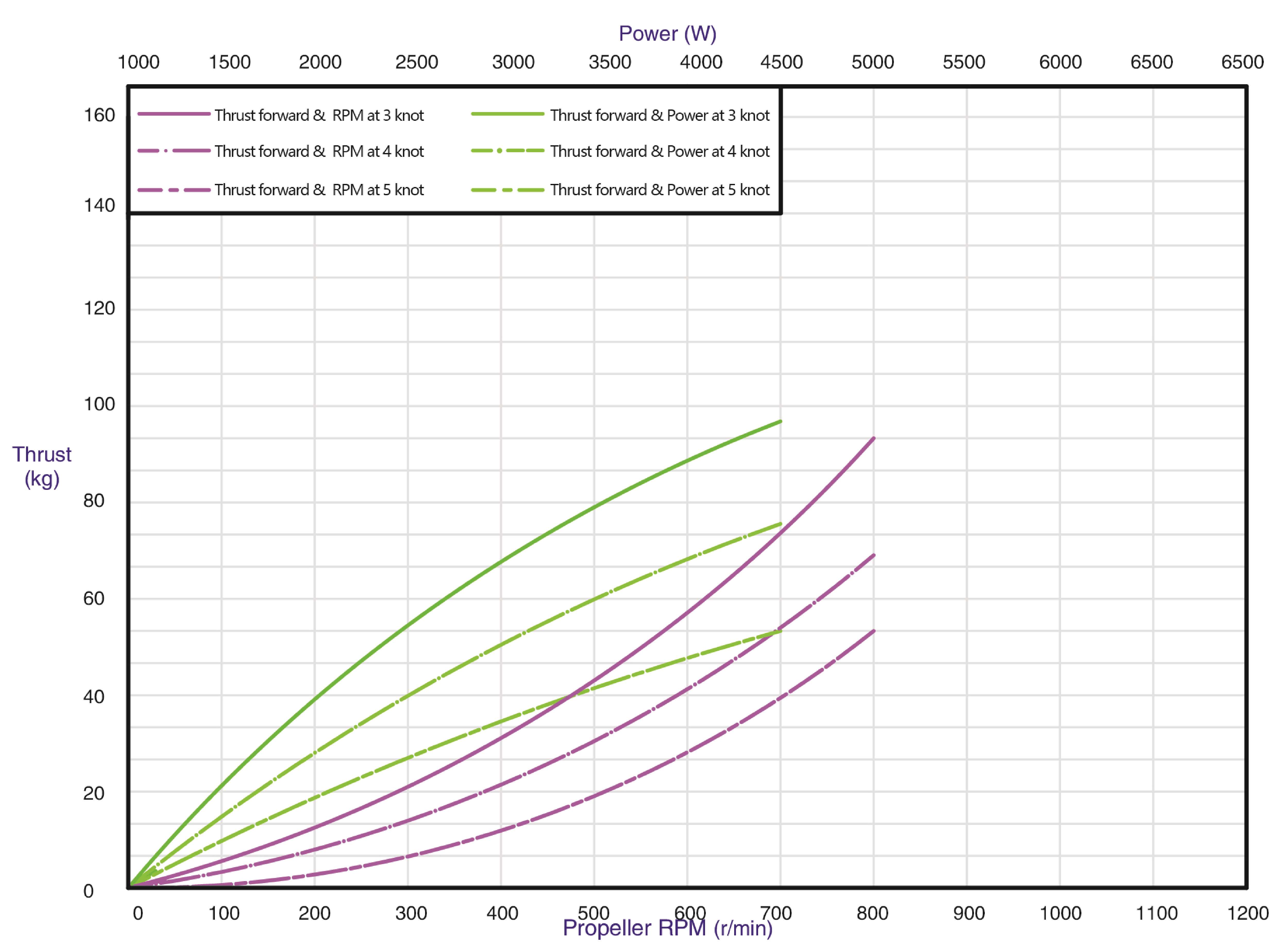

Performance

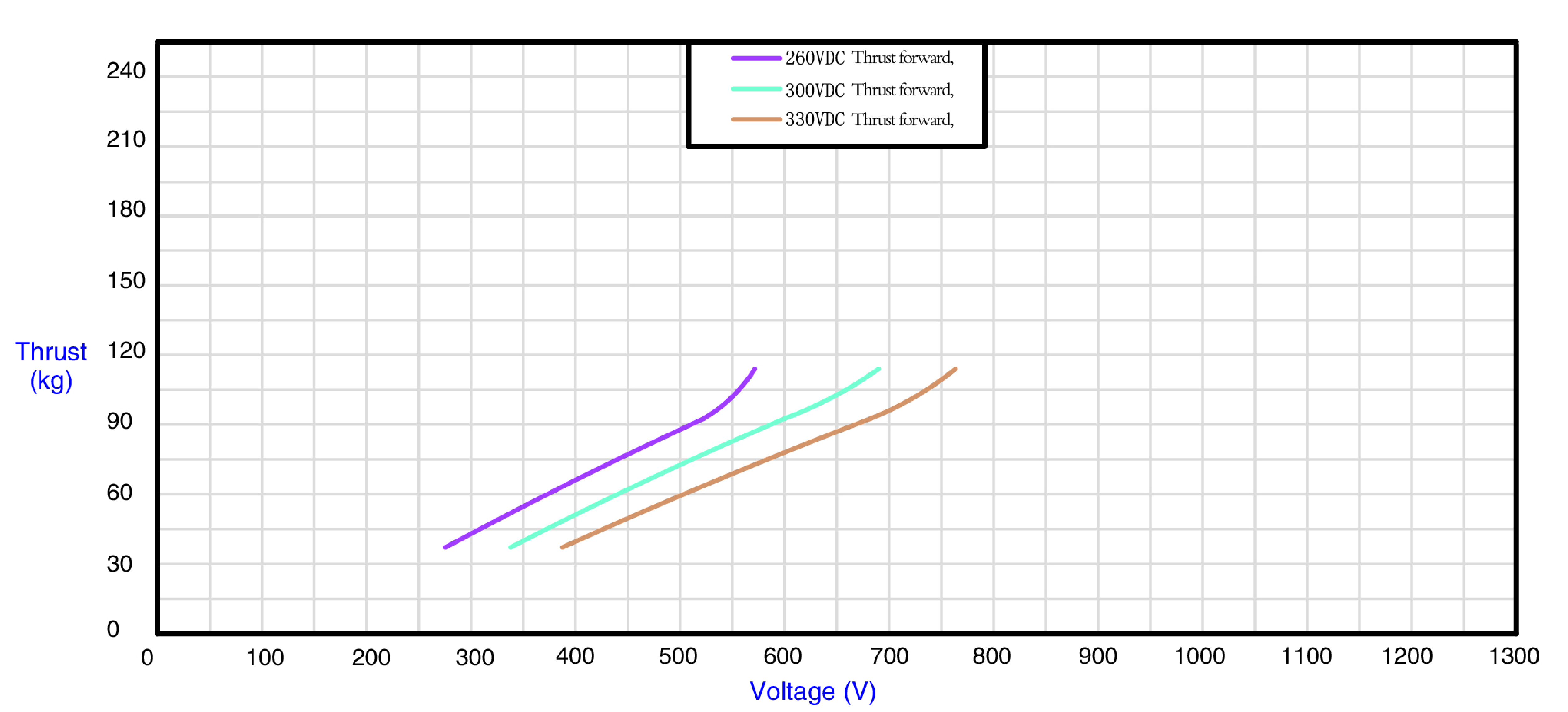

The performance curve of each voltage class propeller under different power supply conditions
